G3R-I/O

I/O Solid State Relays

G3R-I/O

SSR with Plug-in Terminals The Same Shape as the G2R-1-S Power Relays

last update: November 10, 2022

Input Modules for Microloads

Insulation method	Operation indicator	Response speed	Applicable load	Input rated voltage	Scheduled to be no longer available to order after March 2023	Recommended Replacement/certified for safety standard products
Photocoupler	Yes	---	4 to 32 VDC 0.1 to 100 mA	100 to 240 VAC	G3R-IAZR1SN AC100-240	G3R-IAZR1SN-UTU AC100-240
		High- speed		5 VDC	G3R-IDZR1SN DC5	G3R-IDZR1SN-UTU DC5
		High- speed		12 to 24 VDC	G3R-IDZR1SN DC12-24	G3R-IDZR1SN-UTU DC12-24
		Low- speed		5 VDC	G3R-IDZR1SN-1 DC5	G3R-IDZR1SN-1-UTU DC5
		Low- speed		12 to 24 VDC	G3R-IDZR1SN-1 DC12-24	G3R-IDZR1SN-1-UTU DC12-24

Output Modules for Standard Loads

Insulation method	Operation indicator	Zero cross function	Applicable load	Input rated voltage	Scheduled to be no longer available to order after March 2023	Recommended Replacement/certified for safety standard products
Phototriac	Yes	Yes	2 A at 100 to 240 VAC	5 to 24 VDC	G3R-OA202SZN DC5-24	G3R-OA202SZN-UTU DC5-24
Phototriac		No	2 A at 100 to 240 VAC		G3R-OA202SLN DC5-24	G3R-OA202SLN-UTU DC5-24
Photocoupler		---	2 A at 5 to 48 VDC		G3R-ODX02SN DC5-24	G3R-ODX02SN-UTU DC5-24
Photocoupler		---	1.5 A at 48 to 200 VDC		G3R-OD201SN DC5-24	G3R-OD201SN-UTU DC5-24

Accessories (Order Separately)

Connection Sockets

Classification	Terminal type	Model
Front-mounting	Screw terminals	P2RFZ-05
	Screw terminals	P2RF-05
	Screw terminals (finger protection structure)	P2RFZ-05-E
	Push-In Plus terminal blocks	P2RF-05-PU
Back-mounting	Relays with PCB Terminals	P2R-05P
	Relays with PCB Terminals	P2R-057P
	Solder terminals	P2R-05A

For Push-In Plus Terminal Block Sockets

Short Bars

Appli- cable sockets	Pitch	Applica- tion	Number of poles	L (Length)	Insulation color	Short Bars Model*1	Maxi- mum carry current
P2RF- 05-PU	7.75 mm	Bridging Output terminals	2	15.1	Red (R) Blue (S) Yellow(Y)	PYDN-7.75-020[]	20 A
			3	22.85		PYDN-7.75-030[]
			4	30.6		PYDN-7.75-040[]
			20	154.6		PYDN-7.75-200[]
	15.5 mm	Input terminals	8	115.55		PYDN-15.5-080[]

*1. Replace the box ([]) in the model number with the code for the covering color. []Color selection: R = Red, S = Blue,
Y = Yellow

Labels

Applicable sockets	Model
P2RF-05-PU	XW5Z-P4.0LB1 (1 sheet/60 pieces)

For Screw Terminal Sockets

Short Bars

Applicable sockets	Pitch	Dimensions (mm)	Number of poles	Insu- ation color	Short Bars Model	Maximum carry current	Minimum order (set)
P2RFZ-05-E	15.7 mm		10	Blue (S)	P2DN-15.7-100S	20 A	1
P2RFZ-05	19.4 mm		10	Blue (S)	P2DN-19.4-100S	20 A	1

Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
2. Use the Short Bars for crossover wiring within one Socket or between Sockets.
3. Cannot be used on the P2RF-05.
4. Use the short bars on the lower section of the socket.

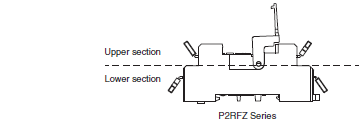

When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
(see the figure below).
Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.

* One set (order unit) contains 10 short bars and 20 caps.

Accessories for Short Bars (P2DN)

Cap

Short Bars Models	Appearance	Dimensions (mm)	Model
P2DN-19.4-100S P2DN-15.7-100S			P2DN-CP100

For Screw Terminal Sockets (P2RFZ-05)

Terminal covers

Applicable sockets	Appearance	Model	Minimum order (set)
P2RFZ-05		P2CZ-C

Note: 1. These covers cannot be used for P2RF-05.
2. Use these covers in a combination with P2RFZ-05.
3. Do not install short bars (optional) on the upper section (see the figure below).
Short bars may interfere with the terminal cover, making the terminal cover unusable.

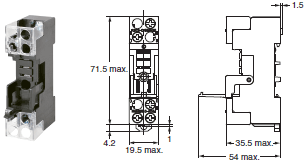

Dimensions with terminal cover

P2RFZ-05

Labels

Applicable sockets	Model	Minimum order (sheet) (quantity per sheet)
P2RFZ-05-E	XW5Z-P2.5LB1	5 1 sheet (72 pieces)

Note: This label cannot be applied on sockets other than P2RFZ-05-E.

DIN Track Mounting Parts

Classification/division	Type		Appearance	Model
For front-mounting	DIN Tracks	Shallow type, total length: 1 m		PFP-100N
		Shallow type, total length: 0.5 m		PFP-50N
		Deep type, total length: 1 m		PFP-100N2
	End Plate			PFP-M
	Spacer			PFP-S
For back-mounting	Mounting Plates for Sockets * (For 5 Sockets)		---	P2R-P

* Used to mount several P2R-05A Connecting Sockets side by side.
