Temperature Controller (48 x 48 mm)


Ideal for heater control, these Temperature Controllers offer the highest control performance at surprisingly low cost! Easy to Read with One of the Largest Character Displays Anywhere.

Software Download

You can download and install ThermoMini Software.

(Unit: mm)


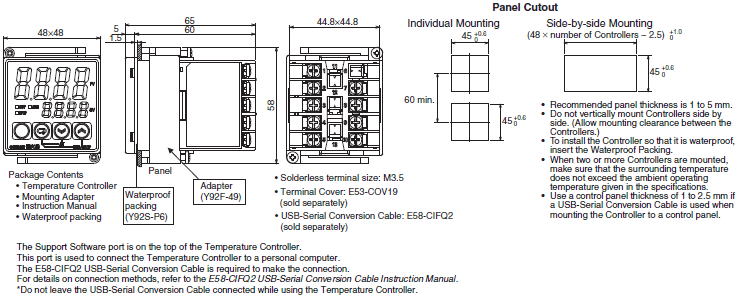

E5CB Dimensions 1

Accessories (Order Separately)

Terminal Cover

E5CB Dimensions 3

Note: You cannot use the following Terminal Covers: E53-COV10 and E53-COV17. If you use the E53-COV19 Terminal Cover, you will not be able to connect two crimp terminals to the same terminal on the terminal block.

Waterproof Packing

E5CB Dimensions 4

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.

Unit Labels

E5CB Dimensions 5

The Unit Labels for the Digital Panel Meter are used.
Use either the °C or °F label from the sheet.

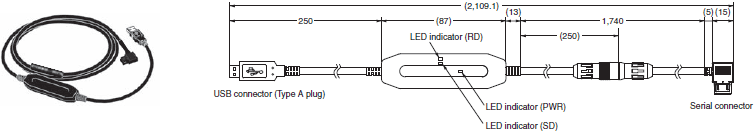

USB-Serial Conversion Cable

E5CB Dimensions 6


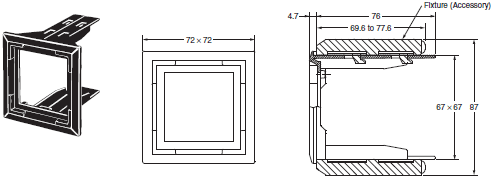

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B[].
           2. Only black is available.
           3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-
                Serial Conversion Cable to make the settings, do so before you mount the Temperature Controller in the panel.
           4. You cannot use this Adapter together with the Y92F-49 Adapter that is provided with the E5CB Temperature


E5CB Dimensions 8

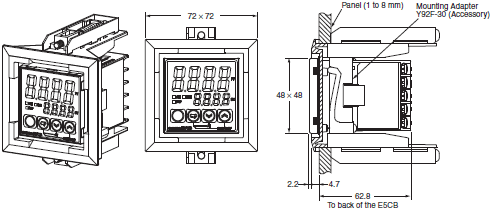

Mounted to E5CB

E5CB Dimensions 9

Front Covers

Front Covers are available.
Use them in the following cases.
• To protect the setting panel from dust and dirt
• To prevent inadvertently touching the setting panel and accidentally changing the settings
• To help protect the front panel from water drops
• To help protect the Temperature Controller from static electricity

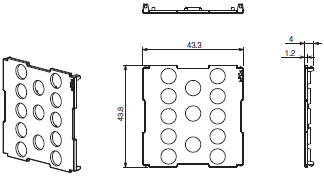

E5CB Dimensions 11

Note: 1. The Y92A-48B Front Cover is made from hard plastic. It must be removed to change the settings.
               The Y92A-48D Front Cover is made from PVC. You can press the front of the Front Cover to change the settings.
               However, the Front Cover makes it more difficult to change the settings. Confirm applicability in advance.
           2. The Soft Front Cover may deteriorate, shrink, or harden due to the application environment. We recommend
                replacing it periodically.

DIN Track Mounting Adapter


Note: This Adapter cannot be used together with the Terminal Cover.
           Remove the Terminal Cover to use the Adapter.

E5CB Dimensions 13

Mounted to E5CB

E5CB Dimensions 14

Watertight Cover

E5CB Dimensions 15
