WL-N / WLG

Two-circuit Limit Switch

WL-N / WLG

Two-circuit limit switches that can be selected to match the operating environment and application WL-N/Basic models, WLG/High-sensitivity and High-precision models

Item list of WL-N / WLG

General-purpose Switches
Environment-resistant Limit Switches
Spatter-prevention Switches
Long-life Switches
Common Accessories (Sold Separately)

last update: April 1, 2025

General-purpose Switches

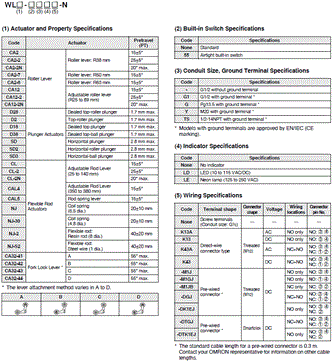

Model Number Structure

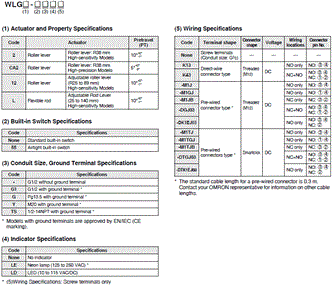

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

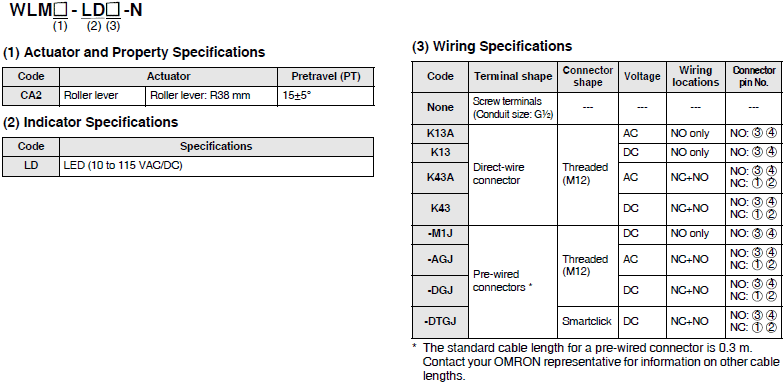

Basic models

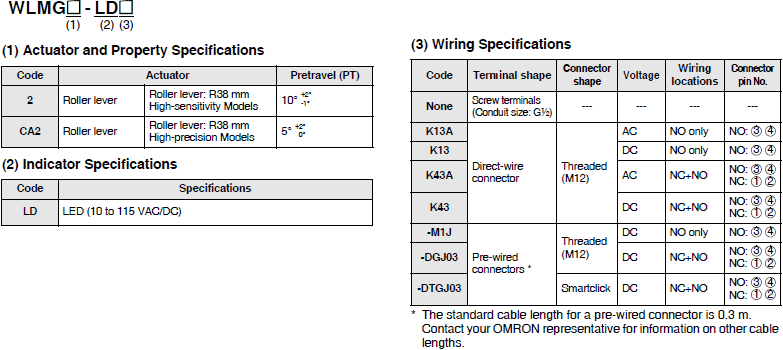

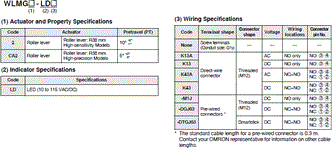

High-sensitivity and High-precision Models

Ordering Information

Roller Lever

Standard built-in switch

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Roller lever: R38 mm	Screw terminals (Conduit size: G½)	15±5°	WLCA2-N	WLCA2-LD-N	WLCA2-LE-N
		25±5°	WLCA2-2-N	WLCA2-2LD-N	WLCA2-2LE-N
		20° max.	WLCA2-2N-N	WLCA2-2NLD-N	WLCA2-2NLE-N
		10°+2°,-1°	WLG2	WLG2-LD	WLG2-LE
		5°+2°, 0°	WLGCA2	WLGCA2-LD	WLGCA2-LE
Roller lever: R50 mm		15±5°	WLCA2-7-N	WLCA2-7LD-N	WLCA2-7LE-N
		25±5°	---	---	---
		20° max.	---	---	---
Roller lever: R63 mm		15±5°	WLCA2-8-N	WLCA2-8LD-N	WLCA2-8LE-N
		25±5°	---	---	---
		20° max.	---	---	---
Adjustable roller lever (R25 to 89 mm)		15±5°	WLCA12-N	WLCA12-LD-N	WLCA12-LE-N
		25±5°	WLCA12-2-N	WLCA12-2LD-N	WLCA12-2LE-N
		20° max.	WLCA12-2N-N	WLCA12-2NLD-N	WLCA12-2NLE-N
		10°+2°,-1°	WLG12	WLG12-LD	WLG12-LE

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
Roller lever: R38 mm	Direct- wire con- nector	15±5°	Threaded (M12)	AC	NO only	NO: ③④	WLCA2-LDK13A-N
				DC	NO only	NO: ③④	WLCA2-LDK13-N
				AC	NC+NO	NO: ③④ NC: ①②	WLCA2-LDK43A-N
				DC	NC+NO	NO: ③④ NC: ①②	WLCA2-LDK43-N
		10° +2°,-1°			NO only	NO: ③④	WLG2-LDK13
		10° +2°,-1°			NC+NO	NO: ③④ NC: ①②	WLG2-LDK43
		5° +2°, 0°			NO only	NO: ③④	WLGCA2-LDK13
		5° +2°, 0°			NC+NO	NO: ③④ NC: ①②	WLGCA2-LDK43
Roller lever: R38 mm	Pre- wired con- nectors	15±5°	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-LD-M1J-N
					NO only	NO: ③④	WLCA2-LD-M1GJ-N
					NC only	NC: ③②	WLCA2-LD-M1JB-N
					NC+NO	NO: ③④ NC: ①②	WLCA2-LD-DGJ-N
					NO only	NO: ③④ NC: ②	WLCA2-LD-DK1EJ-N
			Smartclick		NC+NO	NO: ③④ NC: ①②	WLCA2-LD-DTGJ-N
			Smartclick		NO only	NO: ③④ NC: ②	WLCA2-LD-DTK1EJ-N
		10° +2°,-1°	Threaded (M12)		NO only	NO: ③④	WLG2-LD-M1J
					NO only	NO: ①④	WLG2-LD-M1GJ
					NC only	NC: ③②	WLG2-LD-M1JB
					NC+NO	NO: ③④ NC: ①②	WLG2-LD-DGJ03
					NO only	NO: ③④ NC: ②	WLG2-LD-DK1EJ03
			Smartclick		NO only	NO: ③④	WLG2-LD-M1TJ
					NO only	NO: ①④	WLG2-LD-M1TGJ
					NC only	NC: ③②	WLG2-LD-M1TJB
					NC+NO	NO: ③④ NC: ①②	WLG2-LD-DTGJ03
					NO only	NO: ③④ NC: ②	WLG2-LD-DTK1EJ03
		5°+2°, 0°	Threaded (M12)		NO only	NO: ③④	WLGCA2-LD-M1J
					NO only	NO: ①④	WLGCA2-LD-M1GJ
					NC only	NC: ③②	WLGCA2-LD-M1JB
					NC+NO	NO: ③④ NC: ①②	WLGCA2-LD-DGJ03
			Smartclick		NC+NO	NO: ③④ NC: ①②	WLGCA2-LD-DTGJ03
			Smartclick		NO only	NO: ③④ NC: ②	WLGCA2-LD-DTK1EJ03

Note: 1. The photo shows a typical model.
2. The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON
when operating (NC wiring))

Airtight Built-in Switch

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Roller lever: R38 mm	Screw terminals (Conduit size: G½)	15±5°	WLCA2-55-N	WLCA2-55LD-N	WLCA2-55LE-N
		25±5°	WLCA2-255-N	WLCA2-255LD-N	WLCA2-255LE-N
		20° max.	WLCA2-2N55-N	WLCA2-2N55LD-N	WLCA2-2N55LE-N
		10°+2°,-1°	WLG2-55	WLG2-55LD	WLG2-55LE
		5°+2°, 0°	WLGCA2-55	WLGCA2-55LD	WLGCA2-55LE
Adjustable roller lever (R25 to 89 mm)	Screw terminals (Conduit size: G½)	15±5°	WLCA12-55-N	WLCA12-55LD-N	WLCA12-55LE-N
		25±5°	---	---	---
		20° max.	---	---	---
		10°+2°,-1°	---	---	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
Roller lever: R38 mm	Direct- wire con- nector	15±5°	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-55LDK13-N
		15±5°			NC+NO	NO: ③④ NC: ①②	WLCA2-55LDK43-N
		10° +2°,-1°			NO only	NO: ③④	WLG2-55LDK13
		10° +2°,-1°			NC+NO	NO: ③④ NC: ①②	WLG2-55LDK43
		5°+2°, 0°			NO only	NO: ③④	WLGCA2-55LDK13
		5°+2°, 0°			NC+NO	NO: ③④ NC: ①②	WLGCA2-55LDK43
Roller lever: R38 mm	Pre- wired con- nectors	15±5°	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-55LD-M1J-N
					NO only	NO: ①④	WLCA2-55LD-M1GJ-N
					NC only	NC: ③②	WLCA2-55LD-M1JB-N
					NC+NO	NO: ③④ NC: ①②	WLCA2-55LD-DGJ-N
					NO only	NO: ③④ NC: ②	WLCA2-55LD-DK1EJ-N
			Smartclick		NC+NO	NO: ③④ NC: ①②	WLCA2-55LD-DTGJ-N
			Threaded (M12)		NO only	NO: ③④	WLD2-55LD-M1J
					NO only	NO: ①④	WLG2-55LD-M1GJ
					NC only	NC: ③②	WLG2-55LD-M1JB
		10° +2°,-1°			NC+NO	NO: ③④ NC: ①②	WLG2-55LD-DGJ03
					NO only	NO: ③④ NC: ②	WLG2-55LD-DK1EJ03
			Smartclick		NO only	NO: ①④	WLG2-55LD-M1TGJ
					NC only	NC: ③②	WLG2-55LD-M1TJB
					NC+NO	NO: ③④ NC: ①②	WLG2-55LD-DTGJ03

Plunger Actuators

Standard built-in switch

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Sealed top-roller plunger	Screw terminals (Conduit size: G½)	1.7 mm max.	WLD28-N	WLD28-LD-N	WLD28-LE-N
Top-roller plunger			WLD2-N	WLD2-LD-N	WLD2-LE-N
Sealed top plunger			WLD18-N	WLD18-LD-N	WLD18-LE-N
Sealed top-ball plunger			WLD38-N	WLD38-LD-N	WLD38-LE-N
Horizontal plunger		2.8 mm max.	WLSD-N	WLSD-LD-N	WLSD-LE-N
Horizontal-roller plunger			WLSD2-N	WLSD2-LD-N	WLSD2-LE-N
Horizontal-ball plunger			WLSD3-N	WLSD3-LD-N	WLSD3-LE-N

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
Sealed top-roller plunger	Direct-wire connector type	1.7 mm max.	Threaded (M12)	DC	NO only	NO: ③④	WLD28-LDK13-N
	Direct-wire connector type				NC+NO	NO: ③④ NC: ①②	WLD28-LDK43-N
	Pre-wired connector type				NO only	NO: ③④	WLD28-LD-M1J-N
					NO only	NO: ①④	WLD28-LD-M1GJ-N
					NC+NO	NO: ③④ NC: ①②	WLD28-LD-DGJ-N
					NO only	NO: ③④ NC: ②	WLD28-LD-DK1EJ-N

Note: The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to
light-ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON
when operating (NC wiring))

Airtight Built-in Switch

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Sealed top-roller plunger	Screw terminals (Conduit size: G½)	1.7 mm max.	WLD28-55-N	WLD28-55LD-N	WLD28-55LE-N
Top-roller plunger		1.7 mm max.	WLD2-55-N	WLD2-55LD-N	WLD2-55LE-N
Horizontal plunger		2.8 mm max.	WLSD-55-N	WLSD-55LD-N	---
Horizontal-roller plunger		2.8 mm max.	WLSD2-55-N	WLSD2-55LD-N	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Actuator	Terminal shape	Pretravel (PT)	Connector shape	Volt- age	Wiring locations	Connector pin No.	Model
Sealed top-roller plunger	Direct-wire connector type	1.7 mm max.	Threaded (M12)	DC	NO only	NO: ③④	WLD28-55LDK13-N
	Direct-wire connector type				NC+NO	NO: ③④ NC: ①②	WLD28-55LDK43-N
	Pre-wired connectors type				NO only	NO: ③④	WLD28-55LD-M1J-N
					NO only	NO: ①④	WLD28-55LD-M1GJ-N
					NC+NO	NO: ③④ NC: ①②	WLD28-55LD-DGJ-N
					NO only	NO: ③④ NC: ②	WLD28-55LD-DK1EJ-N

Flexible Rod

Standard built-in switch

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Adjustable rod lever: (25 to 140 mm)	Screw terminals (Conduit size: G½)	15±5°	WLCL-N	WLCL-LD-N	WLCL-LE-N
		25±5°	WLCL-2-N	WLCL-2LD-N	WLCL-2LE-N
		20° max.	WLCL-2N-N	WLCL-2NLD-N	WLCL-2NLE-N
		10°+2°,-1°	WLGL	WLGL-LD	WLGL-LE
Adjustable rod lever: (350 to 380 mm)		15±5°	WLCAL4-N	WLCAL4-LD-N	WLCAL4-LE-N
		25±5°	---	---	---
		20° max.	---	---	---
Rod spring lever		15±5°	WLCAL5-N	WLCAL5-LD-N	WLCAL5-LE-N
		25±5°	---	---	---
		20° max.	---	---	---
Coil spring (6.5 dia.)		20±10 mm	WLNJ-N	WLNJ-LD-N	WLNJ-LE-N
Coil spring (4.8 dia.)		20±10 mm	WLNJ-30-N	WLNJ-30LD-N	WLNJ-30LE-N
Flexible rod		40±20 mm	WLNJ-2-N	WLNJ-2LD-N	WLNJ-2LE-N
Flexible rod: Steel wire (1 dia.)		40±20 mm	WLNJ-S2-N	WLNJ-S2LD-N	WLNJ-S2LE-N

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Airtight Built-in Switch Specifications

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Adjustable rod lever: 25 to 140 mm	Screw terminals (Conduit size: G½)	15±5°	WLCL-55-N	WLCL-55LD-N	---
		25±5°	---	---	---
		20° max.	---	---	---
Coil spring (6.5 dia.)		20±10 mm	WLNJ-55-N	WLNJ-55LD-N	---
Flexible rod: Resin rod (8 dia.)		40±20 mm	WLNJ-255-N	WLNJ-255LD-N	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Fork Lock Lever

Actuator	Terminal shape	Pretravel (PT)	Without operation indicator	With operation indicator *
			Without operation indicator	LED	Neon lamp
			Model	Model	Model
Fork Lock Lever A	Screw terminals (Conduit size: G½)	55° max.	WLCA32-41-N	WLCA32-41LD-N	WLCA32-41LE-N
Fork Lock Lever B		55° max.	WLCA32-42-N	---	WLCA32-42LE-N
Fork Lock Lever C		55° max.	WLCA32-43-N	WLCA32-43LD-N	WLCA32-43LE-N
Fork Lock Lever D		55° max.	WLCA32-44-N	---	---

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Environment-resistant Limit Switches

Model Number Structure

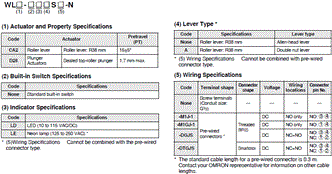

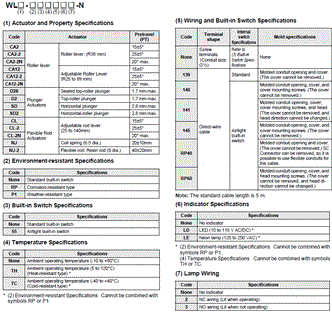

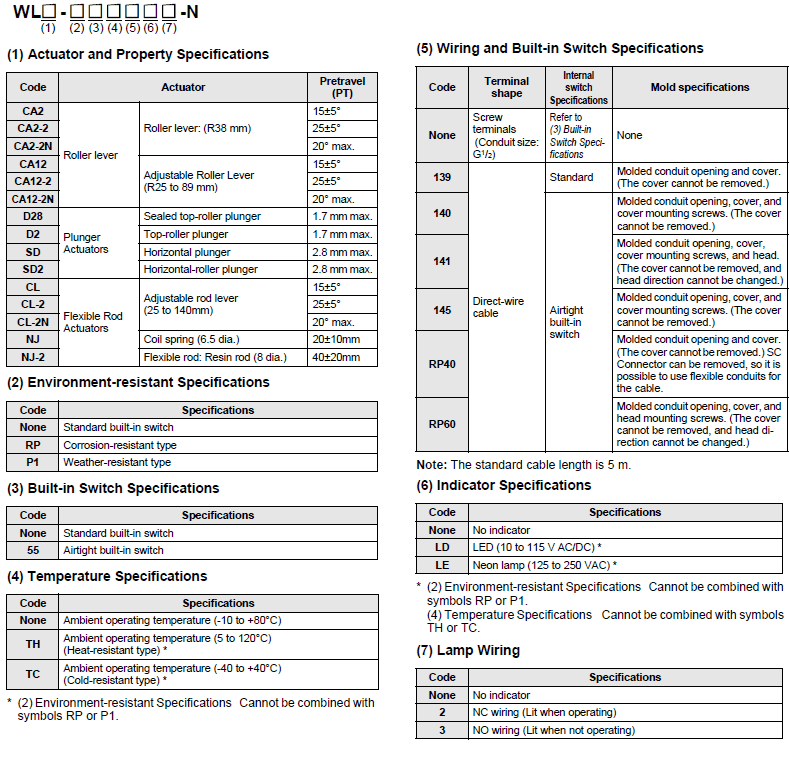

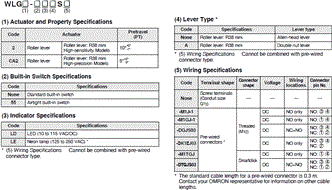

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

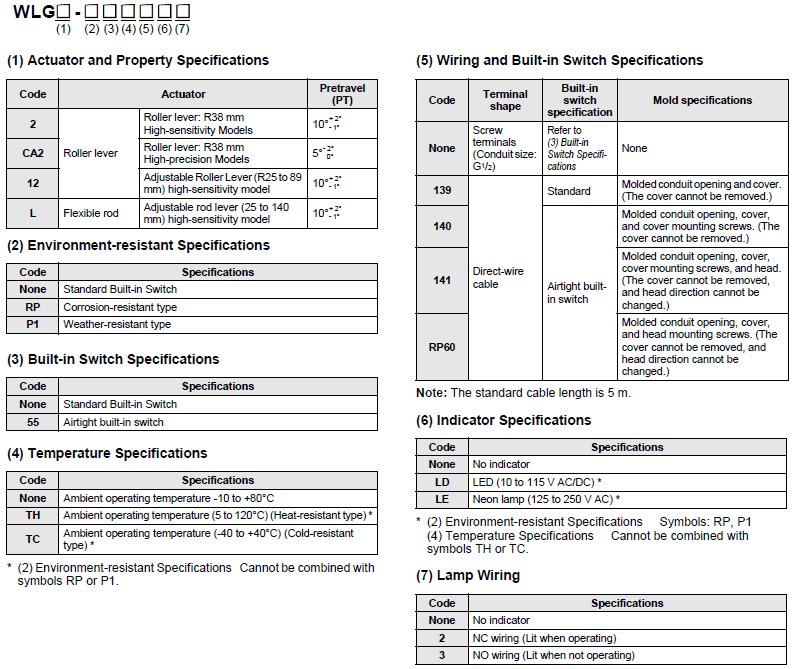

High-sensitivity and High-precision Models

Ordering Information

Roller Lever

Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Without operation indicator	With operation indicator
				Without operation indicator	Indicator	LED
				Model	Wiring Specifications	Model
Roller lever: R38 mm	Screw terminals (Conduit size: G1/2)	Heat-resistant type	15±5°	WLCA2-TH-N	---	---
			25±5°	WLCA2-2TH-N	---	---
			20° max.	WLCA2-2NTH-N	---	---
			10°+2°,-1°	WLG2-TH	---	---
			5°+2°, 0°	WLGCA2-TH	---	---
		Cold-resistant type	15±5°	WLCA2-TC-N	---	---
			25±5°	WLCA2-2TC-N	---	---
			20° max.	WLCA2-2NTC-N	---	---
			10°+2°,-1°	WLG2-TC	---	---
			5°+2°, 0°	WLGCA2-TC	---	---
		Corrosion- resistant type	15±5°	WLCA2-RP-N	---	---
			10°+2°,-1°	WLG2-RP	---	---
			5°+2°, 0°	WLGCA2-RP	---	---
		Weather- resistant type	15±5°	WLCA2-P1-N	---	---
		Weather- resistant type	10°+2°,-1°	WLG2-P1	---	---
	Direct- wire cable	Coolant- resistant type	15±5°	WLCA2-RP60-N	NC wiring	WLCA2-RP60LD2-N
			15±5°	WLCA2-RP60-N	NO wiring	WLCA2-RP60LD3-N
			25±5°	WLCA2-2RP60-N	NC wiring	WLCA2-2RP60LD2-N
			25±5°	WLCA2-2RP60-N	NO wiring	WLCA2-2RP60LD3-N
			10°+2°,-1°	WLG2-RP60	NC wiring	WLG2-RP60LD2
			10°+2°,-1°	WLG2-RP60	NO wiring	WLG2-RP60LD3
			5°+2°, 0°	WLGCA2-RP60	NC wiring	WLGCA2-RP60LD2
			5°+2°, 0°	WLGCA2-RP60	NO wiring	WLGCA2-RP60LD3
		Molded terminal -RP40	15±5°	WLCA2-RP40-N	---	---
		Molded terminal -139	15±5°	WLCA2-139-N	NC wiring	WLCA2-139LD2-N
			15±5°	WLCA2-139-N	NO wiring	WLCA2-139LD3-N
			25±5°	WLCA2-2139-N	NC wiring	WLCA2-2139LD2-N
			25±5°	WLCA2-2139-N	NO wiring	WLCA2-2139LD3-N
			20° max.	WLCA2-2N139-N	---	---
			10°+2°,-1°	WLG2-139	NO wiring	WLG2-139LD3
			5°+2°, 0°	WLGCA2-139	NC wiring	WLGCA2-139LD2
			5°+2°, 0°	WLGCA2-139	NO wiring	WLGCA2-139LD3
		Molded terminal -140	15±5°	WLCA2-140-N	---	---
			20° max.	WLCA2-2N140-N	---	---
			10°+2°,-1°	WLG2-140	NC wiring	WLG2-140LD2 *
			10°+2°,-1°	WLG2-140	NO wiring	WLG2-140LD3 *
		Molded terminal -141	15±5°	WLCA2-141-N	NC wiring	WLCA2-141LD2-N
			15±5°	WLCA2-141-N	NO wiring	WLCA2-141LD3-N
			10°+2°,-1°	WLG2-141	NC wiring	WLG2-141LD2
			10°+2°,-1°	WLG2-141	NO wiring	WLG2-141LD3
			5°+2°, 0°	WLGCA2-141	NO wiring	WLGCA2-141LD3
Adjustable roller lever (R25 to 89 mm)	Screw terminals (Conduit size: G1/2)	Heat-resistant type	15±5°	WLCA12-TH-N	─	─
			25±5°	WLCA12-2TH-N	─	─
			20° max.	WLCA12-2NTH-N	─	─
			10°+2°,-1°	WLG12-TH	─	─
		Cold-resistant type	15±5°	WLCA12-TC-N	─	─
			25±5°	WLCA12-2TC-N	─	─
			20° max.	WLCA12-2NTC-N	─	─
			10°+2°,-1°	WLG12-TC	─	─
		Corrosion- resistant type	15±5°	WLCA12-RP-N	─	─
		Corrosion- resistant type	10°+2°,-1°	WLG12-RP	─	─
		Weather- resistant type	15±5°	WLCA12-P1-N	─	─
		Weather- resistant type	10°+2°,-1°	WLG12-P1	─	─
	Direct- wire cable	Coolant- resistant type	15±5°	WLCA12-RP60-N	─	─
		Molded terminal -139	15±5°	WLCA12-139-N	─	─
		Molded terminal -140	15±5°	WLCA12-140-N	─	─

* Ask your OMRON representative for details on Two-core switches.

Plunger

Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Without operation indicator
Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Model
	Sealed top-roller plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type	1.7 mm max.	WLD28-TH-N
			Cold-resistant type		WLD28-TC-N
			Corrosion-resistant type		WLD28-RP-N
		Direct-wire cable	Coolant-resistant type		WLD28-RP60-N
			Molded terminal -139		WLD28-139-N
			Molded terminal -140		WLD28-140-N
	Top-roller plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type		WLD2-TH-N
		Direct-wire cable	Coolant-resistant type		WLD2-RP60-N
		Direct-wire cable	Molded terminal -139		WLD2-139-N
	Horizontal plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type	2.8 mm max.	WLSD-TH-N
			Cold-resistant type		WLSD-TC-N
			Corrosion-resistant type		WLSD-RP-N
		Direct-wire cable	Coolant-resistant type		WLSD-RP60-N
		Direct-wire cable	Molded terminal -139		WLSD-139-N
	Horizontal- roller plunger	Screw terminals (Conduit size: G1/2)	Heat-resistant type		WLSD2-TH-N
			Cold-resistant type		WLSD2-TC-N
			Corrosion-resistant type		WLSD2-RP-N
		Direct-wire cable	Coolant-resistant type		WLSD2-RP60-N
			Molded terminal -139		WLSD2-139-N
			Molded terminal -140		WLSD2-140-N

Flexible Rod

Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Without operation indicator
Appear- ance	Actuator	Terminal shape	Built-in switch specification/ Temperature Specifications	Pretravel (PT)	Model
	Coil spring (6.5 dia.)	Screw terminals (Conduit size: G1/2)	Heat-resistant type	20±10mm	WLNJ-TH-N
			Cold-resistant type		WLNJ-TC-N
			Corrosion-resistant type		WLNJ-RP-N
		Direct-wire cable	Coolant-resistant type		WLNJ-RP60-N
			Molded terminal -139		WLNJ-139-N
			Molded terminal -140		WLNJ-140-N
	Resin rod (8 dia.)	Screw terminals (Conduit size: G1/2)	Corrosion-resistant type	40±20mm	WLNJ-2RP-N
		Direct-wire cable	Coolant-resistant type	40±20mm	WLNJ-2RP60-N
			Molded terminal -139		WLNJ-2139-N
			Molded terminal -140		WLNJ-2140-N
	Adjustable rod lever (25 to 140 mm)	Screw terminals (Conduit size: G1/2)	Heat-resistant type	15±5°	WLCL-TH-N
				25±5°	WLCL-2TH-N
				20° max.	WLCL-2NTH-N
				10°+2°,-1°	WLGL-TH
			Cold-resistant type	15±5°	WLCL-TC-N
				25±5°	WLCL-2TC-N
				20° max.	WLCL-2NTC-N
				10°+2°,-1°	WLGL-TC
			Corrosion-resistant type	15±5°	WLCL-RP-N
			Corrosion-resistant type	10°+2°,-1°	WLGL-RP
			Weather-resistant type	15±5°	WLCL-P1-N
			Weather-resistant type	10°+2°,-1°	WLGL-P1
		Direct-wire cable	Coolant-resistant type	15±5°	WLCL-RP60-N
			Molded terminal -139	15±5°	WLCL-139-N
			Molded terminal -140	15±5°	WLCL-140-N

Spatter-prevention Switches

Model Number Structure

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

High-sensitivity and High-precision Models

Ordering Information

Roller Lever

Standard built-in switch

Screw terminals

Actuator	Pretravel (PT)	Lever type	With operation indicator *
			LED	Neon lamp
			Model	Model
Roller lever: R38 mm	15±5°	Double nut Lever	WLCA2-LDAS-N	WLCA2-LEAS-N
	15±5°	Allen-head Lever	WLCA2-LDS-N	WLCA2-LES-N
	10°+2°,-1°	Double nut Lever	WLG2-LDAS	WLG2-LEAS
	10°+2°,-1°	Allen-head Lever	WLG2-LDS	WLG2-LES
	5°+2°, 0°	Allen-head Lever	WLGCA2-LDS	WLGCA2-LES

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Pre-wired Connectors

Actuator	Pretravel (PT)	Lever type	Connector shape	Usage Voltage	Wiring locations	Connector pin No.	With operation indicator *
							LED
							Wiring Specifications
Roller lever: R38 mm	15±5°	Allen- head Lever	Threaded (M12)	DC	NO only	NO: ③④	WLCA2-LDS-M1J-1-N
	15±5°				NC+NO	NO: ③④ NC: ①②	WLCA2-LDS-DGJS-N
	10°+2°,-1°				NC+NO	NO: ③④ NC: ①②	WLG2-LDS-DGJS03
					NO only	NO: ③④ NC: ②	WLG2-LDS-DK1EJ03
						NO: ③④	WLG2-LDS-M1J-1
						NO: ①④	WLG2-LDS-M1GJ-1
	5°+2°, 0°					NO: ③④	WLGCA2-LDS-M1J-1
	5°+2°, 0°					NO: ①④	WLGCA2-LDS-M1GJ-1
	15±5°		Smartclick		NC+NO	NO: ③④ NC: ①②	WLCA2-LDS-DTGJS-N
	10°+2°,-1°		Smartclick		NO only	NO: ①④	WLG2-LDS-DTGJS03

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON when
operating (NC wiring).)

Airtight Built-in Switch

Pre-wired Connector types

Actuator	Pretravel (PT)	Lever type	Connector shape	Usage Voltage	Wiring locations	Connector pin No.	With operation indicator *
							LED
							Model
Roller lever: R38 mm	10° +2°,-1°	Allen- head Lever	Threaded (M12)	DC	NO only	NO: ③④	WLG2-55LDS-M1J-1
					NO only	NO: ①④	WLG2-55LDS-M1GJ-1
					NC+NO	NO: ③④ NC: ①②	WLG2-55LDS-DGJS03
			Smartclick		NC+NO	NO: ③④ NC: ①②	WLG2-55LDS-M1TGJ

Plunger Actuators

Standard built-in switch

Screw terminals

Actuator	Pretravel (PT)	With operation indicator *
		LED	Neon lamp
		Model	Model
Sealed top-roller plunger	1.7 mm max.	WLD28-LDS-N	WLD28-LES-N

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Pre-wired Connectors

Actuator	Pretravel (PT)	Connector shape	Voltage	Wiring locations	Connector pin No.	With operation indicator *
						LED
						Model
Sealed top-roller plunger	1.7 mm max.	Threaded (M12)	DC	NO only	NO: ③④	WLD28-LDS-M1J-1-N
			DC	NO only	NO: ①④	WLD28-LDS-M1GJ-1-N
			DC	NC+NO	NO: ③④ NC: ①②	WLD28-LDS-DGJS-N
		Smartclick	DC	NC+NO	NO: ③④ NC: ①②	WLD28-LDS-DTGJS-N

Note: The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information on
other cable lengths.
* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring). (However, Three-core and Four-core Switches cannot be switched to light-ON when
operating (NC wiring).)

Long-life Switches

Model Number Structure

Model Number Legend (Not all combinations are possible. Ask your OMRON representative for details.)

Basic models

High-sensitivity and High-precision Switches

Ordering Information

Roller Lever

Screw terminals

Actuator	Pretravel (PT)	With operation indicator *
		LED
		Model
Roller lever: R38 mm	15±5°	WLMCA2-LD-N
	10°+2°,-1°	WLMG2-LD
	5°+2°, 0°	WLMGCA2-LD

* The default setting is light-ON when not operating (NO wiring). Turn the lamp holder by 180° to change the setting to light-
ON when operating (NC wiring).

Direct-wire connector

Actuator	Pretravel (PT)	Voltage	Wiring locations	Connector pin No.	With operation indicator *
					LED
					Model
Roller lever: R38 mm	15±5°	AC	NO only	NO: ③④	WLMCA2-LDK13A-N
		AC	NC+NO	NO: ③④ NC: ①②	WLMCA2-LDK43A-N
		DC	NO only	NO: ③④	WLMCA2-LDK13-N
		DC	NC+NO	NO: ③④ NC: ①②	WLMCA2-LDK43-N
	10°+2°,-1°	AC	NO only	NO: ③④	WLMG2-LDK13A
		AC	NC+NO	NO: ③④ NC: ①②	WLMG2-LDK43A
		DC	NO only	NO: ③④	WLMG2-LDK13
		DC	NC+NO	NO: ③④ NC: ①②	WLMG2-LDK43
	5°+2°, 0°	AC	NO only	NO: ③④	WLMGCA2-LDK13A
		DC	NO only	NO: ③④	WLMGCA2-LDK13
		DC	NC+NO	NO: ③④ NC: ①②	WLMGCA2-LDK43

Pre-wired connectors

Actuator	Pretravel (PT)	Voltage	Connector shape	Wiring locations	Connector pin No.	With operation indicator *
						LED
						Model
Roller lever: R38 mm	15±5°	AC	Threaded (M12)	NO only	NO: ③④	WLMCA2-LD-M1J-N
		AC		NC+NO	NO: ③④ NC: ①②	WLMCA2-LD-AGJ-N
		DC		NC+NO	NO: ③④ NC: ①②	WLMCA2-LD-DGJ-N
			Smartclick	NC+NO	NO: ③④ NC: ①②	WLMCA2-LD-DTGJ-N
	10° +2°,-1°		Threaded (M12)	NO only	NO: ③④	WLMG2-LD-M1J
			Threaded (M12)	NC+NO	NO: ③④ NC: ①②	WLMG2-LD-DGJ03
			Smartclick	NC+NO	NO: ③④ NC: ①②	WLMG2-LD-DTGJ03
	5°+2°, 0°		Threaded (M12)	NO only	NO: ③④	WLMGCA2-LD-M1J

Note: The standard cable length for a pre-wired connector is 0.3 m. Contact your OMRON representative for information on
other cable lengths.
* The default setting is for light-ON when not operating. Turn the lamp holder by 180° to change the setting to light-ON when
operating. (However, Four-core Switches cannot be switched to light-ON when operating (NC wiring).

Common Accessories (Sold Separately)

Single-item ordering models

Switches without levers, heads, and actuators can be ordered separately. Use by combining with models that are not available as a set. You can also use them as maintenance parts for inventory management.

General-purpose Models

Actuator	Pretravel (PT)	Set Model Numbers	Switches without levers	Heads (with Actuators)	Actuator *
Actuator	Pretravel (PT)	Set Model Numbers	Model	Model	Model
Roller lever: R38 mm	15±5°	WLCA2-N	WLRCA2-N	WL-1H1100-N	WL-1A100
	25±5°	WLCA2-2-N	WLRCA2-2-N	WL-3H1100-N
	20° max.	WLCA2-2N-N	WLRCA2-2N-N	WL-1H1100-N
	10°+2°,-1°	WLG2	WLRG2	WL-2H1100-K *
Adjustable roller lever (R25 to 89 mm)	15±5°	WLCA12-N	WLRCA2-N	WL-1H2100-N	WL-2A100
	25±5°	WLCA12-2-N	WLRCA2-2-N	WL-3H2100-N
	20° max.	WLCA12-2N-N	WLRCA2-2N-N	WL-1H2100-N
	10°+2°,-1°	WLG12	WLRG2	WL-2H2100-K *
Adjustable rod lever: (25 to 140mm)	15±5°	WLCL-N	WLRCL-N	WL-4H4100-N	WL-4A100
	25±5°	WLCL-2-N	WLRCA2-2-N	WL-3H4100-N
	20° max.	WLCL-2N-N	WLRCA2-2N-N	WL-1H4100-N
	10°+2°,-1°	WLGL	WLRG2	WL-2H4100-K *
Sealed top plunger	1.7 mm max.	WLD18-N	---	WL-7H100-N	---
Sealed top-roller plunger	1.7 mm max.	WLD28-N	---	WL-7H400-N	---
Sealed top-ball plunger	1.7 mm max.	WLD38-N	---	WL-7H300-N	---
Horizontal plunger	2.8 mm max.	WLSD-N	---	WL-8H100-N	---
Horizontal-roller plunger	2.8 mm max.	WLSD2-N	---	WL-8H200-N	---
Horizontal-ball plunger	2.8 mm max.	WLSD3-N	---	WL-8H300-N	---
Coil spring (6.5 dia.)	20±10 mm	WLNJ-N	---	WL-9H100-N	---
Coil spring (4.8 dia.)	20±10 mm	WLNJ-30-N	---	WL-9H200-N	---
Flexible rod: Resin rod (8 dia.)	40±20 mm	WLNJ-2-N	---	WL-9H300-N	---
Flexible rod: Steel wire (1 dia.)	40±20 mm	WLNJ-S2-N	---	WL-9H400-N	---
Fork Lock Lever A	55° max.	WLCA32-41-N	WLRCA32-N	WL-5H5100-N	WL-5A100
Fork Lock Lever B	55° max.	WLCA32-42-N		WL-5H5102-N	WL-5A102
Fork Lock Lever C	55° max.	WLCA32-43-N		WL-5H5104-N	WL-5A104
Fork Lock Lever D	55° max.	WLCA32-44-N		WL-5H5104-N	WL-5A104

* The WL-2H1100-K, WL-2H2100-K, and WL-2H4100-K correspond with each set model WLG[], the design of which was
changed in April 2019.
Please inquire if you desire a single-item head manufactured before the design change. On products that underwent the
design change in April 2019, the front of the switch box cover at the bottom front has a protruding shape, and on earlier
products has a depressed shape.

Spatter-prevention Models

Actuator	Lever type	Indicator	Pretravel (PT)	Set Model Numbers	Switches without levers	Actuator *
Actuator	Lever type	Indicator	Pretravel (PT)	Set Model Numbers	Model	Model
Roller lever: R38 mm	Double nut lever	LED	15±5°	WLCA2-LDAS-N	WLRCA2-LDS-N	WL-1A105S
		Neon lamp	15±5°	WLCA2-LEAS-N	WLRCA2-LES-N
		LED	10°+2°,-1°	WLG2-LDAS	WLRG2-LDS
	Allen-head lever	LED	15±5°	WLCA2-LDS-N	WLRCA2-LDS-N	WL-1A103S
		Neon lamp	15±5°	WLCA2-LES-N	WLRCA2-LES-N
		LED	10°+2°,-1°	WLG2-LDS	WLRG2-LDS

* The actuator is identical for the WL and WL-N models.

Connector for cabtire cable (Conduit size: JIS B0202G1/2)

Actuator	Application/ Specifications	External diameter of cable		Model	Applicable limit switch models
Actuator	Application/ Specifications	min.	max.	Model	Applicable limit switch models
	Cabtire cable (Metal, with O-ring)	5.5 dia.	7.5 dia.	SC-1M	WL[]-N WLG[] Wiring Specifications: Screw terminals
		7.5 dia.	9.5 dia.	SC-2M
		11 dia.	13 dia.	SC-3M
		12 dia.	14 dia.	SC-4M
		9 dia.	11 dia.	SC-5M
	Cabtire cable (Metal)	5.5 dia.	7.5 dia.	SC-21
		7.5 dia.	9.5 dia.	SC-22
		11 dia.	13 dia.	SC-23
		12 dia.	14 dia.	SC-24
		9 dia.	11 dia.	SC-25
	Cabtire cable (Resin)	7.5 dia.	9 dia.	SC-6
	Cabtire cable (Resin)	8.5 dia.	10.5 dia.	SC-P2

Note: Please use sealling tape with SC Connectors. SC-1M to SC-5M, however, are provided with an O-ring (NBR) and therefore sealing tape is not necessary to ensure a proper seal. The SC-6 and SC-P2 models are made of resin. If higher sealing performance is required, use one of SC-1M to SC-5M, which have metal connectors.

FA Connectors

Model	Number of conductors	Voltage specification	Size of conduit	Size of crimp terminal	Applicable model
SC-2F	2	125 VDC	JIS B0202G1/2	M4	WL-N, WLG
SC-2FAD	2	250 VAC
SC-4F4D	4	125 VDC
SC-4F4AD	4	250 VAC

Sensor I/O connectors

Actuator	AC/DC type	Number of cable cores	Cable length (m)	Cable model	Compatible model
M12 Screw (Straight)	for AC	2	2	XS2F-A421-DB0-F	WL[]-[]K13A-N WLG[]-[]K13A
		2	5	XS2F-A421-GB0-F	WL[]-[]K13A-N WLG[]-[]K13A
		4	2	XS2F-A421-D90-F	WL[]-[]K43A-N WL[]-[]-AGJ-N WLG[]-[]K43A WLG[]-[]-AGJ03
		4	5	XS2F-A421-G90-F	WL[]-[]K43A-N WL[]-[]-AGJ-N WLG[]-[]K43A WLG[]-[]-AGJ03
	for DC	2	2	XS2F-D421-DD0	WL[]-[]K13-N WL[]-[]-M1J-N WLG[]-[]K13 WLG[]-[]-M1J
			5	XS2F-D421-GD0	WL[]-[]K13-N WL[]-[]-M1J-N WLG[]-[]K13 WLG[]-[]-M1J
			2	XS2F-D421-DA0-F	WL[]-[]-M1GJ[]-N WLG[]-[]-M1GJ[]
			5	XS2F-D421-GA0-F	WL[]-[]-M1GJ[]-N WLG[]-[]-M1GJ[]
		4	2	XS2F-D421-D80-F	WL[]-[]K43-N WL[]-[]-M1JB-N WL[]-[]-DGJ-N WL[]-[]-DK1EJ-N WLG[]-[]K43 WLG[]-[]-M1JB WLG[]-[]-DGJ03 WLG[]-[]-DK1EJ03
		4	5	XS2F-D421-G80-F
M12 Smartclick (Straight)	for DC	4	2	XS5F-D421-D80-F	WL[]-[]-M1TJ-N WL[]-[]-M1TGJ-N WL[]-[]-M1TJB-N WL[]-[]-DTGJ-N WL[]-[]-DTK1EJ-N WLG[]-[]-M1TJ WLG[]-[]-M1TGJ WLG[]-[]-M1TJB WLG[]-[]-DTGJ03 WLG[]-[]-DTK1EJ03
M12 Smartclick (Straight)	for DC	4	5	XS5F-D421-G80-F

Note: For details, refer to the data sheet for XS2 Round Water-resistant Connectors (M12 Threads) or XS5 Round Water-
resistant Connectors (M12 Smartclick).

Type	Compatible model		Remarks			Model
Cover with indicator lamps *1	WL-N	General-purpose models Long-life models (Basic models, High- sensitivity Switches)	Indicator *1	LED	Color: Red	WL-LD-N
				Neon lamp	Color: Orange	WL-LE-N
		Spatter Prevention models		LED	Color: Red	WL-LDS-N
		Spatter Prevention models		Neon lamp	Color: Orange	WL-LES-N
	WLG	General-purpose models	Indicator	LED	Color: Red	*WL-LD-K 2**
		Long-life models		Neon lamp	Color: Orange	*WL-LE-K 2**
		Spatter Prevention models		LED	Color: Red	*WL-LDS-K 2**
		Spatter Prevention models		Neon lamp	Color: Orange	*WL-LES-K 2**
Terminal Plate	WL[]-N		Change from bipolar to monopolar (contact C).			WL-N TERMINAL PLATE
Side mounting plate	WL[]-2N-N		---			WLN-P001

*1. The default setting is for light-ON when not operating. Turn the lamp holder by 180° to change the setting to light-ON
when operating.
*2. The WL-LD-K, WL-LE-K, WL-LDS-K, and WL-LES-K correspond with each set model WLG[], the design of which was
changed in April 2019. Refer to the above for details.

last update: April 1, 2025

Product Category

Switches
- Limit Switches
  - General-purpose Vertical
    - WL-N / WLG
    - D4C
    - D4CC
    - HL-5000
    - D4A-[]N
    - WL

Top of Page
