Global(Unit: mm)
D4E-[]N
Small Sealed Switch
![D4E-[]N](/Images/l_330-13-118653-198x198.jpg)
Slim and Compact Switch with Better Seal and Ensuring Longer Service Life than D4E
Related Contents
- Limit Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: March 7, 2013
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
*1. A 5.8-dia. to 7.6-dia. cable can be applied to the seal rubber for the lead wire outlet.
*2. A 3-m lead wire cable equivalent to the 3-conductor VCTF S-FLEX cable (0.75 mm2, 7 mm in dia.) is provided.
Operating Characteristics

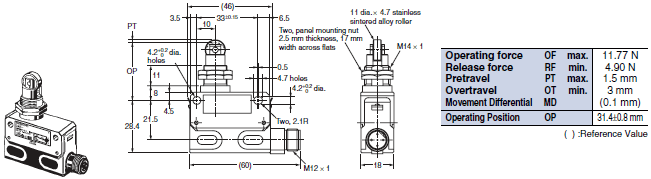

Roller Plunger
D4E-1A00N
D4E-2A00N
D4E-1A10N
D4E-2A10N
![D4E-[]N Dimensions 3](/Images/d4e-%5B%5Dn_dm_113-111682.gif)
Roller Plunger
D4E-1A20N *1
D4E-2A20N *1
D4E-1A21N *2
D4E-2A21N *2
![D4E-[]N Dimensions 4](/Images/d4e-%5B%5Dn_dm_213-111684.gif)

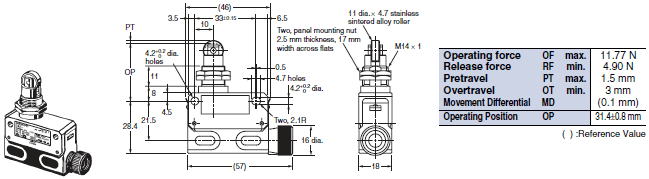

Cross Roller Plunger
D4E-1B00N
D4E-1B10N
D4E-2B10N

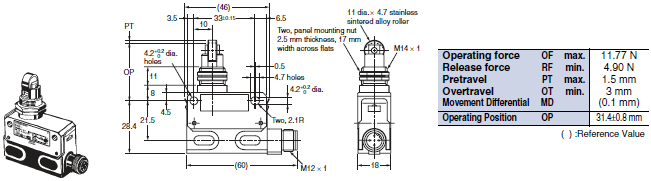

![D4E-[]N Dimensions 5](/Images/d4e-%5B%5Dn_dm_313-111686.gif)
Cross Roller Plunger
D4E-1B20N *1
D4E-2B20N *1
D4E-1B21N *2
D4E-2B21N *2

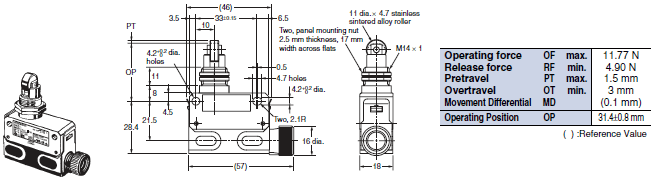

![D4E-[]N Dimensions 6](/Images/d4e-%5B%5Dn_dm_413-111687.gif)
Plunger
D4E-1C00N
D4E-2C00N
D4E-1C10N
D4E-2C10N

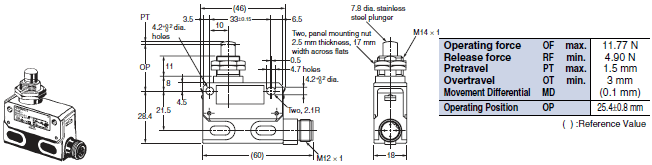

![D4E-[]N Dimensions 7](/Images/d4e-%5B%5Dn_dm_513-111689.gif)
Plunger
D4E-1C20N *1
D4E-2C20N *1
D4E-1C21N *2
D4E-2C21N *2

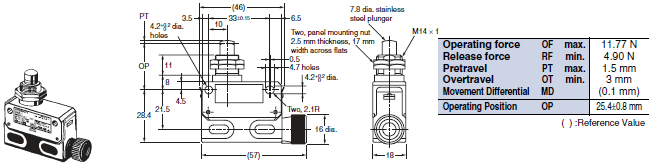

![D4E-[]N Dimensions 8](/Images/d4e-%5B%5Dn_dm_613-111692.gif)
Sealed Roller Plunger
D4E-1D00N
D4E-1D10N
D4E-2D10N
![D4E-[]N Dimensions 9](/Images/d4e-%5B%5Dn_dm_713-111693.gif)
Sealed Roller Plunger
D4E-1D20N *1
D4E-2D20N *1
D4E-1D21N *2
D4E-2D21N *2
![D4E-[]N Dimensions 10](/Images/d4e-%5B%5Dn_dm_813-111695.gif)

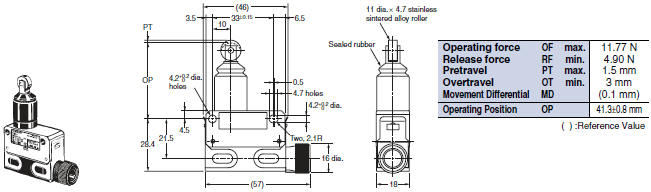

Sealed Cross Roller Plunger
D4E-1E00N
D4E-1E10N

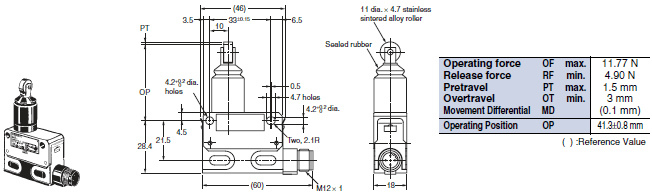

![D4E-[]N Dimensions 11](/Images/d4e-%5B%5Dn_dm_913-111697.gif)
Sealed Cross Roller Plunger
D4E-1E20N *1
D4E-2E20N *1
D4E-1E21N *2
D4E-2E21N *2

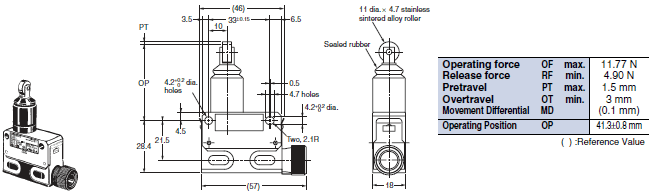

![D4E-[]N Dimensions 12](/Images/d4e-%5B%5Dn_dm_1013-111699.gif)

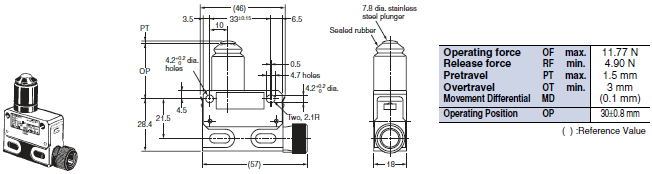

Sealed Plunger
D4E-1F00N
D4E-1F10N
D4E-2F10N
![D4E-[]N Dimensions 13](/Images/d4e-%5B%5Dn_dm_1113-111701.gif)

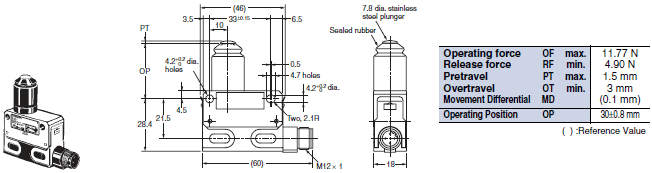

Sealed Plunger
D4E-1F20N *1
D4E-2F20N *1
D4E-1F21N *2
D4E-2F21N *2
![D4E-[]N Dimensions 14](/Images/d4e-%5B%5Dn_dm_1213-111703.gif)
Roller Lever
D4E-1G00N
D4E-1G10N
D4E-2G10N
![D4E-[]N Dimensions 15](/Images/d4e-%5B%5Dn_dm_1313-111705.gif)

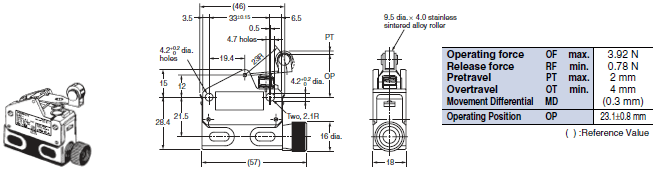

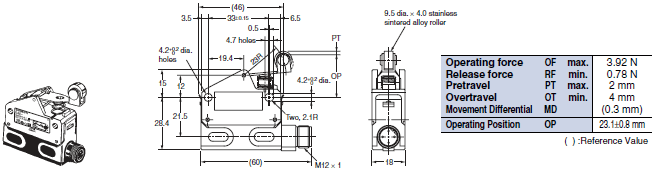

Roller Lever
D4E-1G20N *1
D4E-2G20N *1
D4E-1G21N *2
D4E-2G21N *2
![D4E-[]N Dimensions 16](/Images/d4e-%5B%5Dn_dm_1413-111707.gif)

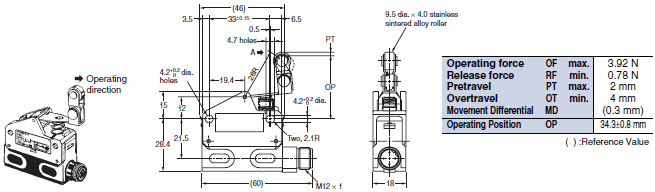

One-way Action Roller Lever
D4E-1H00N
![D4E-[]N Dimensions 17](/Images/d4e-%5B%5Dn_dm_1513-111709.gif)
One-way Action Roller Lever
D4E-1H20N *1
D4E-2H20N *1
D4E-1H21N *2

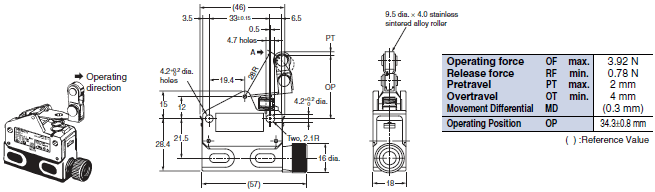

![D4E-[]N Dimensions 18](/Images/d4e-%5B%5Dn_dm_1613-111711.gif)
