XW5T-S

DIN Track Terminal Blocks with Screw Terminals

XW5T-S

Global-standard DIN Terminal Blocks for Control Panels

last update: August 19, 2024

Flammability Rating according to UL94: V0
Insulating material: PA

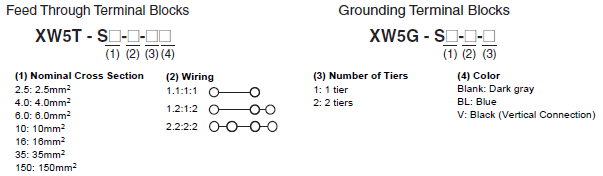

Classification	Product type	Nominal Cross Section (mm²)	Number of levels	Number of cramp position per level	Color	Model	Pack (pcs.)	Weight (gram)
Feed Through Terminal blocks	Standard terminals	2.5	1	2	Dark gray	XW5T-S2.5-1.1-1	100	8
		2.5	1	2	Blue	XW5T-S2.5-1.1-1BL	100	8
		4.0	1	2	Dark gray	XW5T-S4.0-1.1-1	100	9
		4.0	1	2	Blue	XW5T-S4.0-1.1-1BL	100	9
		6.0	1	2	Dark gray	XW5T-S6.0-1.1-1	100	14
		6.0	1	2	Blue	XW5T-S6.0-1.1-1BL	100	14
		10.0	1	2	Dark gray	XW5T-S10-1.1-1	50	17
		10.0	1	2	Blue	XW5T-S10-1.1-1BL	50	17
		16.0	1	2	Dark gray	XW5T-S16-1.1-1	50	37
		16.0	1	2	Blue	XW5T-S16-1.1-1BL	50	37
		35.0	1	2	Dark gray	XW5T-S35-1.1-1	20	74
		35.0	1	2	Blue	XW5T-S35-1.1-1BL	20	74
		150.0	1	2	Dark gray	XW5T-S150-1.1-1	10	281
	Multi tiers terminal	2.5	2	2	Dark gray	XW5T-S2.5-1.1-2	100	13
		2.5	2	2	Black	XW5T-S2.5-1.1-2V	100	15
		4.0	2	2	Dark gray	XW5T-S4.0-1.1-2	100	19
		4.0	2	2	Black	XW5T-S4.0-1.1-2V	100	20
	Multi conductor terminals	4.0	1	3	Dark gray	XW5T-S4.0-1.2-1	100	13
		4.0	1	4	Dark gray	XW5T-S4.0-2.2-1	100	17
		4.0	1	4	Blue	XW5T-S4.0-2.2-1BL	100	17
Grounding Terminal blocks	Standard terminals	2.5	1	2	Green/ yellow	XW5G-S2.5-1.1-1	100	10
		4.0	1	2		XW5G-S4.0-1.1-1	100	12
		6.0	1	2		XW5G-S6.0-1.1-1	100	20
		10.0	1	2		XW5G-S10-1.1-1	50	23
		16.0	1	2		XW5G-S16-1.1-1	50	47
		35.0	1	2		XW5G-S35-1.1-1	20	123
	Multi conductor terminals	4.0	1	4		XW5G-S4.0-2.2-1	100	20
Special terminals	Fuse terminal	4.0	1	2	Dark gray	XW5T-S4.0-FU5	50	19
	Fuse terminal	4.0	1	2		XW5T-S4.0-FU6	50	22
	Knife edge disconnect block	4.0	1	2		XW5T-S4.0-KD	100	12

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S2.5-2	10
5		XW5S-S2.5-5	10
10		XW5S-S2.5-10	20

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S4.0-2	10
3		XW5S-S4.0-3	10
4		XW5S-S4.0-4	10
5		XW5S-S4.0-5	10
10		XW5S-S4.0-10	20

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S6.0-2	10
3		XW5S-S6.0-3	10
5		XW5S-S6.0-5	10

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S10-2	10

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S2.5-2N	10
4		XW5S-S2.5-4N	10
10		XW5S-S2.5-10N	10

Applicable Terminal Blocks	Model	Pack (pcs.)
XW5[]-S2.5-1.1-[] XW5[]-S4.0-1.1-[] XW5[]-S6.0-1.1-[] XW5[]-S10-1.1-[]	XW5Z-S2.5PT	10

Applicable Terminal Blocks	Marking	Model	Pack (pcs.)
XW5[]-S2.5-[]	None	XW5Z-S2.5LB	25
	1-10	XW5Z-S2.5LB-1-10	25
	11-20	XW5Z-S2.5LB-11-20	25
	21-30	XW5Z-S2.5LB-21-30	25
	31-40	XW5Z-S2.5LB-31-40	25
	41-50	XW5Z-S2.5LB-41-50	25
	51-60	XW5Z-S2.5LB-51-60	25
	61-70	XW5Z-S2.5LB-61-70	25
	71-80	XW5Z-S2.5LB-71-80	25
	81-90	XW5Z-S2.5LB-81-90	25
	91-100	XW5Z-S2.5LB-91-100	25
	1-100	XW5Z-S2.5LB-1-100	1 *
XW5[]-S4.0-[]	None	XW5Z-S4.0LB	25
	1-10	XW5Z-S4.0LB-1-10	25
	11-20	XW5Z-S4.0LB-11-20	25
	21-30	XW5Z-S4.0LB-21-30	25
	31-40	XW5Z-S4.0LB-31-40	25
	41-50	XW5Z-S4.0LB-41-50	25
	51-60	XW5Z-S4.0LB-51-60	25
	61-70	XW5Z-S4.0LB-61-70	25
	71-80	XW5Z-S4.0LB-71-80	25
	81-90	XW5Z-S4.0LB-81-90	25
	91-100	XW5Z-S4.0LB-91-100	25
	1-100	XW5Z-S4.0LB-1-100	1 *
XW5[]-S6.0-[]	None	XW5Z-S6.0LB	25
	1-10	XW5Z-S6.0LB-1-10	25
	11-20	XW5Z-S6.0LB-11-20	25
	21-30	XW5Z-S6.0LB-21-30	25
	31-40	XW5Z-S6.0LB-31-40	25
	41-50	XW5Z-S6.0LB-41-50	25
	51-60	XW5Z-S6.0LB-51-60	25
	61-70	XW5Z-S6.0LB-61-70	25
	71-80	XW5Z-S6.0LB-71-80	25
	81-90	XW5Z-S6.0LB-81-90	25
	91-100	XW5Z-S6.0LB-91-100	25
	1-100	XW5Z-S6.0LB-1-100	1 *

* Box including 250 pcs.
