D4BS
Safety-door Switch
The Special Operation Key Activates a Direct Opening Mechanism to Open the Contacts and Shut Off Control Circuits when Protective Doors Are Opened on Machine Tools or Other Equipment
Related Contents
- Safety Door Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: December 2, 2024
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Switches

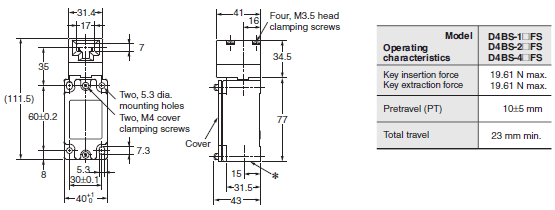

1-conduit type
D4BS-1[]FS
D4BS-2[]FS
D4BS-4[]FS
Note: There are fluctuations in the contact ON/OFF timing for 2NC contacts. Confirm performance before application.
* Conduit outlet
D4BS-1[]FS :Pg 13.5
D4BS-2[]FS :G1/2
D4BS-4[]FS: M20
* Conduit outlet
D4BS-1[]FS :Pg 13.5
D4BS-2[]FS :G1/2
D4BS-4[]FS: M20
Accessory
M20-to-1/2-14NPT conversion adapter for D4BS-4[][]S-NPT
Operation Keys

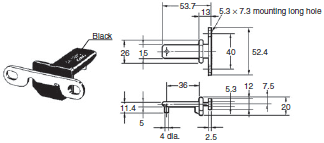

D4BS-K1

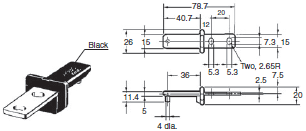

D4BS-K2
D4BS-K3

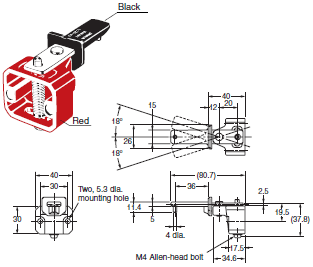

With Operation Key Inserted
D4BS + D4BS-K1
D4BS + D4BS-K2
D4BS + D4BS-K3
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

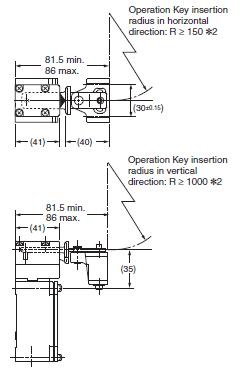

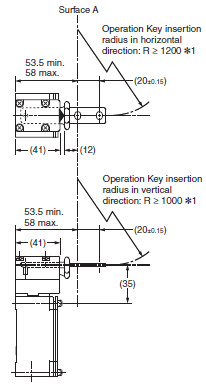

*1. The insertion radii apply when the rotational center of the Operation Key in on surface A in the figures.

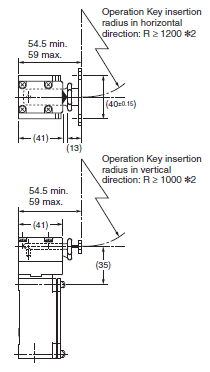

*2. The insertion radii apply when the rotational center of the Operation Key in on the Operation Key installation surface.
