F3SP-B1P

Control Unit

F3SP-B1P

Less Wiring Required with Safety Light Curtain

Main Unit

Control Unit

Appearance Main contacts Auxiliary contact Light curtain auxiliary output Model
3761_lu_1_1 3PST-NO SPST-NC 1PNP F3SP-B1P

Accessories (Sold separately)

Connecting Cable

Double-Ended Cable (2 cables per set, one for emitter and one for receiver)

Appearance Cable length Specifications Model
3761_lu_2_1 3 m 3761_lu_2_2 F39-JD3B
7 m F39-JD7B
10 m F39-JD10B

Adapter Cable

For connection with F3SG-RA Series

Appearance Type Cable
length
Specifications Model

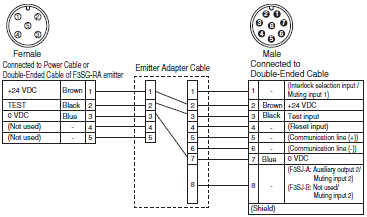

3761_lu_3_1 For emitter
M12
connector
0.3 m 3761_lu_3_2 F39-JGR3M-B58-L

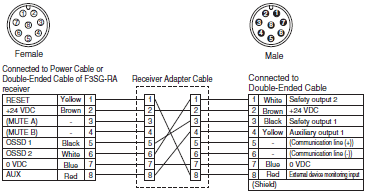

3761_lu_3_3 For receiver
M12
connector
0.3 m 3761_lu_3_4 F39-JGR3M-B88-D

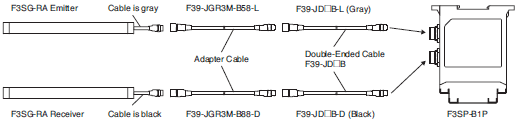

Note: Use the F39-JD[]B Double-Ended Cables to connect with the F3SG-RA Series.
