J7KC Series

Magnetic Contactor

J7KC Series

Best Match for upto 2.2 kW (240 VAC) *, 5.5 kW (440 VAC) Motor and Primary Side switches * Based on JIS C 8201-4-1

Item list of J7KC Series

Related Contents

last update: April 22, 2024

(Unit: mm)

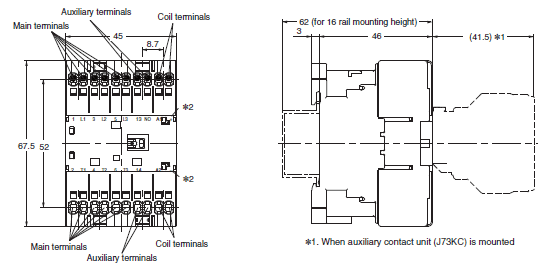

Main unit

Magnetic contactor

J7KC

J7KC Series Dimensions 2

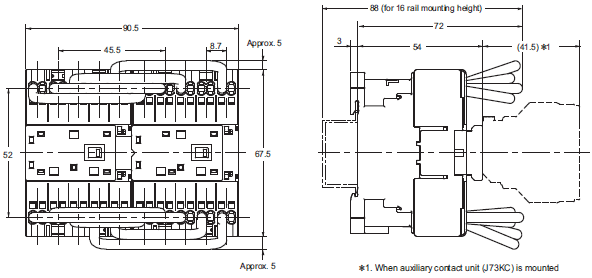

Reversing magnetic contactor

J7KCR

J7KC Series Dimensions 3

Options (Order Separately)

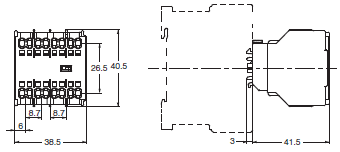

Auxiliary contact unit

J73KC

J7KC Series Dimensions 5

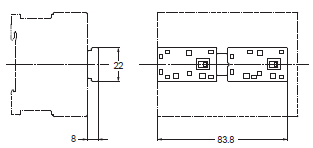

Interlock unit

J74KC

J7KC Series Dimensions 6

Reversing conductor kit

J75KC-WKR-A

J7KC Series Dimensions 7

J75KC-WKR-B

J7KC Series Dimensions 8

Coil surge absorption unit

J76KC-RC

J7KC Series Dimensions 9

J76KC-RC-N

J7KC Series Dimensions 10

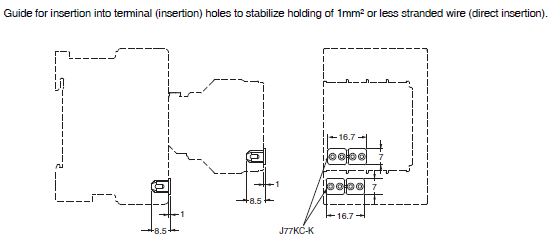

Insulation stop

J77KC-K

J7KC Series Dimensions 11

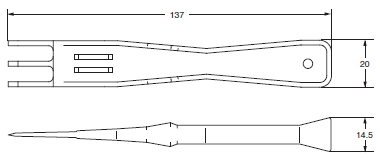

Tools for removal

J78KC

J7KC Series Dimensions 12

DIN Rails (Order Separately)

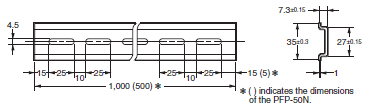

Mounting Rail

PFP-100N
PFP-50N

J7KC Series Dimensions 14

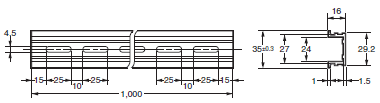

Mounting Rail

PFP-100N2

J7KC Series Dimensions 15

End Plate

PFP-M

J7KC Series Dimensions 16

Spacer

PFP-S

J7KC Series Dimensions 17
