F440-F

5-Megapixel C-Mount Smart Camera

F440-F

User-configurable smart camera.

Item list of F440-F

Related Contents

last update: May 8, 2023

1. Camera Models and Software Licenses

Appearance Description Part Number
3903_lu_1_1 F440-F, No Optics, 5 MP, Mono, No Light, AutoVISION Sensor F440-FXXXY50M-NNS
F440-F, No Optics, 5 MP, Mono, No Light, AutoVISION + Verification F440-FXXXY50M-NNA
F440-F, No Optics, 5 MP, Mono, No Light, AutoVISION + Verification + Visionscape F440-FXXXY50M-NNV

Note 1: F440-F cameras are sold without lenses, lights, cables, or mounting. All of these items can be found in later
sections of this datasheet.
Note 2: The F440-F uses all the same cables and interconnect accessories as the V440-F. The F440-F uses standard
Ethernet cables. High-Flex TPE cables and Robot Ethernet cables are shown later in this datasheet.

2. Mounting Options

Appearance Type Part Number
3903_lu_3_1 ¼-20 Camera Mounting Block Kit
(F440-F series only)		 V440-AM0

3. C-Mount Lens Options

The F440-F has a C-mount, and can be used with standard C-mount, telecentric, and macro lenses. Omron offers a
variety of lenses at a variety of prices and resolutions for standard reading and code grading applications.
Three different C-mount lens sets are listed below for general reading and code grading. The tables include cross
references to compatible polarizing filters and Smart Series Ring Lights.
When using the F440-F with Smart Series Ring Lights and a polarizer, the appropriate polarizing filter must be used
on the lens.

Compact C-Mount Reading Lenses*

• Low Cost
• Small Size
• Reading Lens – 85 lp/mm
• Locking Screws for Focus and Iris
• F-Number of 1.2 to 16

F440-F Lineup 5

Part Number Focal Length Minimum
Working
Distance (mm)		 Size (mm) -
Length x
Diameter		 Filter Size Polarizer Part Number Smart Ring
Light
Compatibility
98-9000167-01 6 mm 100 36.7 x 29.5 M27 P0.5 3Z4S-LE SV-PL270-SS R-70/R-100
98-9000168-01 9 mm 100 35 x 29.5 M27 P0.5 3Z4S-LE SV-PL270-SS R-70/R-100
98-9000169-01 12.5 mm 100 29.5 x 29.5 M25.5 P0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000170-01 16 mm 100 29.5 x 29.5 M25.5 P0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000171-01 25 mm 150 29.5 x 29.5 M25.5 P0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000172-01 35 mm 250 29.5 x 29.5 M25.5 P0.5 3Z4S-LE SV-PL255-SS R-70/R-100

*For working distances shorter than the minimum working distance specified for the lens, an extension tube is required to focus the lens.

Standard C-Mount Reading Lenses*

• Medium Size
• Reading Lens – 100 lp/mm
• Locking Screws for Focus and Iris
• F-Number of 1.4 to 16

F440-F Lineup 8

Part Number Focal Length Minimum
Working
Distance (mm)		 Size (mm) -
Length x
Diameter		 Filter Size Polarizer Part Number Smart Ring
Light
Compatibility
3Z4S-LE SV-0614H 6 mm 100 57.5 x 42 M40.5 P0.5 3Z4S-LE SV-PL405-SS R-100
3Z4S-LE SV-0814H 8 mm 100 52.5 x 39 M35.5 P0.5 3Z4S-LE SV-PL355-SS R-100
3Z4S-LE SV-1214H 12 mm 100 51 x 30 M27 P0.5 3Z4S-LE SV-PL270-SS R-70/R-100
3Z4S-LE SV-1614H 16 mm 100 47.5 x 30 M27 P0.5 3Z4S-LE SV-PL270-SS R-70/R-100
3Z4S-LE SV-2514H 25 mm 150 36 x 30 M27 P0.5 3Z4S-LE SV-PL270-SS R-70/R-100
3Z4S-LE SV-3514H 35 mm 200 45.5 x 44 M35.5 P0.5 3Z4S-LE SV-PL355-SS R-100
3Z4S-LE SV-5014H 50 mm 300 57.5 x 44 M40.5 P0.5 3Z4S-LE SV-PL405-SS R-100
3Z4S-LE SV-7525H 75 mm 1200 54.6 x 36 M34.0 P0.5 3Z4S-LE SV-PL340-SS R-100
3Z4S-LE SV-10028H 100 mm 2000 71.6 x 39 M37.5 P0.5 3Z4S-LE SV-PL375-SS R-100

*These are the standard lenses offered in the Omron Vision Accessories Catalog.
*For working distances shorter than the minimum working distance specified for the lens, an extension tube is required to focus the lens.

High-Resolution Code Reading / Grading C-Mount Lenses*

• Medium Size
• Reading / 1D and 2D Code Grading Lens – 145 lp/mm
• Locking Screws for Focus and Iris
• F-Number of 1.4 to 16

F440-F Lineup 11

Part Number Focal Length Minimum
Working
Distance (mm)		 Size (mm) -
Length x
Diameter		 Filter Size Polarizer Part Number Smart Ring
Light
Compatibility
98-9000192-01 6 mm 100 51 x 39 M37.5 x 0.5 3Z4S-LE SV-PL375-SS R-100
98-9000165-01 8 mm 100 51.5 x 29.5 M25.5 x 0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000166-01 12 mm 100 51.5 x 29.5 M25.5 x 0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000154-01 16 mm 100 46.0 x 29.5 M25.5 x 0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000164-01 25 mm 100 46.5 x 29.5 M25.5 x 0.5 3Z4S-LE SV-PL255-SS R-70/R-100
98-9000163-01 35 mm 200 41.5 x 29.5 M25.5 x 0.5 3Z4S-LE SV-PL255-SS R-70/R-100

*For working distances shorter than the minimum working distance specified for the lens, an extension tube is required to focus the lens.

C-Mount Lens Polarizing Filters (only for Standard C-Mount Reading Lenses)

F440-F Lineup 14

Model Filter Size
3Z4S-LE SV-PL225-SS M22.5 P0.5
3Z4S-LE SV-PL255-SS M25.5 P0.5
3Z4S-LE SV-PL270-SS M27.0 P0.5
3Z4S-LE SV-PL305-SS M30.5 P0.5
3Z4S-LE SV-PL340-SS M34.0 P0.5
3Z4S-LE SV-PL355-SS M35.5 P0.5
3Z4S-LE SV-PL375-SS M37.5 P0.5
3Z4S-LE SV-PL405-SS M40.5 P0.5
3Z4S-LE SV-PL520-SS M52.0 P0.75
3Z4S-LE SV-PL550-SS M55.0 P0.75
3Z4S-LE SV-PL620-SS M62.0 P0.75

4. Non-Telecentric Macro C-Mount Lens Options for Small Codes

• Macro Lens – Low Cost, Small Size
• 0.5x Magnification – 17 × 14.2 mm Field of View
　• Able to Capture 2 mil (0.05 mm) Code at 7 PPE
• 1x Magnification – 8.5 × 7.1 mm Field of View
　• Able to Capture 1 mil (0.025 mm) Code at 7 PPE
• Use with External Lighting

F440-F Lineup 15

Part Number Description Opt.
Mag.		 Working
Distance (mm)		 F# Depth of Field
(mm)		 TV Distortion F440-F FOV (mm)
3Z4S-LE VS-MC05-130 0.5x Macro Lens 0.5x 126.3 6.1 2.0 0.00% max. 17 × 14.2
3Z4S-LE VS-MC1-80 1x Macro Lens 1x 82.4 8.14 0.7 0.00% max. 8.5 × 7.1

5. Telecentric C-Mount Lens and Lighting Options for Small Codes

• High-Resolution Telecentric Lens – 150 Ip/mm
• 1x Magnification – 8.5 × 7.1 mm Field of View
　• Able to capture 1 mil (0.024 mm) Code Size at 7 PPE
• 2x Magnification – 4.25 × 3.55 mm Field of View
　• Able to capture 0.5 mil (0.012 mm) Code Size at 7 PPE
• 65 or 110 mm Working Distance
• Coaxial Lighting Option or use with External Lighting

F440-F Lineup 17

Part Number Description Opt.
Mag.		 Working
Distance
(mm)		 F# NA Depth of Field
(mm)		 TV Distortion F440-F FOV
(mm)
3Z4S-LE VS-TCH1-65-O 1x Telecentric Lens 1x 68.8 9.9 0.05 0.6 0.01% 8.5 × 7.1
3Z4S-LE VS-TCH1-110-O 1x Telecentric Lens 1x 110.3 10.5 0.048 0.6 0.02% 8.5 × 7.1
3Z4S-LE VS-TCH2-65-O 2x Telecentric Lens 2x 65 13.6 0.074 0.3 0.01% 4.25 × 3.55
3Z4S-LE VS-TCH2-110-O 2x Telecentric Lens 2x 110.3 13.6 0.074 0.3 0.02% 4.25 × 3.55
3Z4S-LE VS-TCH1-65CO-O 1x Telecentric Lens with Coaxial Light 1x 68.8 9.9 0.05 0.6 0.03% 8.5 × 7.1
3Z4S-LE VS-TCH1-110CO-O 1x Telecentric Lens with Coaxial Light 1x 110.8 10.5 0.048 0.6 0.03% 8.5 × 7.1
3Z4S-LE VS-TCH2-65CO-O 2x Telecentric Lens with Coaxial Light 2x 65 13.5 0.074 0.3 0.03% 4.25 × 3.55
3Z4S-LE VS-TCH2-110CO-O 2x Telecentric Lens with Coaxial Light 2x 110.8 13.5 0.074 0.3 0.03% 4.25 × 3.55

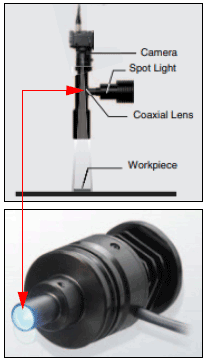

Telecentric Lens Coaxial Lighting – Option 1

F440-F Lineup 19

• Red, White, or Blue Spot Light for Coaxial Lens (8 mm dia.)
• Analog Lighting Controller
• Extension Cable

Part Number Description*
FLV-EP0803R Spot Light, Red (Fits TCH Telecentric Lens)
FLV-EP0803W Spot Light, White (Fits TCH Telecentric Lens)
FLV-EP0803B Spot Light, Blue (Fits TCH Telecentric Lens)
FLV-ATC10405 Analog Lighting Controller for FLV-EP Series
FLV-XC1EP Extension Cable (between Light and Controller) 1 Meter
FLV-XC2EP Extension Cable (between Light and Controller) 2 Meters
FLV-XC3EP Extension Cable (between Light and Controller) 3 Meters
FLV-XC5EP Extension Cable (between Light and Controller) 5 Meters

*Note: See the Omron Vision Accessories Catalog for full descriptions.
Important: This option uses standard components available in Japan. Please note that this power supply cannot be sold in the U.S. or the EU. Refer to Telecentric Lens Coaxial Lighting – Option 2 for alternate components.

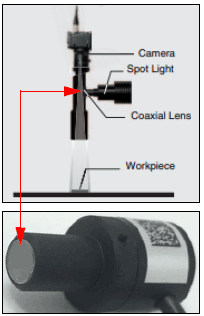

Telecentric Lens Coaxial Lighting – Option 2

F440-F Lineup 22

• Blue Spot Light for Coaxial Lens (8 mm dia.)
• 24V DC / 0.7W
• Flying Leads Extension Cable to Power Source
• Optional Power Supply

Part Number Description
98-9000304-01 Kit, Spotlight, Blue, Telecentric Lens with Flying Leads Extension Cable
NER-011504100 24VDC 2.5A DIN Mount Power Supply*
NER-030028300 AC Power Cord for DSPxx Power Supply, U.S.*
NER-030028400 AC Power Cord for DSPxx Power Supply, EU*

*Important: This option can be sold in the U.S., EU, and all other regions, as it can be powered directly from 24V, or can use the listed UL-compliant and CE-compliant S8VK-C06024 power supply.

6. Cables

General Wiring Options

Appearance Category Length / Spec Part Number
3903_lu_12_1 Standard Ethernet Cables - Industrial High-Flex GigE Ethernet Cables with Jack Screws and RJ45 Connector* 2 Meters 98-000133-01
5 Meters 98-000134-01
7 Meters 98-000134-02
3903_lu_12_2 Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug
QX-1 is used as breakout module for common IO signals and power.		 1 Meter V430-WQ-1M
M12 Socket to M12 Plug, with Power Filter 300 mm V430-WQF-1M
Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug
QX-1 is used as breakout module for common IO signals and power.		 3 Meters V430-WQ-3M
5 Meters V430-WQ-5M
3903_lu_12_3 QX-1 M12 to Smart Light Power and Strobe Control Cables M12 Plug on QX-1 to 5 Pin Socket on Light 3 Meters - Continuous
Power		 61-000204-01
3 Meters - Strobe
Control		 61-000218-01
3903_lu_12_4 Y Cable, Camera/Power and Smart Light Power (Continuous On) 1 Meter 61-9000135-01
Y Cable, Camera/Power and Smart Light Strobe Control 1 Meter 61-9000137-01
3903_lu_12_5 M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB 3 Meters V430-W8-3M
M12 to Flying Leads Cable, with Power Filter V430-W8F-3M
M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB 5 Meters V430-W8-5M
M12 to Flying Leads Cable, with Power Filter V430-W8F-5M
3903_lu_12_6 M12 to RS-232 Breakout 1 Meter V430-WR-1M
3 Meters V430-WR-3M
3903_lu_12_7 Camera to QX-1 Interconnect Cables with RS-232 Breakout 2.7 Meters V430-WQR-3M
3903_lu_12_8 Camera to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout 2.7 Meters V430-WQK-3M

*Important: Standard Omron FJ-VSG Ethernet cables are available in alternative and longer lengths.

7. Power Supply and PoE Injector

Appearance Category Length / Spec Part Number
3903_lu_13_1 Power Supply, 100-240VAC, +24VDC, M12
12-Pin Socket		 1 Meter
US/Euro Plug		 97-000012-01
3903_lu_13_2 Single Port PoE Injector, 30W, IEEE802.3at Compliant,
2 x RJ45 Connector, 90 to 264VAC		 Power Cord NOT
Included
(C13 Connector
Required)		 98-9000311-01
(Coming Soon)

8. Lighting Options

The F440-F is designed for use with external lighting. It can be equipped with any vendor’s continuous power or strobe lighting. Strobe lights are triggered using Output 3 on the M12 IO connector through a flying leads cable.
Omron also offers a line of Smart Lights that can be used in continuous or strobed mode. NERLITE Smart Series Lights have a built-in strobe controller, so no external strobe controller is needed. Dedicated cable sets allow you to wire the NERLITE Smart Series Lights directly to the F440-F.
NERLITE Smart Series Lights include Ring Lights, DOALs, Large Area Bar Lights (MAX Lights), and a dedicated label-reading light called Pharmalite. Ring Lights, Ring Light accessories, and mounting brackets are show below.

NERLITE Smart Series R-70 and R-100 Ring Lights

Product Appearance Type Part Number
F440-F Smart Series Ring
Light Kits
3903_lu_14_1		 3903_lu_14_2 R-70, 70 mm RED Ring Light NER-011660900G*
R-70, 70 mm WHITE Ring Light NER-011660910G
R-70, 70 mm BLUE Ring Light NER-011660920G
R-100, 100 mm RED Ring Light NER-011661100G*
R-100, 100 mm WHITE Ring Light NER-011661110G
R-100, 100 mm BLUE Ring Light NER-011661120G

*Note: The R-70 and R-100 Red Ring Lights are normally stock lights with short lead times. Blue and White Ring Lights are subject to standard NERLITE lead times. Check on availability before placing order.

NERLITE Smart Series R-70 and R-100 Ring Light Polarizer Kits

Appearance Type Part Number
3903_lu_15_1 R-70 Smart Series Ring Light Polarizer Kit 98-9000301-01*
R-100 Smart Series Ring Light Polarizer Kit 98-9000302-01*

*Note: Smart Series Ring Light Polarizer Kits must be used in conjunction with a cross-polarizer on the lens. See lens polarizer section of the datasheet to determine the correct part number to match the filter thread size of the lens.

NERLITE Smart Series R-70 and R-100 Ring Light Mounting Kits

Appearance Type Part Number
3903_lu_16_1 R-70 Smart Series Ring Light Mounting Kit V440-AM1*
R-100 Smart Series Ring Light Mounting Kit V440-AM2*

*Note: The C-Mount lens nests down inside the light aperture. The R-70 has a 43.4 mm opening. The R-100 has a 69.5 mm opening. Larger diameter lenses may not fit inside the R-70 ring light. Please see light size compatibility chart in the lens tables.

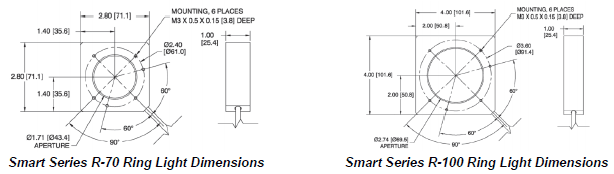

NERLITE Smart Series R-70 and R-100 Ring Light Specifications, Dimensions, Connections

Size Part Number Description Wavelength Current @ 24 V Strobe Current Millicandela
Continuous		 Millicandela
Strobe
R-70 NER-011660900G 70 mm, RED 623 nm 172 mA 1.2 A 349281 3062913
NER-011660910G 70 mm, WHITE 6700 K 160 mA 850 mA 352205 1739631
NER-011660920G 70 mm, BLUE 470 nm 160 mA 850 mA 143217 618814
R-100 NER-011661100G 100 mm, RED 623 nm 255 mA 1.7 A 516015 4370388
NER-011661110G 100 mm, WHITE 6700 K 235 mA 1.1 A 495814 2338577
NER-011661120G 100 mm, BLUE 470 nm 235 mA 1.1 A 201005 848215

F440-F Lineup 37

9. Other Accessories

Appearance Category Length / Spec Part Number
3903_lu_18_1 QX-1 Interconnect Module - Power, Trigger, Smart Light
Control Breakout		 N/A 98-000103-02
3903_lu_18_2 QX-1 Photo Sensor, M12 4-Pin Plug, NPN 2 Meters - Light ON/
Dark ON		 99-9000016-01
3903_lu_18_3 QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or
Photo Sensor		 Screw Terminals 98-9000239-01

last update: May 8, 2023

Product Category

Site Information

© Copyright OMRON Corporation 2007 - 2025. All Rights Reserved.
