Global(Unit: mm)
D40A-2
Non-Contact Safety Door Switch
Supports a wide range of equipment requirements with safety and environmental resistance
Related Contents
- Safety Door Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: August 1, 2024

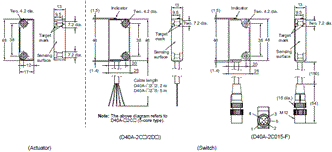

Non-Contact Safety Door Switch (Switch/Actuator)
D40A-2C[]/2D[]
D40A-2C015-F
Switches (Sold separately)
D40A-S2C[]/S2D[]
D40A-S2C015-F
Actuator (Sold separately)
D40A-A2
Accessory (Sold separately)
Cable with connector

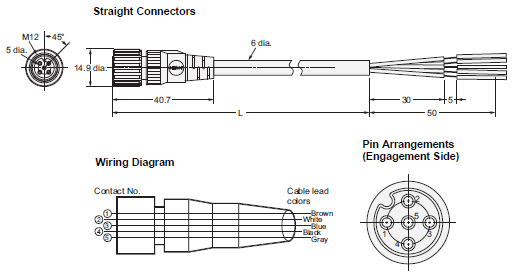

Socket on One Cable End (5-pole Connectors)
XS2F-D521-DG0-A (L=2m)
XS2F-D521-GG0-A (L=5m)
XS2F-D521-JG0-A (L=10m)
XS2F-D521-KG0-A (L=15m)
XS2F-D521-LG0-A (L=20m)

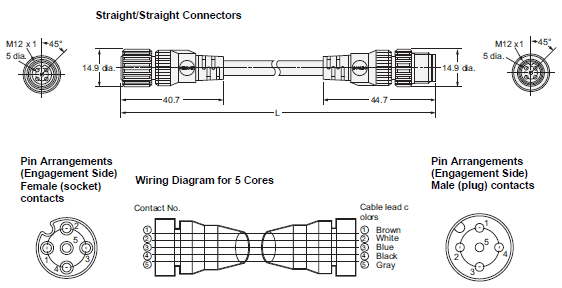

Sockets and Plugs on Cable Ends (5-pole Connectors)
XS2W-D521-DG1-A (L=2m)
XS2W-D521-GG1-A (L=5m)
XS2W-D521-JG1-A (L=10m)
XS2W-D521-KG1-A (L=15m)
XS2W-D521-LG1-A (L=20m)
Note: For details, refer to the XS2 Data Sheet.
