KM-PM

Power Monitor

KM-PM

38 mm-wide Ethernet Power Monitor for Global Control Panel Integration

Software Download

You can download software for the KM-PM.

[1. Easy to Install] Reduces Installation work inside panels

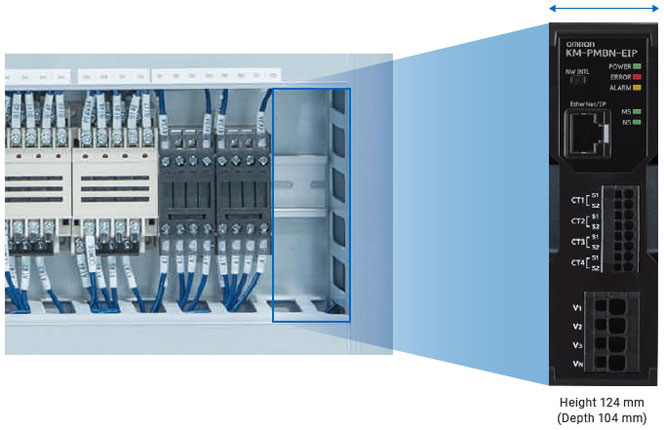

Can be installed even in the small open spaces of existing panels.

KM-PM Features 2

Achieves EtherNet/IP™ support in a slim body.Significant space savings allow Installation even in small gaps, whether for single or multiple circuits.

*1. As of July 2025, according to our research. For EtherNet/IP™ compatible models and systems measuring 400 V.

KM-PM Features 3

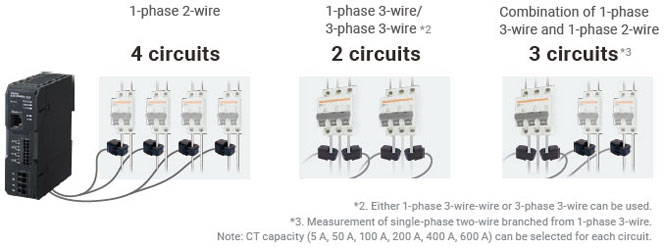

Compatible with multiple circuits, allowing minimization of wiring and equipment

KM-PM Features 4

Multi-circuit measurements reduces the measurement cost per circuit.

KM-PM Features 5

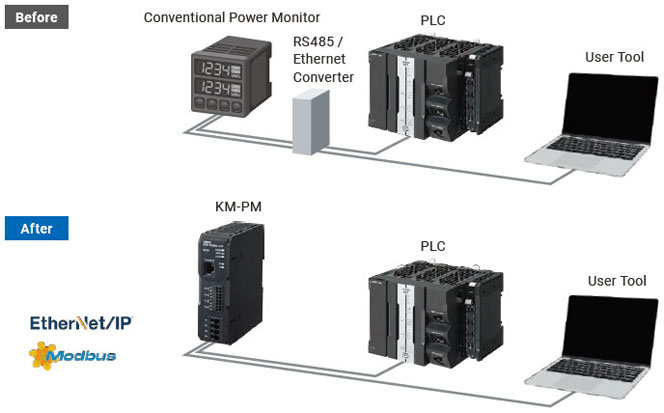

Equipped with Ethernet as a Standard Communication Interface ― No Converter Required, Reducing Wiring Effort

KM-PM Features 6

Compatible with Ethernet communication (EtherNet/IP™, ModbusTCP), improving connectivity to production equipment and user tools.

KM-PM Features 7

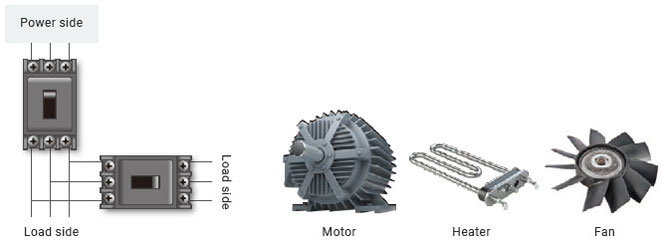

Its space-saving design enables measurement at the individual small breaker level.

Its space-saving, multi-circuit monitoring*4 allows measurement down to individual small breakers, providing detailed insight into power consumption in production equipment.

*4. Monitoring is only possible when both targets have the same voltage.
An additional unit is needed when using a different voltage.

KM-PM Features 8

[2. Easy to Choose] Reducing the effort of model selection

Acquired major safety standards, enabling global export

KM-PM Features 10

KM-PM supports single-phase 100 V to three-phase 480 V, enabling Power measurement for a wide range of equipment. Additionally, it has obtained major safety certifications, allowing for global deployment.

KM-PM Features 11

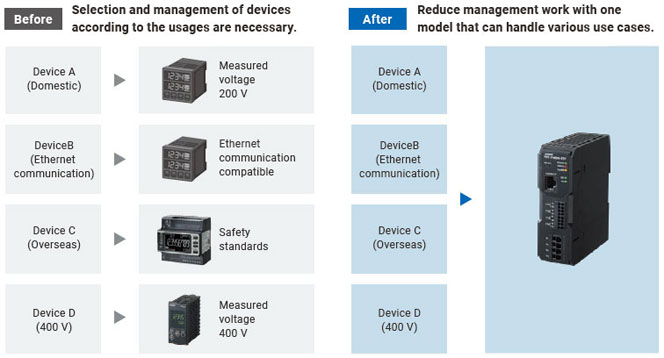

Compatible with a wide range of voltage environments to prevent model selection errors

KM-PM Features 12

Previously, selecting and managing devices for each machine and region was time-consuming. With just one KM-PM model, you can support diverse equipment worldwide―simplifying selection, reducing management workload, and promoting global standardization.

KM-PM Features 13

[3. Easy to Setup] Minimize System Setup and Configuration Time

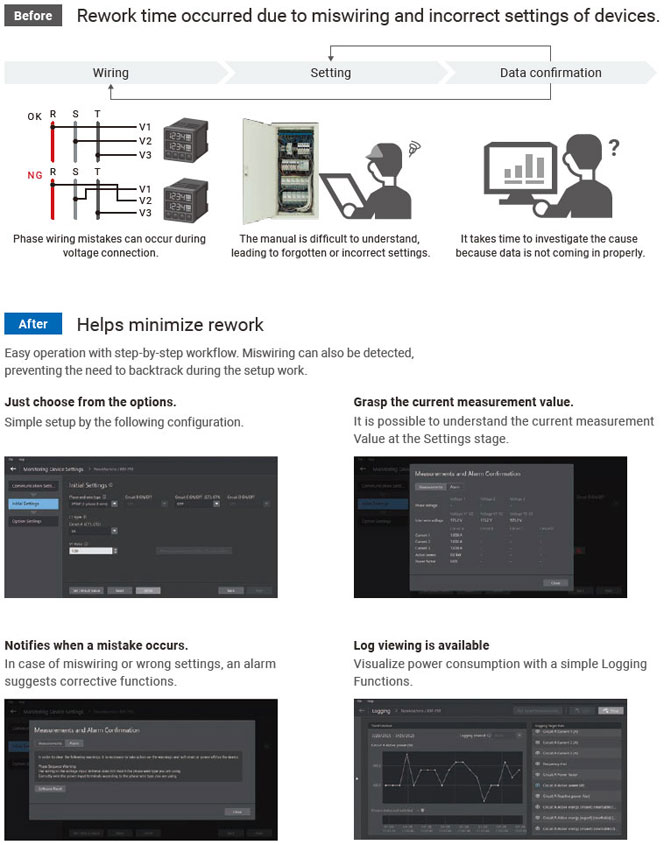

Miswiring and incorrect settings occurred cause a significant amount of rework in system construction.With KM-PM, even users without expertise in power measurement can easily operate the system thanks to its intuitive UI design, significantly reducing rework.

KM-PM Features 14

For building green control panels

Natural disasters caused by global warming and climate change have become global social issue, that drives over 150 countries and regions worldwide to take action toward decarbonization.Our goal is to reduce greenhouse gas (GHG) emissions toward by half through new ways of building control panels, that key figure of the manufacturing site.

KM-PM Features 15

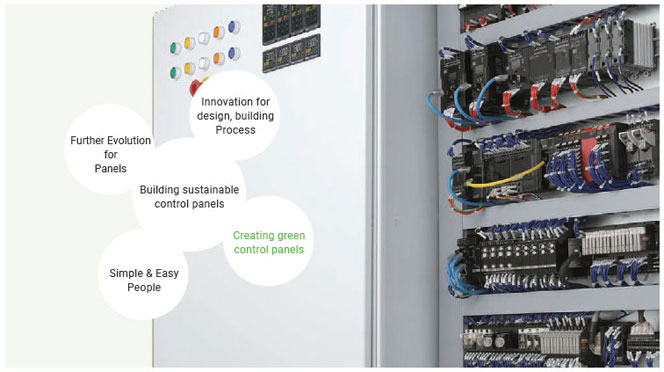

[Green] Creating green control panels

Reducing GHG emission of control panels to achieve carbon neutrality

This Value Design also integrate environment consideration concept that enable earth and user-friendly control panel building.

[Process] Innovation for design, building Process

Realize greatly reduces design/manufacturing work

eCAD library provided for all models greatly reduces design work. Push-In Plus technology requires only a single step, greatly reducing wiring work.

[Panel] Further Evolution for Panels

Realize compact & highly reliable control panels

Unified size and side-by-side mounting help delivering more compact control panels with additional functionality.OMRON Push-In Plus technology for easy wire insertion and firm wire holding ability.

[People] Simple & Easy People

Provide reliable and comfortable manufacturing for all people who deal with control panels

OMRON’s Push-In Plus technology is as easy as inserting to an earphone jack. This reduces the load on worker fingers.

Integrating green perspectives into Value Design

KM-PM Features 24

Value Design for Panel (Value Design) is the common concept shared across OMRON’s in-panel product specifications to deliver new value to your control panels.This Value Design also integrate environment consideration concept that enable earth and user-friendly control panel building.
