Magnetic Proximity Sensor
last update: December 17, 2014
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

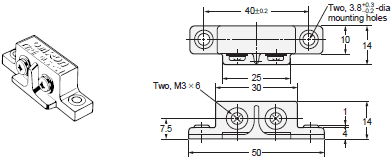

Note: Tighten each M3 screw of the terminal block to a torque of 0.59 N·m. max.

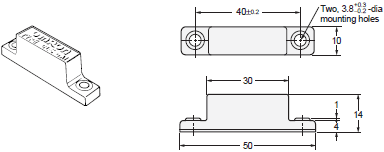

Note:The shape of the magnet is the same for Pre-wired Models and Terminal Block Models, but the magnet specifications are different.
