Latching Relay

MMK

Mechanically Latching Relays Based on the MM Power Relay

Item list of MMK

Related Contents

last update: April 2, 2018

(Unit: mm)

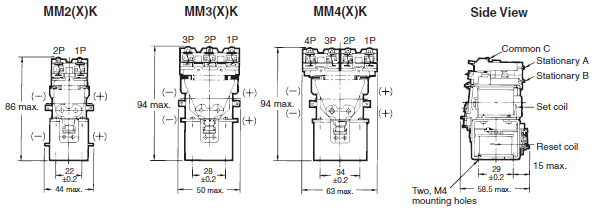

Open Relays with Solder Terminals

MM2(X)K, MM3(X)K, MM4(X)K

MMK Dimensions 2

Note: Connect the common (C) of MM[]XK to positive (+).

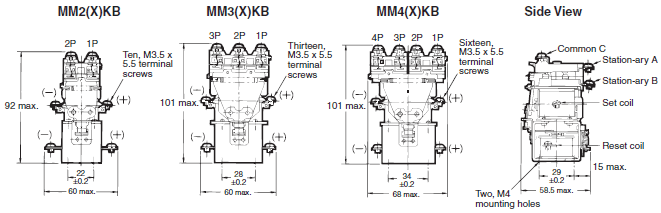

Open Relays with Screw Terminals

MM2(X)KB, MM3(X)KB, MM4(X)KB

MMK Dimensions 4

Note: Connect the common (C) of MM[]XKB to positive (+).

Mounting Holes (Direct Mounting)

Note: The tolerance is ±0.2.

MMK Dimensions 5

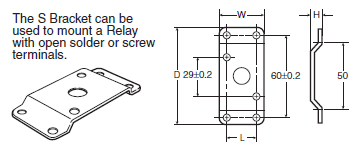

Mounting Bracket (S Bracket)

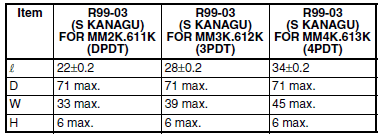

R99-03 (S KANAGU) FOR MM[]

MMK Dimensions 6
MMK Dimensions 7

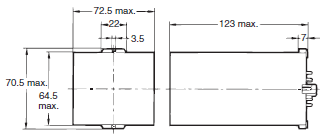

Cased Relays with Plug-in Terminal

MM2(X)KP

MMK Dimensions 9

Note: It is recommended that 55 mm min. is allowed for this side because the MM2XKP has a curved protective plate on
          the side.

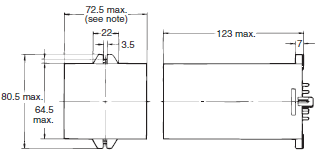

MM3(X)KP, MM4(X)KP

MMK Dimensions 10

Note: It is recommended that 73 mm min. is allowed for this side because the MM3XKP and MM4XKP have a curved
          protective plate on the side.

MM4KP-JD

MMK Dimensions 11

MM4XKP-JD

MMK Dimensions 12
