G3TA

Solid State Relays

G3TA

I/O SSRs That Mount to OMRON's G7TC I/O Block

Item list of G3TA

Related Contents

last update: September 24, 2012

(Unit: mm)

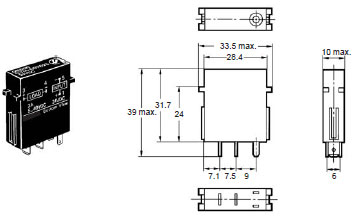

G3TA

G3TA Dimensions 2 G3TA_Dimensions

Connecting Sockets

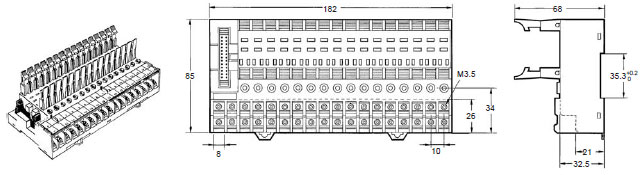

For Input (NPN, - Common) P7TF-IS16

G3TA Dimensions 5 P7TF-IS16_Dimensions

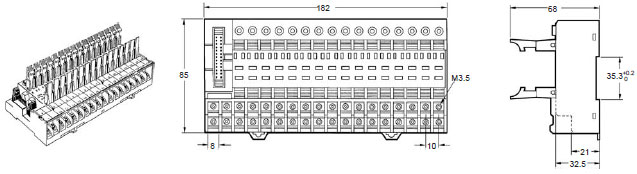

For Output (NPN, + Common) P7TF-OS16

G3TA Dimensions 7 P7TF-OS16_Dimensions

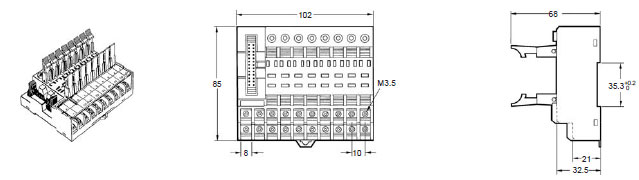

For Output (PNP, + Common) P7TF-OS08

G3TA Dimensions 9 P7TF-OS08_Dimensions

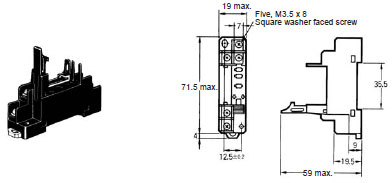

P7TF-O5

G3TA Dimensions 11 P7TF-O5_Dimensions

last update: September 24, 2012
