FAQ02090 of Solid-state Relays FAQ

FAQ No. FAQ02090

Primary Contents


Can Solid-state Relays for DC loads be connected to a negative power supply?

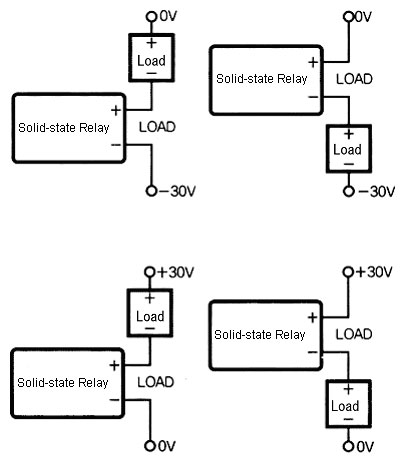

Connections can be made in any of the configurations shown in the following diagrams.

If the load has positive and negative terminals, match the polarity of Solid-state Relays when connecting it.
