Question

What does the time chart look like for a basic signal OFF-delay operation (operating mode D)?

Answer

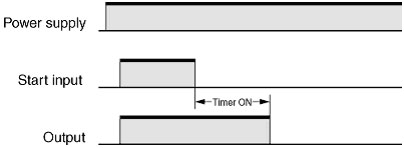

Timers Triggered by Start Input

D: Signal OFF-delay

Note:Start input is valid while the Timer is in operation.
