SitemapPhotoelectric Sensor with Built-in Amplifier (Ultracompact and Thin Type)
E3T
New Retro-reflective Sensors Added to the Series. Further Contributions to Equipment Downsizing.
Data Sheet (2330KB)
Quick links to 'E3T' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
E3T Pick up
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors
Through-beam Models (Side-view)

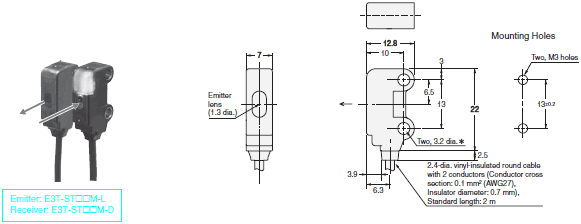

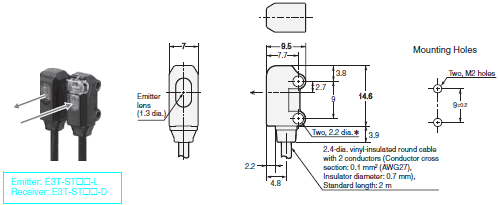

E3T-ST1[] (Emitter)
E3T-ST2[] (Emitter)
![E3T-ST1[] (Emitter)_Dim](img/409_dm_1.gif)
E3T-ST1[] (Receiver)
E3T-ST2[] (Receiver)
![E3T-ST1[] (Receiver)_Dim](img/409_dm_2.gif)
Through-beam Models (Flat)
E3T-FT1[] (Emitter)
E3T-FT2[] (Emitter)
![E3T-FT1[] (Emitter)_Dim](img/409_dm_3.gif)

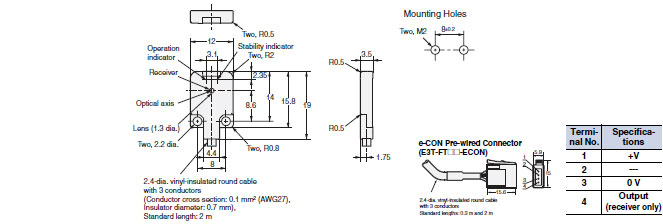

E3T-FT1[] (Receiver)
E3T-FT2[] (Receiver)
![E3T-FT1[] (Receiver)_Dim](img/409_dm_4.gif)
M12 Smartclick Pre-wired Connector Model
(E3T-ST[][]-M1TJ)
e-CON Pre-wired Connector Model
(E3T-ST[][]-ECON)
*Refer to Mounting the Sensor on Moving Parts on Data Sheet for details on Robotics Cable models.
Retro-reflective Models (Side-view)
E3T-SR4[]
![E3T-SR4[]_Dim](img/409_dm_8.gif)
Convergent-reflective Models (Side-view)

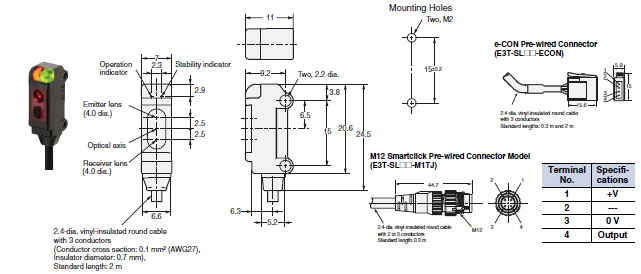

E3T-SL1[]
E3T-SL2[]
![E3T-SL1[]_Dim](img/409_dm_9.gif)
Diffuse-reflective Models (Flat)
E3T-FD1[]
![E3T-FD1[]_Dim](img/409_dm_10.gif)
M12 Smartclick Pre-wired Connector Model
(E3T-SR[][]-M1TJ/E3T-SL[][]-M1TJ/E3T-FD[][]-M1TJ)
e-CON Pre-wired Connector
(E3T-SR[][]-ECON/E3T-SL[][]-ECON/E3T-FD[][]-ECON)
*Refer to Mounting the Sensor on Moving Parts on Data Sheet for details on Robotics Cable models.
BGS Models (Flat)

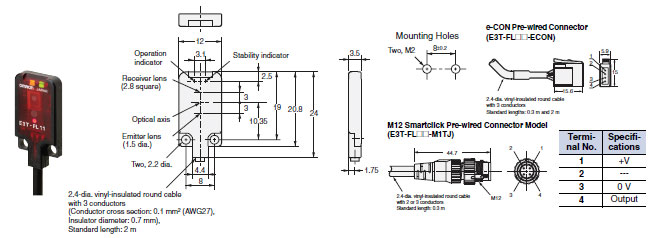

E3T-FL1[]
E3T-FL2[]
![E3T-FL1[]_Dim](img/409_dm_14.gif)
M12 Smartclick Pre-wired Connector Model
(E3T-FL[][]-M1TJ)
e-CON Pre-wired Connector
(E3T-FL[][]-ECON)
*Refer to Mounting the Sensor on Moving Parts on Data Sheet for details on Robotics Cable models.

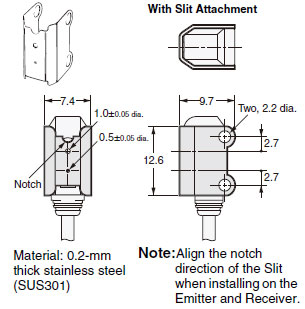

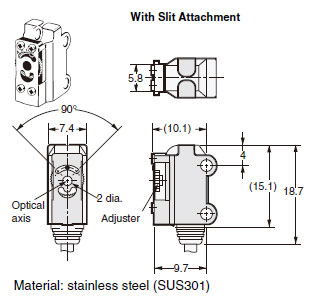

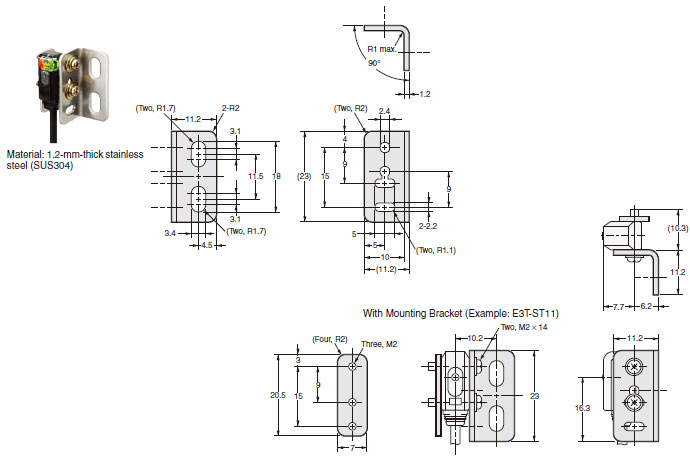

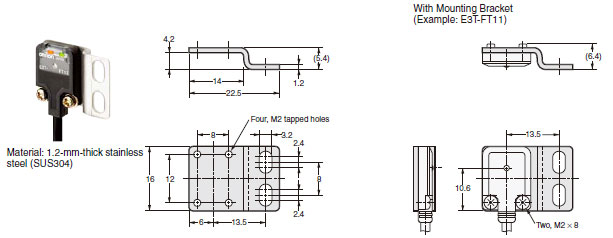

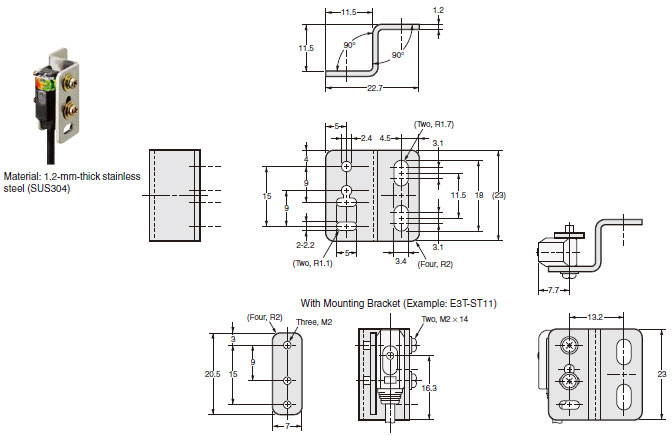

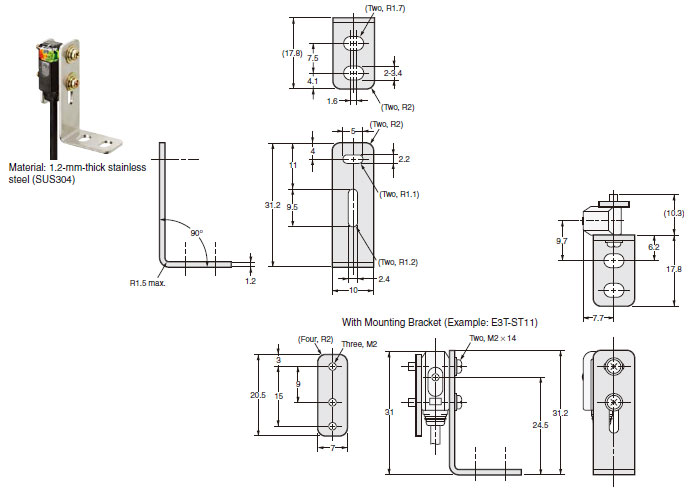

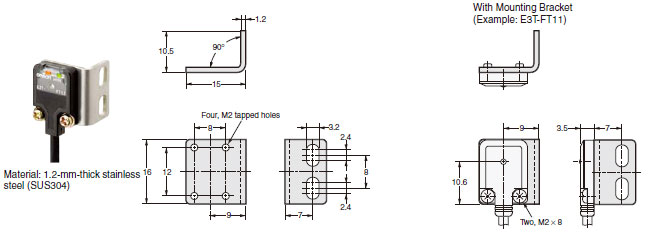

Accessories
Reflector (Provided with E3T-SR4[])

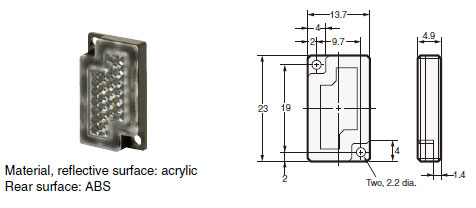

E39-R4
Material, reflective surface: acrylic
Rear surface: ABS
Reflector (Provided with E3T-SR4[]-S)

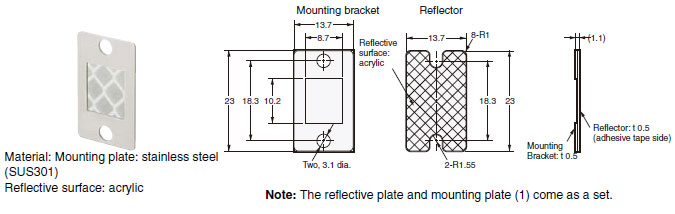

E39-R37-CA
Material: Mounting plate: stainless steel (SUS301)
Reflective surface: acrylic
Note:The reflective plate and mounting plate (1) come as a set.
Caution: All units are in millimeters unless otherwise indicated.
