A165S / W

Knob-type Selector Switch (Detachable) (Cylindrical 16-dia.)

A165S / W

Separate Construction with Cylindrical 16-dia. Body

Caution: All units are in millimeters unless otherwise indicated.

• The Dimension shows 2-switch outputs.
• The lamp terminal is not provided with non-lighted models.

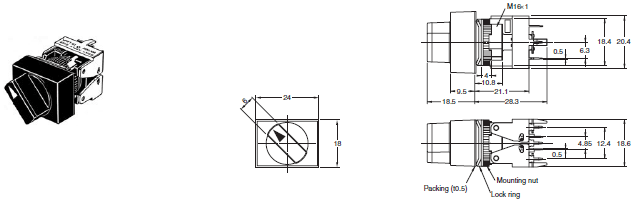

Rectangular A165[]-J
Solder terminals (tab terminals #110)

A165S / W Dimensions 2

Note: See below for panel cutouts.

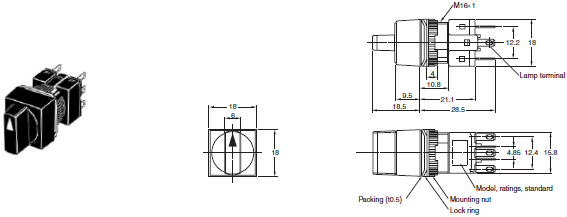

Square A165[]-A
Solder terminals (tab terminals #110)

A165S / W Dimensions 3

Note: See below for panel cutouts.

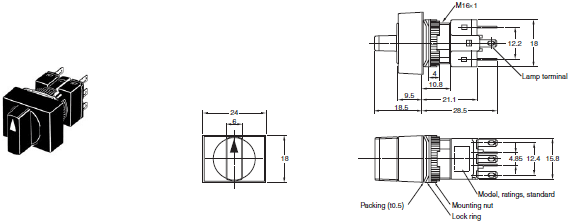

Round A165[]-T
Solder terminals (tab terminals #110)

A165S / W Dimensions 4

Note: See below for panel cutouts.

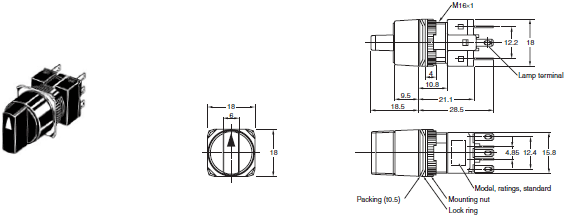

Rectangular A165[]-J
PCB terminals

A165S / W Dimensions 5

The lamp terminal is not also provided with nonlighted models.
Note: See below for panel cutouts.

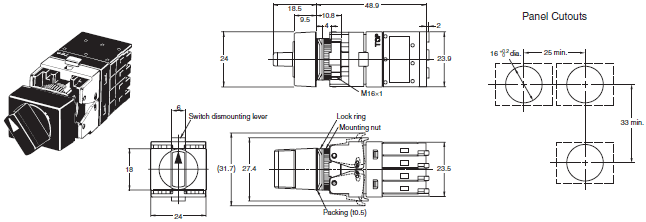

Rectangular A165W[]-T
Reduced-voltage lighting solder terminals (tab terminals #110)

A165S / W Dimensions 6

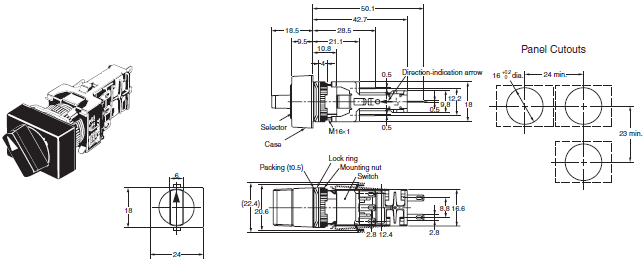

Rectangular A165[]-2S
Screw-Less Clamp

A165S / W Dimensions 7

The lamp terminal is also provided with nonlighted models.

Panel Cutouts

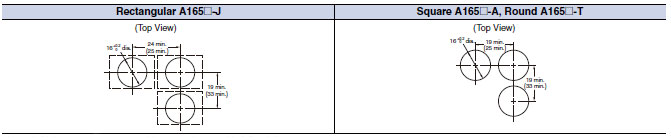

Models with Solder Terminals and Models with Screw-less Clamp Connectors

A165S / W Dimensions 9

Note: 1. Make sure the thickness of the mounting panel is 0.5 to 3.2 mm.
          2. If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after
               coating.
          3. Figures in parentheses are for screw-less clamp connectors.

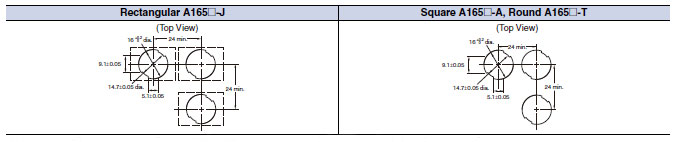

Models with PCB Terminals

A165S / W Dimensions 10

Note: 1. Ensure that the variation in the distance between the centers of neighboring mounting holes is less than ±0.1
              mm.
          2. Make sure the thickness of the mounting panel is 0.5 to 3.2 mm. If, however, a Switch Guard or Dust Cover is
               used, the thickness of the mounting panel must be 0.5 to 2 mm.
          3. If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after
               coating.
