G3PE (Three-phase)

Solid State Contactors for Heaters

G3PE (Three-phase)

Compact, Slim-profile SSRs with Heat Sinks. Solid State Contactors for Three-phase Heaters Reduced Installation Work with DIN Track Mounting.

Caution: All units are in millimeters unless otherwise indicated.

Solid State Relays

Models with DIN Track Mounting
G3PE-215B-3N
G3PE-215B-2N
G3PE-225B-2N
G3PE-515B-3N
G3PE-515B-2N
G3PE-525B-2N

G3PE (Three-phase) Dimensions 2

Models with DIN Track Mounting
G3PE-225B-3N
G3PE-235B-2N
G3PE-525B-3N
G3PE-535B-2N

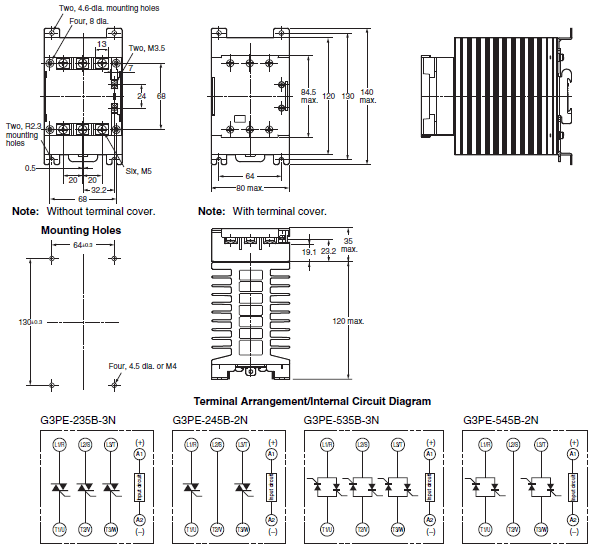

G3PE (Three-phase) Dimensions 3

Models with DIN Track Mounting
G3PE-235B-3N
G3PE-245B-2N
G3PE-535B-3N
G3PE-545B-2N

G3PE (Three-phase) Dimensions 4

Models with DIN Track Mounting
G3PE-245B-3N
G3PE-545B-3N

G3PE (Three-phase) Dimensions 5

Models with Screw Mounting
G3PE-215B-2
G3PE-515B-2

G3PE (Three-phase) Dimensions 6

Models with Screw Mounting
G3PE-215B-3
G3PE-225B-2
G3PE-515B-3
G3PE-525B-2

G3PE (Three-phase) Dimensions 7

Models with Screw Mounting
G3PE-225B-3
G3PE-235B-2
G3PE-525B-3
G3PE-535B-2

G3PE (Three-phase) Dimensions 8

Models with Screw Mounting
G3PE-235B-3
G3PE-245B-2
G3PE-535B-3
G3PE-545B-2

G3PE (Three-phase) Dimensions 9

Models with Screw Mounting
G3PE-245B-3
G3PE-545B-3

G3PE (Three-phase) Dimensions 10

Models with Externally Attached Heat Sinks
G3PE-215B-3H
G3PE-215B-2H
G3PE-225B-3H
G3PE-225B-2H
G3PE-235B-3H
G3PE-235B-2H
G3PE-245B-3H
G3PE-245B-2H
G3PE-515B-3H
G3PE-515B-2H
G3PE-525B-3H
G3PE-525B-2H
G3PE-535B-3H
G3PE-535B-2H
G3PE-545B-3H
G3PE-545B-2H

G3PE (Three-phase) Dimensions 11

Accessories (Order Separately)

Heat Sink
Y92B-P50 (Mounts to DIN Track.)
For G3PE-215B-2H and G3PE-515B-2H

G3PE (Three-phase) Dimensions 13

Heat Sink
Y92B-P100
For G3PE-215B-3H, G3PE-225B-2H, G3PE-515B-3H, and G3PE-525B-2H

G3PE (Three-phase) Dimensions 14

Heat Sink
Y92B-P150
For G3PE-225B-3H, G3PE-235B-2H, G3PE-525B-3H, and G3PE-535B-2H

G3PE (Three-phase) Dimensions 15

Heat Sink
Y92B-P200
For G3PE-235B-3H, G3PE-245B-2H, G3PE-535B-3H, and G3PE-545B-2H

G3PE (Three-phase) Dimensions 16

Heat Sink
Y92B-P250
For G3PE-245B-3H and G3PE-545B-3H

G3PE (Three-phase) Dimensions 17
