XS5, XS6

Industrial Ethernet Cables

XS5, XS6

Cables and Connectors for EtherCAT® and Other Industrial Ethernet Networks

(Unit: mm)

Cables with Standard RJ45 Connectors

Cable with Connectors on Both Ends (RJ45/RJ45)

XS6W-6LSZH8SS[][][][]CM-[]
XS6W-5PUR8SS[][][][]CM-G

XS5, XS6 Dimensions 2

Cables with Rugged RJ45 Connectors and Cables with M12 Connectors

Cable with Plug on One End (M12 Straight)

XS5H-T421-[]M0-K

XS5, XS6 Dimensions 4

Cable with Plugs on Both End (M12 Straight/M12 Straight)

XS5W-T421-[]M2-K
XS5W-T421-[]M2-KR

XS5, XS6 Dimensions 5

Cable with Plugs on Both Ends (M12 Straight/RJ45)

XS5W-T421-[]MC-K
XS5W-T421-[]MC-KR

XS5, XS6 Dimensions 6

Cable with Plug on One End and Socket on Other End (M12 Straight/M12 Straight)

XS5W-T421-[]M1-K
XS5W-T421-[]M1-KR

XS5, XS6 Dimensions 7

Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45)

XS5W-T421-[]ME-K

XS5, XS6 Dimensions 8

Cable with Plug One End (M12 Right-angle)

XS5H-T422-[]M0-K

XS5, XS6 Dimensions 9

Cable with Plugs on Both Ends (M12 Right-angle/M12 Right-angle)

Wiring XS5W-T422-[]M2-K

XS5, XS6 Dimensions 10

Cable with Plugs on Both Ends (M12 Right-angle/RJ45)

XS5W-T422-[]MC-K

XS5, XS6 Dimensions 11

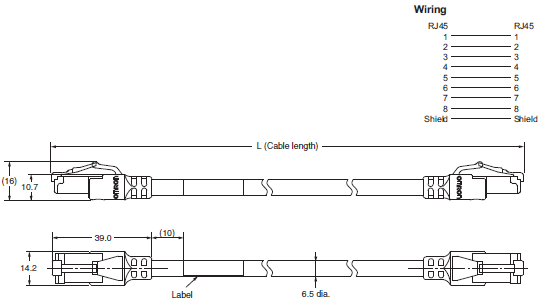

Cable with Plugs on Both Ends (RJ45/RJ45)

XS5W-T421-[]MD-K
XS5W-T421-[]MD-KR

XS5, XS6 Dimensions 12

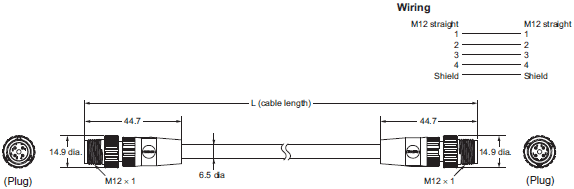

Cable with Plugs on Both Ends (M12 Straight/M12 Straight)

Shield Strengthening Cable
XS5W-T421-[]M2-SS

XS5, XS6 Dimensions 13

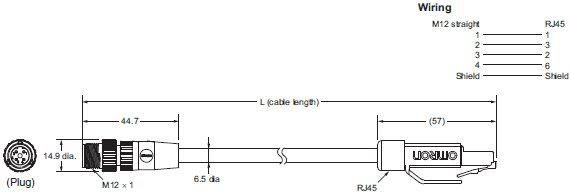

Cable with Plugs on Both Ends (M12 Straight/RJ45)

Shield Strengthening Cable
XS5W-T421-[]MC-SS

XS5, XS6 Dimensions 14

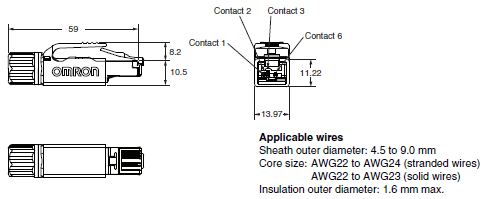

RJ45 Assembly Connector

XS6G-T421-1

XS5, XS6 Dimensions 16

Applicable wires
Sheath outer diameter: 6.1 to 6.9 mm
Core size:
   AWG22 to AWG24 (stranded wires)
   AWG22 to AWG23 (solid wires)
Insulation outer diameter: 1.6 mm max.

M12 Connector for Panel Mounting

XS5P-T42[]-5

XS5, XS6 Dimensions 17

Note 1: The panel cutout dimension is the same for Front-locking and Rearlocking Connectors.
Note 2: Rotational positioning is not possible for connector rotation.

M12 Panel-mounting PCB Straight Terminals

XS5P-T426-1

XS5, XS6 Dimensions 19
