Performance Specifications

Display

Item		Specification
Item		NA5-15W	NA5-12W	NA5-9W	NA5-7W
Display panel *1	Display device	TFT LCD
	Screen size	15.4 inches	12.1 inches	9.0 inches	7.0 inches
	Resolution	1,280 × 800 dots (horizontal × vertical)		800 × 480 dots (horizontal × vertical)
	Colors	16,770,000 colors (24 bit full colors)
	Effective display area	331 × 207 mm (horizontal × vertical)	261 × 163 mm (horizontal × vertical)	197 × 118 mm (horizontal × vertical)	152 × 91 mm (horizontal × vertical)
	View angles	Left: 60°, Right: 60°, Top: 60°, Bottom: 60°
*Backlight 2**	Life	50,000 hours min. *3
	Brightness adjustment	200 levels
	Type	LED
Front panel indicators *4	RUN	Lit green: Normal operation Lit red: Error

*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and
dark pixels fall within the following standard ranges.

Model	Standard range
NA5-15W[][][][]-V1 NA5-12W[][][][]-V1 NA5-9W[][][][]-V1 NA5-7W[][][][]-V1	Number of light and dark pixels: 10 or less. (There must not be 3 consecutive light/dark pixels.)

*2. The backlight can be replaced at an OMRON maintenance base.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. The life expectancy
is drastically shortened if Programmable Terminal is used at high temperatures.
*4. The brightness of the front panel indicators is also adjustable when you adjust the brightness of the backlight.

Operation

Item	Specification
Item	NA5-15W	NA5-12W	NA5-9W	NA5-7W
Touch panel	Method: Analog resistive membrane type
	Resolution: 16,384 × 16,384
	Life: 1,000,000 operations
*Function keys 1**	3 inputs (capacitance inputs)

*1. Each function key has blue indicator. The brightness of the function key indicators is also adjustable when you adjust
the brightness of the backlight.

Data Capacity

Item	Specification
Item	NA5-15W	NA5-12W	NA5-9W	NA5-7W
User data capacity	256 MB

External Interfaces

Item		Specifications (Same for all models.)
Ethernet ports	Applications	Port 1: Connecting to anything other than the Sysmac Studio, e.g., device connections and VNC clients Port 2: Connecting to the Sysmac Studio in addition to the applications of port 1.
	Number of ports	2 ports
	Compliant standards	IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), and IEEE 802.3ab (1000Base-T)
	Transmission media	Shielded twisted-pair (STP) cable: Category 5, 5e, or higher
	Transmission distance	100 m
	Connector	RJ-45 8P8C modular connector
USB host ports 1 2	Applications	USB Memory Device, keyboard, or mouse
	Number of ports	2 ports
	Compliant standards	USB 2.0
	Transmission distance	5 m max.
	Connector	Type-A connector
USB slave port *1	Applications	Sysmac Studio connection
	Number of ports	1 port
	Compliant standards	USB 2.0
	Transmission distance	5 m max.
	Connector	Type-B connector
Serial port	Applications	Device Connection
	Number of ports	1 port
	Compliant standards	RS-232C
	Transmission distance	15 m max.
	Connector	D-DUB 9-pin female connector
SD Memory Card slot	Applications	To transfer or store the project or to store log data.
	Number of slots	1 slot
	Compliant standards	SD/SDHC

*1. Connection to all USB 2.0-compliant devices is not guaranteed.
*2. Use a USB memory for temporary applications such as transferring data.

General Specifications

Item		Specification
Item		NA5-15W	NA5-12W	NA5-9W	NA5-7W
Rated supply voltage		24 VDC
Allowable power supply voltage range		19.2 to 28.8 VDC (24 VDC ±20%)
Allowable momentary power interruption time		Operation for momentary power interruption is not specified.
Power consumption		29 W max.	25 W max.	23 W max.	19 W max.
Ambient operating temperature		0 to 50°C 1 2
Ambient storage temperature		-20 to +60°C *3
Ambient operating humidity		10 to 90% *2 Must be no condensation.
Atmosphere		Must be free from corrosive gases.
Pollution degree		2 or less: Meets IEC 61010-2-201.
Noise immunity		2 kV on power supply line (Conforms to IEC 61000-4-4.)
Vibration resistance (during operation)		Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s² for 100 minutes each in X, Y, and Z directions (Time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 min.)
Shock resistance (during operation)		Conforms to IEC 60028-2-27. 147 m/s² 3 times each in X, Y, and Z directions
Dimensions	Metal case	420 × 291 × 69 mm (W × H × D)	340 × 244 × 69 mm (W × H × D)	290 × 190 × 69 mm (W × H × D)	236 × 165 × 69 mm (W × H × D)
Dimensions	Plastic case	414 × 287 × 69 mm (W × H × D)	333 × 240 × 69 mm (W × H × D)	283 × 185 × 69 mm (W × H × D)	220 × 160 × 69 mm (W × H × D)
Panel cutout dimensions		392 +1,0 × 268 +1,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4	310 +1,0 × 221 +1,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4	261 +1,0 × 166 +1,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4	197 +0.5,0 × 141 +0.5,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4
Weight	Metal case	3.2 kg max.	2.4 kg max.	1.8 kg max.	1.4 kg max.
Weight	Plastic case	2.6 kg max.	1.9 kg max.	1.3 kg max.	1.0 kg max.
Degree of protection		IP65 oil-proof type, UL Type 4X *4 (Front-panel controls) To reinstall the NA Unit in a panel, contact your OMRON representative for replacement of the rubber packing.
Battery life		Battery life: 5 years at 25°C The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.)
International standards 5 6		EU UKCA Shipbuilding standards LR, DNV, and UK 7 IP65 oil-proof, UL Type 4X 4 (Front-panel controls) cULus KC RCM

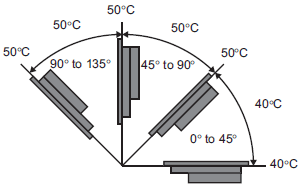

*1. The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
• The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.

*2. Use the Programmable Terminal within the following temperature and humidity ranges.

*3. Store the Programmable Terminal within the following temperature and humidity ranges.

*4. To conform to UL Type 4X standards, you may have to use the NA-[]WATW01 High-pressure Waterproof Attachment (sold separately).
When the NA-[]WATW01 High-pressure Waterproof Attachment is used, the panel thickness is between 1.6 to 4.5 mm.
*5. Check with your OMRON representative or refer to the following OMRON website for the latest information on the
applicable standards for each model: www.ia.omron.com.
*6. Use power supply Class 2 to conform to UL Standards.
*7. Shipbuilding standards exclude NA5-[][][][][][]-V1-P.

Version Information

NA series and Programming Devices

NA series		Corresponding unit versions/version
Model	NA system version	NJ/NX/NY-series Controller NX701-[][][][] NY512-[][][][] NX502-[][][][] NY532-[][][][] NX102-[][][][] NJ501-[][][][] NX1P2-[][][][] NJ301-[][][][] NX-CSG320 NJ101-[][][][]	Sysmac studio
NA5-[][][][][][]-V1(-P)	1.17 or later	NX502: 1.60 or later	1.54 or higher
	1.10 or later	NX-CSG320: 1.00 or later	1.24 or higher
	1.09 or later	NX102: 1.30 or later	1.23 or higher
	1.08 or later	NX1P2: 1.13 or later NY512: 1.12 or later NY532: 1.12 or later NX701: 1.10 or later NJ101: 1.10 or later NJ501: 1.01 or later NJ501 Database Connection: 1.05 or later NJ301: 1.01 or later	1.40 or higher

Supported Devices

NA5-[][][][][][][]-V1(-P)

Manufacturer	Models	Connection method	Communications driver
OMRON	NX102-[][][][] NX1P2-[][][][] NX502-[][][][] NX701-[][][][] NJ501-[][][][] NJ301-[][][][] NJ101-[][][][] NY512-[][][][] NY532-[][][][] NX-CSG320	Built-in EtherNet/IP port	Ethernet
	NX502-[][][][]	NX-EIP201	Ethernet
	CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35	Built-in EtherNet/IP port	CIP Ethernet
	CJ2H-CPU64/65/66/67/68 CJ2M-CPU11/12/13/14/15	CJ1W-EIP21S
	CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35	CJ1W-EIP21 *1
	CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35	Built-in EtherNet/IP port	FINS Ethernet
	CJ1H-CPU65H/66H/67H CJ1H-CPU65H/66H/67H-R CJ1G-CPU42H/43H/44H/45H CJ1M-CPU11/12/13/21/22/23 CJ2H-CPU64/65/66/67/68(-EIP) CJ2M-CPU11/12/13/14/15 CJ2M-CPU31/32/33/34/35	CJ1W-ETN21 1 CJ1W-EIP21 1
	CJ2H-CPU64/65/66/67/68 CJ2M-CPU11/12/13/14/15	CJ1W-EIP21S
	CS1G-CPU42H/43H/44H/45H CS1H-CPU63H/64H/65H/66H/67H	CS1W-ETN21 1 CS1W-EIP21 1
	CS1G-CPU43H/44H/45H CS1H-CPU63H/64H/65H/66H/67H	CS1W-EIP21S
	CS1D-CPU65H/67H/67HA/68HA/44SA/67SA	CS1W-ETN21 1 CS1D-ETN21D CS1W-EIP21 1 CS1W-EIP21S
	CP1H-[][][][][]-[]	CP1W-CIF41
	CP1L-[][][][][]-[] CP2E-N[][]D[]-[]	Built-in Ethernet port CP1W-CIF41
	CK3E-1[]10 CK3M-CPU1[]1	Built-in Ethernet port	Modbus/TCP
	CS1G-CPU42H/43H/44H/45H CS1H-CPU63H/64H/65H/66H/67H CS1D-CPU65H/67H/67HA/68HA/44SA/57SA	Built-in RS-232C port CS1W-SCB21-V1 CS1W-SCB41-V1 CS1W-SCU21-V1 CS1W-SCU31-V1	Host Link
	CJ2H-CPU64/65/66/67/68(-EIP) CJ2M-CPU11/12/13/14/15/31/32/33/34/35	Built-in RS-232C port CJ1W-SCU22 CJ1W-SCU32 CJ1W-SCU42
	CP1L-[][][][][]-[] CP1H-[][][][][]-[]	CP1W-CIF01 CP1W-CIF11 CP1W-CIF12-V1
	CP2E-[][][]D[]-[]	Built-in RS-232C port CP1W-CIF01 CP1W-CIF11 CP1W-CIF12-V1 CP2W-CIFD1 CP2W-CIFD2

*1. Product no longer available to order.

NA-RTLD[][]

Manufacturer	Models	Connection method	Communications driver
OMRON	NX102-[][][][] NX1P2-[][][][] NX502-[][][][] NX701-[][][][] NJ501-[][][][] NJ301-[][][][] NJ101-[][][][] NY512-[][][][] NY532-[][][][] NX-CSG320	Built-in EtherNet/IP port	Ethernet
OMRON	NX502-[][][][]	NX-EIP201	Ethernet
