Multi-channel Power Controller
Related Contents
last update: December 22, 2021
| Name | Number of control
channels |
Heater burnout
detection |
Load power
supply voltage |

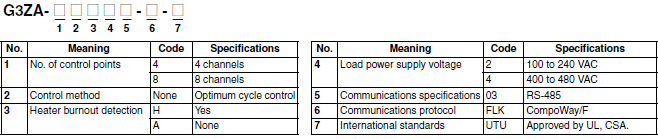

Model |
|---|---|---|---|---|
| Multi-channel Power Controller | 4 | Supported | 100 to 240 VAC | G3ZA-4H203-FLK-UTU |
| 400 to 480 VAC | G3ZA-4H403-FLK-UTU | |||
| 8 | Not supported | 100 to 240 VAC | G3ZA-8A203-FLK-UTU | |
| 400 to 480 VAC | G3ZA-8A403-FLK-UTU |
Note: When using the heater burnout detection function, CTs must be ordered separately.
| Name | Hole diameter | Detection current | Model |
|---|---|---|---|
| Current Transformer (CT) | 5.8 dia. | 0 to 50 A | E54-CT1 |
| 12.0 dia. | 0 to 50 A | E54-CT3 | |
| 30.0 dia. | 0 to 150 A | G3ZA-CT-150L |
| Name | Model |
|---|---|
| DIN Track | PFP-100N |
| PFP-50N | |
| End Plates (stoppers) | PFP-M |
