E2V-X[]
All Metals and Long-distance Types
![E2V-X[]](/Images/l_1937-13-118714-198x198.jpg)
Aluminum and Iron Both Detectable from Long Distances
Related Contents
- Proximity Sensors
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: May 23, 2013
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors
Pre-wired Models

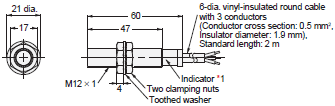

E2V-X2/X4
![E2V-X[] Dimensions 4](/Images/1937_dm_113-107846.gif)

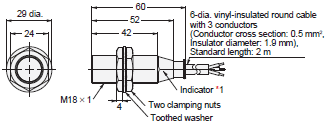

E2V-X5/X8
![E2V-X[] Dimensions 5](/Images/1937_dm_213-107850.gif)

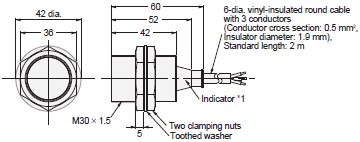

E2V-X10/X15
![E2V-X[] Dimensions 6](/Images/1937_dm_313-107854.gif)
*1 NO Models: Operation indicator (yellow) (flashing)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
Pre-wired Connector Models

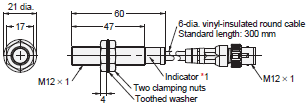

E2V-X4-M1TJ
![E2V-X[] Dimensions 8](/Images/1937_dm_413-107848.gif)

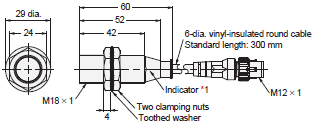

E2V-X8-M1TJ
![E2V-X[] Dimensions 9](/Images/1937_dm_513-107852.gif)

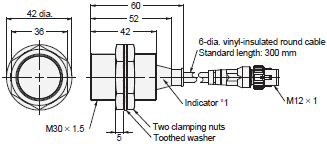

E2V-X15-M1TJ
![E2V-X[] Dimensions 10](/Images/1937_dm_613-107856.gif)
*1 NO Models: Operation indicator (yellow) (flashing)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
Connector Models

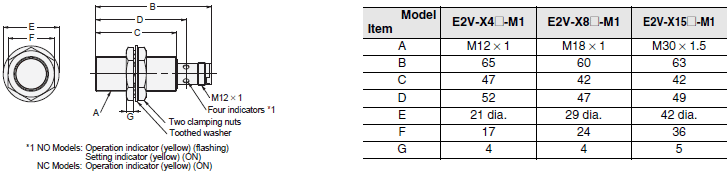

E2V-X[][]-M1
![E2V-X[] Dimensions 12](/Images/1937_dm_713-107858.gif)
*1 NO Models: Operation indicator (yellow) (flashing)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)
Setting indicator (yellow) (ON)
NC Models: Operation indicator (yellow) (ON)

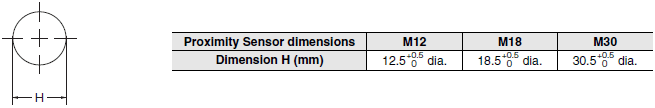

Mounting Hole Dimensions
![E2V-X[] Dimensions 13](/Images/1937_dm_813-107862.gif)
