MK-S
General-purpose Relays
New Super MK Relays. Models with Latching Lever Added to the Series.
Related Contents
- General Purpose Relays
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: May 27, 2024

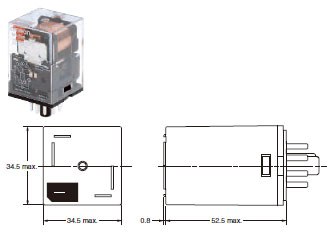

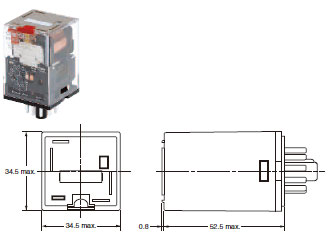

Models without Latching Lever
Models with Latching Lever
Sockets

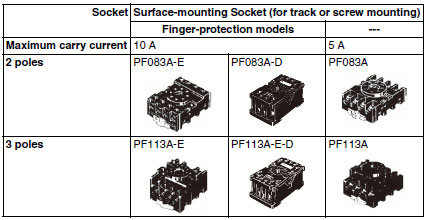

See below for Socket dimensions.
Note: Use the Surface-mounting Sockets (i.e., finger-protection models) with "-E" at the end of the model number. When
using the PF083A and PF113A, be sure not to exceed the Socket's maximum carry current of 5 A. Using at a current
exceeding 5 A may lead to burning. Round terminals cannot be used for finger-protection models. Use Y-shaped
terminals.
using the PF083A and PF113A, be sure not to exceed the Socket's maximum carry current of 5 A. Using at a current
exceeding 5 A may lead to burning. Round terminals cannot be used for finger-protection models. Use Y-shaped
terminals.

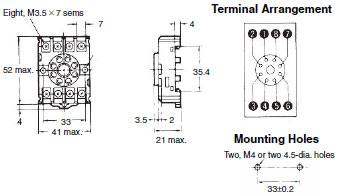

PF083A-E (Conforming to EN 50022)

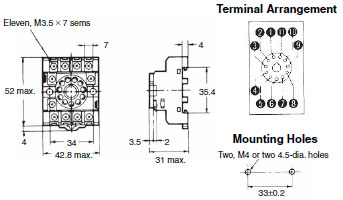

PF113A-E (Conforming to EN 50022)

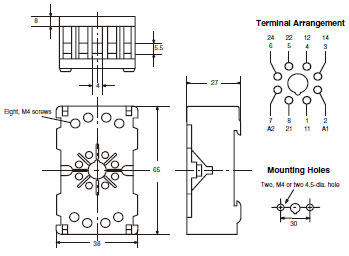

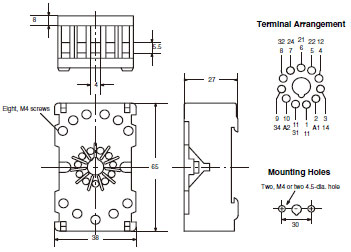

PF083A-D
PF113A-D
Hold-down Clips
PFC-A1
(2 pieces per set)

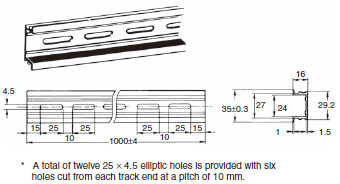

Mounting Tracks

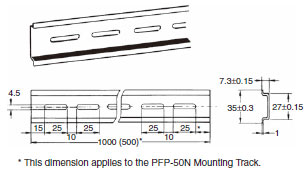

PFP-100N, PFP-50N
(Conforming to EN 50022)
PFP-100N2
(Conforming to EN 50022)

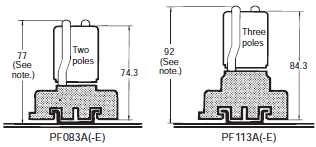

Mounting Height with Sockets
Surface-mounting Sockets
Note: PF083A(-E) and PF113A(-E) allow either track or screw mounting.
