Global(Unit: mm)
BF-[](R) / BS-1(T)
Electrode Holder
 / BS-1(T)](/Images/l_255-13-118552-198x198.jpg)
Complete Lineup for Use in High-temperature, High-pressure Environments or Where Exposed to Chemicals
Related Contents
- Level Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 7, 2015

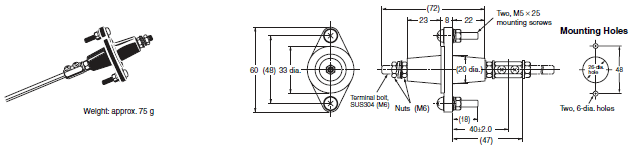

BF-1
 / BS-1(T) Dimensions 1](/Images/bf-_%28r%29_bs-1%28t%29_dm_113-109311.gif)

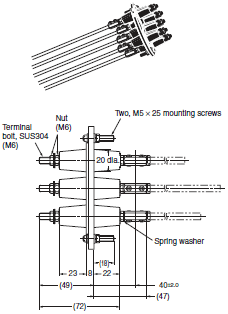

BF-3(R)
BF-5(R)
 / BS-1(T) Dimensions 2](/Images/bf-_%28r%29_bs-1%28t%29_dm_213-109313.gif)

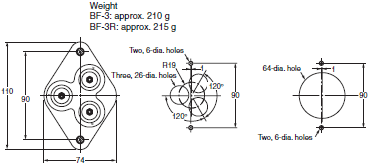

BF-3(R)
 / BS-1(T) Dimensions 3](/Images/255_dm_313-109315.gif)

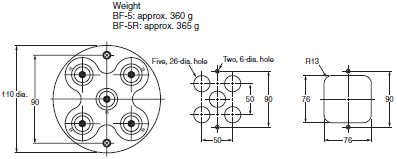

BF-5(R)
 / BS-1(T) Dimensions 4](/Images/255_dm_413-109317.gif)

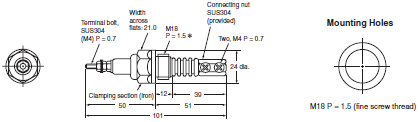

BS-1
 / BS-1(T) Dimensions 6](/Images/255_dm_613-109321.gif)
* If it is not necessary to seal the tank inside and outside.
The Electrode can be secured with F03-17 Nuts. (Refer to Data Sheet.)
The Electrode can be secured with F03-17 Nuts. (Refer to Data Sheet.)

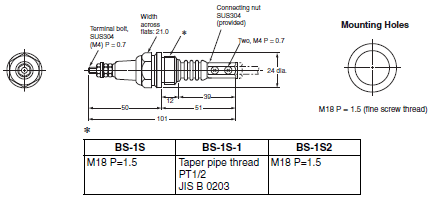

BS-1S
BS-1S-1
BS-1S2
 / BS-1(T) Dimensions 7](/Images/255_dm_713-109323.gif)

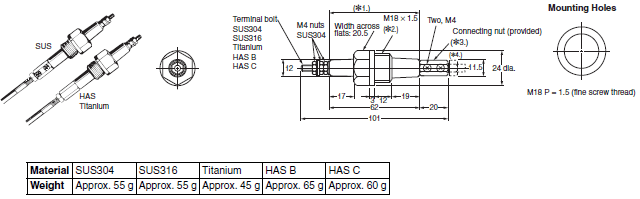

BS-1T
 / BS-1(T) Dimensions 8](/Images/255_dm_813-109324.gif)
*1. All of the clamping section is made of fluororesin.
*2. If it is not necessary to seal the tank inside and outside.
The Electrode can be secured with F03-18 Nuts. (Refer to Data Sheet.)
*3. The material of the Connecting Nuts is the same as the material of the BS-1T. Connecting Nuts made of HAS B,
HAS C, or titanium, however, do not have the screw or screw hole labeled 2-M4 in the figure.
*4. The section shown with dotted lines is sold separately.
*2. If it is not necessary to seal the tank inside and outside.
The Electrode can be secured with F03-18 Nuts. (Refer to Data Sheet.)
*3. The material of the Connecting Nuts is the same as the material of the BS-1T. Connecting Nuts made of HAS B,
HAS C, or titanium, however, do not have the screw or screw hole labeled 2-M4 in the figure.
*4. The section shown with dotted lines is sold separately.
last update: October 7, 2015
