G3RZ

Power MOS FET Relays

G3RZ

Power MOS FET Relays with the Same Shape as the G2R for Both AC and DC, Capable of 1 A Load Switching

Item list of G3RZ

last update: November 18, 2024

(Unit: mm)

Relay

G3RZ-201SLN

G3RZ Dimensions 2

Track/Surface Mounting Sockets

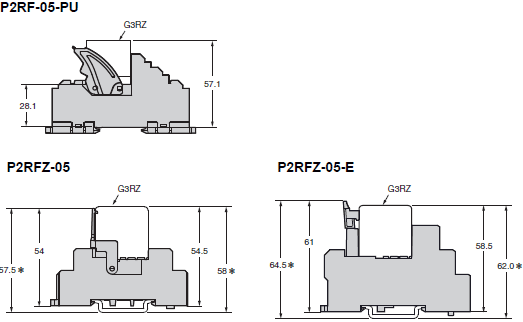

P2RF-05-PU

G3RZ Dimensions 4

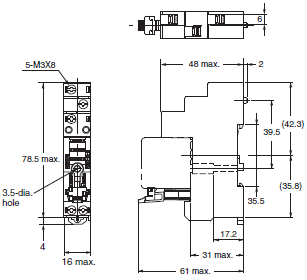

P2RFZ-05-E

G3RZ Dimensions 5

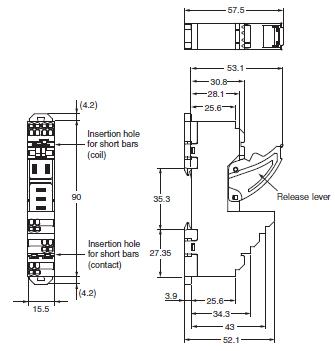

P2RFZ-05

G3RZ Dimensions 6

Mounting Height of Relay with Track/Surface Mounting Sockets

G3RZ Dimensions 7

* These are values when using the DIN track PFP-[]N.
Heights become higher by approximately 9 mm when using PFP-[]N2.

Back-connecting Sockets

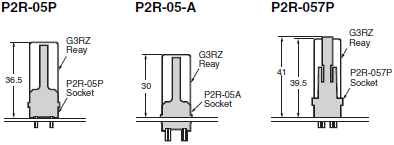

P2R-05P (1-pole)

G3RZ Dimensions 9

P2R-057P (1-pole)

G3RZ Dimensions 10

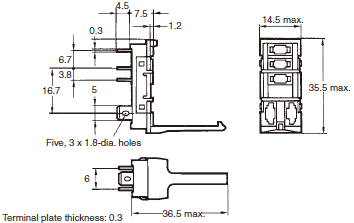

P2R-05A (1-pole)

G3RZ Dimensions 11

Mounting Height of Relay with Back-connecting Sockets

G3RZ Dimensions 12

Mounting Tracks

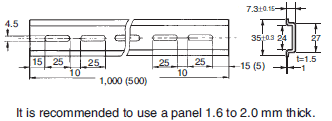

PFP-100N, PFP-50N

G3RZ Dimensions 14

PFP-100N2

G3RZ Dimensions 15

End Plate

PFP-M

G3RZ Dimensions 16

Spacer

PFP-S

G3RZ Dimensions 17

Mounting Plate

P2R-P

G3RZ Dimensions 18
