G3RZ

Power MOS FET Relays

G3RZ

Power MOS FET Relays with the Same Shape as the G2R for Both AC and DC, Capable of 1 A Load Switching

Item list of G3RZ

Related Contents

last update: November 18, 2024

Model Number Legend

G3RZ Lineup 1

Ordering Information

List of Models

Insulation method Zero cross
function		 Operation
Indicator		 Applied output load Input rated
voltage		 Model
Photovoltaic coupler No Yes 1.0 A,
5 to 240 VAC,
or 5 to 100 VDC		 5 VDC G3RZ-201SLN DC5
12 VDC G3RZ-201SLN DC12
24 VDC G3RZ-201SLN DC24

Accessories (Order Separately)

Connection Sockets

Classification Terminal type Appearance Model
Front-mounting Screw terminals 2809_lu_3_1 P2RFZ-05
Screw terminals
(finger protection structure)		 2809_lu_3_3 P2RFZ-05-E
Push-In Plus terminal blocks 2809_lu_3_4 P2RF-05-PU
Back-mounting Relays with PCB Terminals 2809_lu_3_5 P2R-05P
2809_lu_3_6 P2R-057P
Solder terminals 2809_lu_3_7 P2R-05A

For Push-In Plus Terminal Block Sockets

Short Bars

Applicable
sockets		 Pitch Application Shape/external
dimensions		 Number
of poles		 L
(Length)		 Insulation
color		 Short Bars
Model*1
P2RF-05-PU 7.75
mm		 Bridging
contact
terminals
(common)		 2809_lu_4_1 2 15.1 Red (R)
Blue (S)
Yellow(Y)		 PYDN-7.75-020[]
3 22.85 PYDN-7.75-030[]
4 30.6 PYDN-7.75-040[]
20 154.6 PYDN-7.75-200[]
15.5
mm		 For Coil
terminals		 2809_lu_4_2 8 115.55 PYDN-15.5-080[]

*1. Replace the box ([]) in the model number with the code for the covering color. []Color selection: R = Red, S = Blue,
      Y = Yellow

Labels

Applicable sockets Model
P2RF-05-PU XW5Z-P4.0LB1
(1 sheet/60 pieces)

For Screw Terminal Sockets

Short Bars

Applicable
sockets		 Pitch Dimensions (mm) Number
of poles		 Insu-
ation
color		 Short Bars
Model		 Maximum
carry
current		 Minimum
order
(set)
P2RFZ-05-E 15.7
mm		 2809_lu_6_1 10 Blue
(S)		 P2DN-15.7-100S 20 A 1
P2RFZ-05 19.4
mm		 2809_lu_6_2 10 Blue
(S)		 P2DN-19.4-100S 20 A 1

Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
         2. Use the Short Bars for crossover wiring within one Socket or between Sockets.

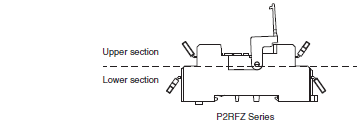

         3. Use the short bars on the lower section of the socket.
             When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
             (see the figure below).
             Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.

G3RZ Lineup 12

* One set (order unit) contains 10 short bars and 20 caps.

Accessories for Short Bars (P2DN)

Cap

Short Bars Models Appearance Dimensions (mm) Model
P2DN-19.4-100S
P2DN-15.7-100S		 2809_lu_7_1 2809_lu_7_2 P2DN-CP100

For Screw Terminal Sockets (P2RFZ-05)

Terminal covers

Applicable sockets Appearance Model Minimum order (set)
P2RFZ-05 2809_lu_8_1 P2CZ-C

Note: 1. Use these covers in a combination with P2RFZ-05.
         2. Do not install short bars (optional) on the upper section (see the figure below).
             Short bars may interfere with the terminal cover, making the terminal cover unusable.

G3RZ Lineup 18

Dimensions with terminal cover

P2RFZ-05

G3RZ Lineup 19

Labels

Applicable sockets Model Minimum order (sheet)
(quantity per sheet)
P2RFZ-05-E XW5Z-P2.5LB1 5
1 sheet (72 pieces)

Note: This label cannot be applied on sockets other than P2RFZ-05-E.

DIN Track Mounting Parts

Classification Type Appearance Model
For front-mounting DIN Tracks Shallow type, total length: 1 m 2809_lu_11_1 PFP-100N
Shallow type, total length: 0.5 m PFP-50N
Deep type, total length: 1 m 2809_lu_11_2 PFP-100N2
End Plate 2809_lu_11_3 PFP-M
Spacer 2809_lu_11_4 PFP-S
For back-mounting Mounting Plates for Sockets *
(For 5 Sockets)		 --- P2R-P

* Used to mount several P2R-05A Connecting Sockets side by side.
