Uninterruptible Power Supply (UPS)

S8BA

DC-DC type small UPS mounts on a DIN rail to provide an ideal countermeasure for momentary power losses and power failures in industrial computers (IPC) and controllers.

about this Product Family

(Unit: mm)

S8BA-LF Integrated battery type

Main body

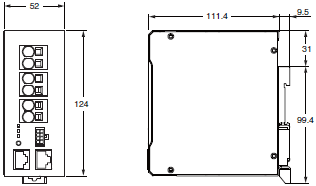

S8BA-24D24D120LF (120 W)

S8BA Dimensions 3

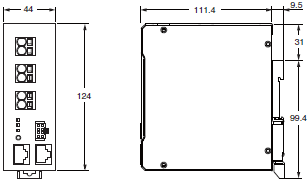

S8BA-24D24D240LF (240 W)

S8BA Dimensions 4

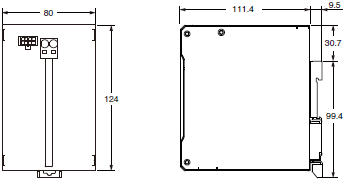

S8BA-24D24D360LF (360 W)
S8BA-24D24D480LF (480 W)

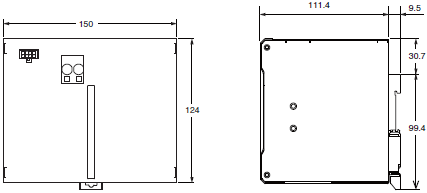

S8BA Dimensions 5

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

S8BA Dimensions 8

PFP-100N2

S8BA Dimensions 9

End Plate

PFP-M

S8BA Dimensions 11

Note: 1. If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
              filings may result from aluminum abrasion.
         2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.

S8BA-SBF Separated battery type

Control unit

S8BA-24D24D480SBF

S8BA Dimensions 15

S8BA-24D24D960SBF

S8BA Dimensions 16

Battery unit

S8BA-S480L

S8BA Dimensions 18

S8BA-S960L

S8BA Dimensions 19

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

S8BA Dimensions 22

PFP-100N2

S8BA Dimensions 23

End Plate

PFP-M

S8BA Dimensions 25

Note: 1. If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
             filings may result from aluminum abrasion.
         2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.
