Industrial PC Platform NY-series Industrial Panel PC

NYP

Works great, looks great.

Software downloads

You can download software for the NY Series Industrial PC Platform.

Performance Specifications

Item NYP35-[]1[][][] NYP2C-[]1[][][] NYP27-[]0[][][]
Main
system
CPU CPU type Intel® Core™
i5-7300U
Intel® Celeron®
3965U
Intel® Core™
i7-7820EQ
Cores/Threads 2 / 4 2 / 2 4 / 8
CPU base frequency 2.6 GHz 2.2 GHz 3.0 GHz
Maximum turbo
frequency
3.5 GHz - 3.7 GHz
Cache 3 MB 2 MB 8 MB
Cooling details Passive cooling (fanless) Requires active
cooling (fan)
Intel CPU category Industrial (100% operation minimal 10yr)
Memory Memory size *3 4 or 8 GB 4 or 8 GB 8, 16 or 32 GB
Memory type DDR4 (non ECC)
Trusted platform module (TPM) Available
Graphics controller Intel® HD Graphics. Up to two independent screens.
Intel® HD
Graphics 620
Intel® HD
Graphics 610
Intel® HD
Graphics 630
Watchdog Yes
Operating
system
Windows OS Windows 10 IoT Enterprise 2016
LTSB - 64 bit
Windows 10 IoT
Enterprise 2019
LTSC - 64 bit
Storage
devices
Drives *3 Hard disk drive • 320 GB
Serial ATA 3.0
N/A
Solid
state
drive
SLC type • 64 GB
Serial ATA 3.1
N/A
MLC type • 128 GB
Serial ATA 3.1
• 64 GB, 128 GB,
256 GB
Serial ATA 3.1,
CFast
Drive bays (HDD/SSD) *1 2 2 CFast slot
Con-
nectors
Power connector 24 VDC
I/O connector 2 inputs (Power ON/OFF Input and UPS Mode Input) and 1 output (Power Status Output)
USB2.0
Type-A
Number of ports 2
Maximum current 500 mA
Maximum cable
length
5 m
USB3.0
Type-A
Number of ports 2
Maximum current 900 mA
Maximum cable
length
3 m
Ethernet
connectors
Number of ports 3
Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I
connector
Video interface Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI cable
length
Dependent upon connected monitor type and resolution
Optional
connector
(select
one per
system)
RS-232C Standard DSUB9 connector
(Non-Isolated)
N/A
DVI-D Video interface Digital only N/A
Resolution Up to 1,920 x 1,200 pixels at 60 Hz N/A
Maximum DVI cable
length
Dependent upon connected
monitor type and resolution
N/A
NY Monitor
Link
Video interface Digital only
Connector type RJ45
Cable shielding, type
and max. length
S/FTP, Cat.6A, 100 m
USB data throughput 280 Mbps max.
GigE LAN Physical layer N/A
PCIe Card
Slot
Configuration X2 (2 lanes) up to Gen 3 N/A
Card height Standard height cards,
4.20 inches (106.7 mm) *2
N/A
Card length Half length cards,
6.6 inches (167.65 mm)
N/A
Battery Model Non replaceable battery CJ1W-BAT01
Service life 10 years at 40°C *4 5 years at 25°C
Fan unit Model No fan unit NY000-AF00
Service life - 70,000 hours
of continuous
operation at
40°C with 15%
to 65% relative
humidity
LED PWR, ERR, HDD, RUN

Item NYP35-[]0[][][] NYP2C-[]0[][][] NYP2A-[]0[][][]
Main
system
CPU CPU type Intel® Core™
i5-7300U
Intel® Celeron®
3965U
Intell® Atoml®
x5-E3940
Cores/Threads 2 / 4 2 / 2 4 / 4
CPU base frequency 2.6 GHz 2.2 GHz 1.6 GHz
Maximum turbo
frequency
3.5 GHz - 1.8 GHz
Cache 3 MB 2 MB 2 MB
Cooling details Passive cooling (fanless)
Intel CPU category Industrial (100% operation minimal 10yr)
Memory Memory size *3 8 or 16 GB 4 or 8 GB 2, 4 or 8 GB
Memory type DDR4 (non ECC) DDR3L
(non ECC)
Trusted platform module (TPM) Available
Graphics controller Intel® HD Graphics. Up to two independent screens.
Intel® HD
Graphics 620
Intel® HD
Graphics 610
Intel® HD
Graphics 500
Watchdog Yes
Operating
system
Windows OS Windows 10 IoT Enterprise 2016
LTSB - 64 bit
Windows 10 IoT
Enterprise 2019
LTSC - 64 bit
Storage
devices
Drives *3 Hard disk drive N/A
Solid
state
drive
SLC type N/A
MLC type • 64 GB, 128 GB, 256 GB
Serial ATA 3.1, CFast
Drive bays (HDD/SSD) *1 CFast slot CFast slot CFast slot
Con-
nectors
Power connector 24 VDC
I/O connector 2 inputs (Power ON/OFF Input and UPS Mode Input) and 1 output (Power Status Output)
USB2.0
Type-A
Number of ports 2
Maximum current 500 mA
Maximum cable
length
5 m
USB3.0
Type-A
Number of ports 2
Maximum current 900 mA
Maximum cable
length
3 m
Ethernet
connectors
Number of ports 3
Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I
connector
Video interface Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI cable
length
Dependent upon connected monitor type and resolution
Optional
connector
(select
one per
system)
RS-232C N/A
DVI-D Video interface N/A
Resolution N/A
Maximum DVI cable
length
N/A
NY Monitor
Link
Video interface Digital only
Connector type RJ45
Cable shielding, type
and max. length
S/FTP, Cat.6A, 100 m
USB data throughput 280 Mbps max.
GigE LAN Physical layer N/A
PCIe Card
Slot
Configuration N/A
Card height N/A
Card length N/A
Battery Model Non replaceable battery
Service life 10 years at 40°C *4
Fan unit Model No fan unit
Service life -
LED PWR, ERR, HDD, RUN

*1. Depending on the model one or two drives are supported.
*2. Low profile cards, 2.536 inches (64.4 mm) are not supported.
*3. Not all combinations are possible or standard available. Please contact your Omron representative to discuss the
      possibilities.
**4. Battery service life highly depend on circumtance and is in normal operation >20yr longer

Display Specifications

Item Specifications
12.1 Inch models 15.4 Inch models 18.5 Inch models
Display Display
panel
*1
Display device TFT LCD
Screen size 12.1 inches 15.4 inches 18.5 inches
Surface treatment Anti glare treatment
Surface hardness Mohs scale: 5 - 6
Resolution 1,280 × 800 pixels at 60 Hz
(horizontal × vertical)
1,920 × 1,080 pixels
at 60 Hz
(horizontal × vertical)
Colors 16,770,000 colors
Effective display area 261 × 163 mm
(horizontal × vertical)
331 × 207 mm
(horizontal × vertical)
409 × 230 mm
(horizontal × vertical)
View angles Left: 60°, Right: 60°, Top: 60°, Bottom: 60° Left: 89°, Right: 89°,
Top: 89°, Bottom: 89°
Typical LCD
Brightness (initial)
1,500 cd/m2 400 cd/m2 500 cd/m2
Life 50,000 hours min. *2
Brightness adjustment 200 levels *3
Touch Technology Projected capacitive
Touch resolution Touch accuracy 1.5% (4-5 mm)
Multitouch Up to 5 simultaneous touches
Features Water detection *4, hand palm rejection *5, gloves *6
Life 50,000,000 operations min.
EMC Correct touchscreen operation is possible within allowable EMC immunity conditions

*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and dark
     pixels fall within the following standard range: light and dark pixels 10 or less. (There must not be 3 consecutive light/
     dark pixels.)
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity.
     The life expectancy is drastically shortened if used at high temperatures.
*3. If the brightness is set to very dark, it causes flickering or the screen will be too dark to use.
*4. If water is detected the touch functionality will not be available.
*5. If a palm is detected that specific area is ignored.
*6. The touchscreen can be operated when wearing gloves. Check correct usage of the gloves before using them.

Electrical Specifications

Item NYP35-[]1[][][] NYP2C-[]1[][][] NYP27-[]0[][][]
CPU type Intel® Core™
i5-7300U
Intel® Celeron®
3965U
Intel® Core™
i7-7820EQ
Rated power supply voltage 24 VDC, non-isolated
Allowable power supply voltage
range
20.4 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category Meets IEC 61010-2-201: Category II
EMC immunity level IEC 61131-2: Zone B
RTC accuracy At ambient temperature of 55°C: -3.5 to +0.5 min error per month
At ambient temperature of 25°C: -1.5 to +1.5 min error per month
At ambient temperature of 0°C: -3 to +1 min error per month
Power button life 100,000 operations
Battery life 10 years at 40°C 5 years at 25°C
(for battery
CJ1W-BAT01)
Fan life - - 8 years of
continuous
operation at 40°C
Power consumption *1 -
Maximum power consumption
including drives and expansions
84 W 66 W 116 W
140 W *2
Maximum power consumption
excluding drives and expansions
61 W 43 W 101 W
125 W *2
Drives -
HDD 320 GB 2 W -
HDD 500 GB 2 W -
HDD 1 TB 2 W -
SSD SLC 32 GB 2 W -
SSD SLC 64 GB 2 W -
SSD MLC 128 GB 2 W -
SSD MLC 500 GB 3 W -
CFast MLC 64 GB - 1 W
CFast MLC 128 GB - 1 W
CFast MLC 256 GB - 1 W
Expansions -
USB 14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe 5 W max. 5 W max. -

Item NYP35-[]0[][][] NYP2C-[]0[][][] NYP2A-[]0[][][]
CPU type Intel® Core™
i5-7300U
Intel® Celeron®
3965U
Intel® Atom®
x5-E3940
Rated power supply voltage 24 VDC, non-isolated
Allowable power supply voltage
range
20.4 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category Meets IEC 61010-2-201: Category II
EMC immunity level IEC 61131-2: Zone B
RTC accuracy At ambient temperature of 55°C: -3.5 to +0.5 min error per month
At ambient temperature of 25°C: -1.5 to +1.5 min error per month
At ambient temperature of 0°C: -3 to +1 min error per month
Power button life 100,000 operations
Battery life 10 years at 40°C
Fan life - - -
Power consumption *1 -
Maximum power consumption
including drives and expansions
61 W
84 W *2
58 W
80 W *2
57 W
79 W *2
Maximum power consumption
excluding drives and expansions
76 W
99 W *2
43 W
65 W *2
42 W
64 W *2
Drives -
HDD 320 GB -
HDD 500 GB -
HDD 1 TB -
SSD SLC 32 GB -
SSD SLC 64 GB -
SSD MLC 128 GB -
SSD MLC 500 GB -
CFast MLC 64 GB 1 W
CFast MLC 128 GB 1 W
CFast MLC 256 GB 1 W
Expansions -
USB 14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe -

Note: Refer to the Industrial Panel PC User’s Manual (W555) for detail.
*1. The total power consumption is the sum of the power consumption of all items that are installed in your
       Industrial Box PC.
*2. The upper number is for the 12.1 and 15.4 inch models, and the lower number is for the 18.5 inch models.

To guarantee S8BA UPS operation in combination with our IPC, the specified combination of UPS and power-supply must be used

Item NYP27 NYP35 / NYP2C / NYP2A
Minimum power
requirements
Power supply 240 W 120 W
UPS 240 W 120 W

Components and functions

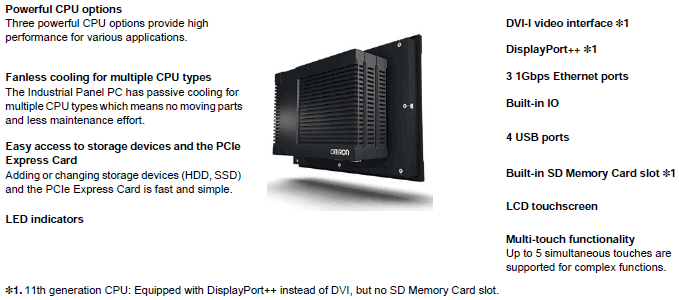

The intent behind our IPC platform is to empower engineers to become unstoppable in developing machines and factories that are better, faster and safer by giving them the freedom and flexibility to explore the opportunities provided by modern IT. In line with Omron’s traditional quality standards, the Industrial Panel PC is designed to meet the demands of industrial users for maximum robustness and reliability.

NYP Specifications 11

Environmental Specifications

Item Specifications
operation
environment
Ambient operating temperature
*1
0 to 55°C
Ambient storage temperature
*1
-20 to 70°C
Ambient operating humidity *1 10% to 90% with no condensation
Ambient storage humidity *1 10% to 90% with no condensation
Operating atmosphere No corrosive gases
Altitude 2,000 m max.
Noise resistance (during
operation)
Conforms to IEC61000-4-4, 2kV (power lines)
Vibration resistance (during
operation)
The vibration resistance depends on the storage device(s):
• For a Panel PC with only SSD storage devices: 5 to 8.4 Hz with 3.5
mm single amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 10 times
each in X, Y and Z directions. Conforms to IEC 60068-2-6.
• For a Panel PC with one or more HDD storage devices the Panel
PC must be installed in a vibration free environment. *2
Shock resistance (during
operation)
Conforms to IEC 60068-2-27.
147 m/s2, 3 times in each X, Y and Z directions
Installation method Mount on panel
Degree of protection Front of Monitor: IP65 *3
Pollution degree 2 or less: Meets IEC 61010-2-201.
Applicable standards *4 EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS
Directive
KC Registration, RCM, cULus, EAC

*1. The allowed ambient operating temperature and ambient humidity depend on product type, CPU type, mounting
     orientation, and storage device type.
*2. A Panel PC with one or more HDD storage devices should not be used in applications subject to vibration.
    Examples of applications subject to vibration:
    • AGV (Automated Guided Vehicles)
    • Rail vehicle
    • Stacker crane
    • Elevator
    • Tableting machine
    • Connector pin assembling machine
    • Bending machine
    Ensure your Panel PC with HDD does not vibrate. When in doubt use a Panel PC with SSD storage devices.
*3. The Panel PC may not operate properly in locations subjected to oil splashes for extended periods of time.
*4. Contact your OMRON representative for the most recent applicable standards for each model.

Storage Device Specifications

Item Specifications
Model NY000-
AS00
NY000-
AS01
NY000-
AS03
NY000-
AS04
NY000-
AS05
NY000-
AS07
NY000-
AS08
Capacity 32 GB 64 GB 64 GB 128 GB 500 GB 1 TB 256 GB
Type SSD (SLC) SSD
(SLC)
SSD
(MLC)
SSD
(MLC)
SSD
(3DTLC)
SSD
(MLC)
S.M.A.R.T. support Yes
Rotation speed - - - - - - -
Interface Serial ATA 3.1
Sustained standard
read speed
Up to
160 MB/s
Up to
160 MB/s
Up to
500 MB/s
Up to
530 MB/s
Up to
415 MB/s
Up to
550 MB/s
Up to
530 MB/s
Sustained standard
write speed
Up to
145 MB/s
Up to
150 MB/s
Up to
370 MB/s
Up to
190 MB/s
Up to
200 MB/s
Up to
340 MB/s
Up to
210 MB/s
Operating
temperature
0 to 70°C
Operating humidity 10% to 95%
(with no
condensation)
10% to
85%
(with no
condensation)
10% to 95%
(with no condensation)
Storage temperature -40 to 100°C -45 to
90°C
-55 to 95°C
Storage humidity 10% to 95% (with no condensation)
Life 1,500 TB
written
3,000 TB
written
1900 TB
written
208 TB
written
154 TB
written
1000 TB
written
416 TB
written

Item Specifications
Model NY000-
AH00 *1
NY000-
AH01 *1
NY000-
AH02 *1
NY000-
AT00
NY000-
AT01
NY000-
AT02
Capacity 320 GB 500 GB 1 TB 64 GB 128 GB 256 GB
Type HDD HDD HDD Cfast
(MLC)
Cfast
(MLC)
Cfast
(MLC)
S.M.A.R.T. support Yes
Rotation speed 5,400 r/min - - -
Interface Serial ATA 3.0 Serial ATA 3.1
Sustained standard
read speed
- - - Up to
530 MB/s
Up to
530 MB/s
Up to
530 MB/s
Sustained standard
write speed
- - - Up to
100 MB/s
Up to
190 MB/s
Up to
210 MB/s
Operating
temperature
5 to 55°C 5 to 55°C 0 to 60°C -40 to 85°C
Operating humidity 8% to 90% (with no condensation) 10% to 95% (with no condensation)
Storage
temperature
-40 to 65°C -55 to 95°C
Storage humidity 8% to 90%
(with no condensation)
5% to 95%
(with no
condensation)
10% to 95% (with no condensation)
Life Approximately 5 years or
20,000 powered-ON hours
(whichever comes first) under
the following conditions:
• 25°C at 101.3 kPa
• Less than 333 powered-ON
hours/month *2
• Less than 20% operation
while powered-ON *3
• Less than
1.30 x 106seeks/month
Average
Annualized
Failure Rate
(AFR): 0.50%
Under the
following
conditions:
• Case
Temperatu
re 40°C
• Power on
Hours
(POH) ≤
3120
125 TB
written
208 TB
written
417 TB
written

Note: Orders for NY000-AS02 are no longer accepted, as of November 30, 2018.
*1. For a Panel PC with an HDD: this device can only be installed in a vibration free environment only. (NYP)
*2. Powered-ON hours include sleep and standby modes.
*3. Operation includes seeking, writing, and reading functions.
