Industrial PC Platform NY-series Industrial Monitor
You can download software for the NY Series Industrial PC Platform.
Related Contents
last update: March 22, 2022

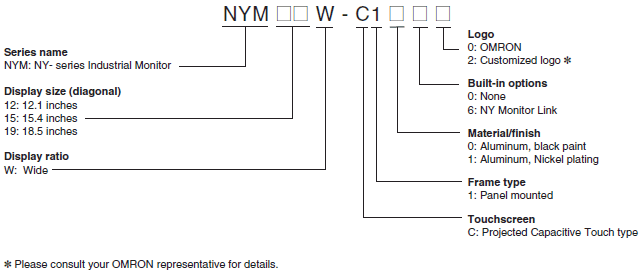

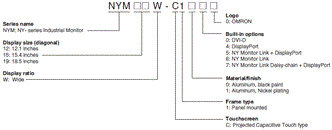

| Product name | Specifications | Model | ||
|---|---|---|---|---|
| Interface | Display size | |||
| Industrial Monitor | An industrial monitor with a touchscreen as the
user interface designed to work in industrial environments |
DVI-D | 12.1 inches | NYM12W-C1000 |
| 15.4 inches | NYM15W-C1000 | |||
| 18.5 inches | NYM19W-C1000 * | |||
| NY Monitor
Link |
12.1 inches | NYM12W-C1060 | ||
| 15.4 inches | NYM15W-C1060 | |||
| 18.5 inches | NYM19W-C1060 * | |||
* 18.5 inch models also available with Nickel Plating front.
| Product Item | Specifications | Model |
|---|---|---|
| Mounting Brackets *1 | VESA mount | NY000-AB06 |
| VESA mount | NY000-AB07 | |
| VESA mount | NY000-AB08 | |
| VESA mount handle | NY000-AB12 | |
| Power Supply | • Output voltage: 24 VDC
• Push-In Plus terminal blocks |
S8VK-S[][][]24 |
| USB Type-A to USB Type-B Cables | Cable length: 2 m
USB 2.0 Minimum bend radius: 25 mm |
FH-VUAB 2M |
| Cable length: 5 m
USB 2.0 Minimum bend radius: 25 mm |
FH-VUAB 5M | |
| DVI Cables | Cable length: 2 m
Supports DVI-D Minimum bend radius: 36 mm |
NY000-AC00 2M |
| Cable length: 5 m
Supports DVI-D Minimum bend radius: 36 mm |
NY000-AC00 5M |
*1. Select the required type. Industrial Panel PC and Industrial Monitor type only.
NY000-AB06: for NYM12W
NY000-AB07: for NYM15W
NY000-AB08: for NYM19W
NY000-AB12 Handle for AB06 to AB08
| Item | Descriptions |
|---|---|
| Industrial Monitor Utility | The Industrial Monitor Utility provides a user interface to control settings and display details of connected Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor
Brightness Utility |
The Industrial Monitor Brightness Utility is a small software utility that allows you to control the brightness of the screen backlight of all connected Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC Tray Utility | The Industrial PC Tray Utility is a software utility that provides information about the current state of the Industrial PC, its related devices, and associated software.
It is pre-installed on an Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor API | The Industrial Monitor API allows programmers to create applications that can control the hardware features and retrieve information from connected Industrial Monitors.
It is pre-installed on the Industrial Panel PC and Industrial Box PC. Install the Industrial Monitor SDK to use the Industrial Monitor API on development PCs. |
last update: March 22, 2022
