F3SG-SR / PG Series

Safety Light Curtain/Safety Multi-Light Beam

F3SG-SR / PG Series

Easy to monitor and ready for IoT

Safety Light Curtain model search

Choose your safety light curtain and accessories from our F3SG Series through a 4-step process.

(Unit: mm)

F3SG-SR

Main Unit

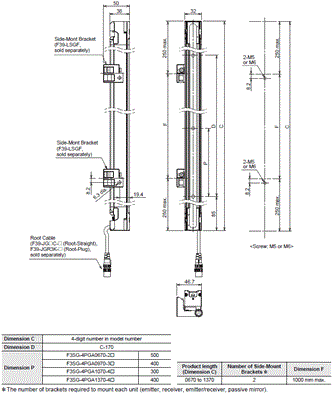

Mounted with Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Backside Mounting

F3SG-SR / PG Series Dimensions 3

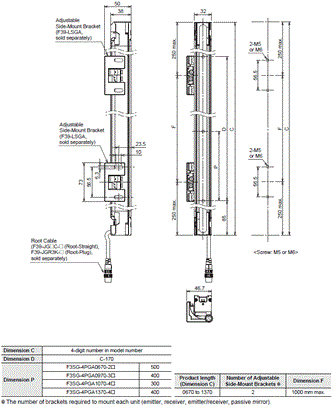

Mounted with Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Side Mounting

F3SG-SR / PG Series Dimensions 4

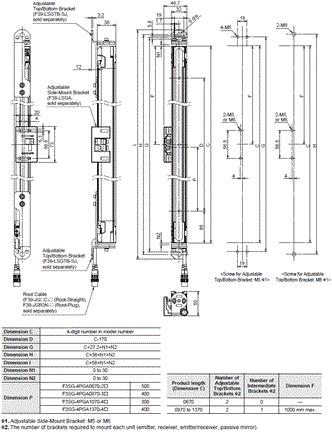

Mounted with Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Backside Mounting

F3SG-SR / PG Series Dimensions 5

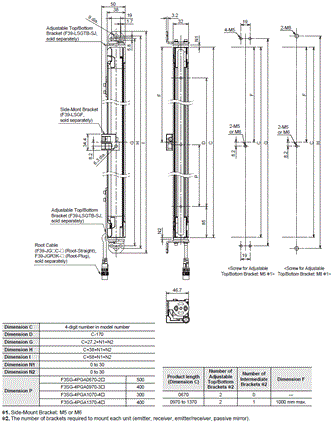

Mounted with Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Side Mounting

F3SG-SR / PG Series Dimensions 6

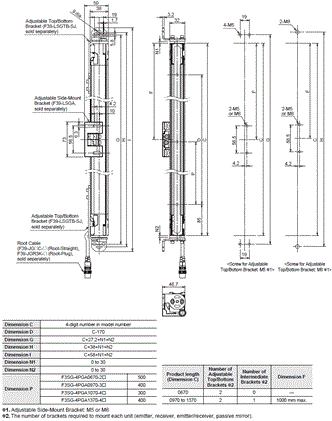

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Backside Mounting

F3SG-SR / PG Series Dimensions 7

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Side Mounting

F3SG-SR / PG Series Dimensions 8

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Backside Mounting

F3SG-SR / PG Series Dimensions 9

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Side Mounting

F3SG-SR / PG Series Dimensions 10

F3SG-PG

Main Unit

Mounted with Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Backside Mounting

F3SG-SR / PG Series Dimensions 13

Mounted with Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Side Mounting

F3SG-SR / PG Series Dimensions 14

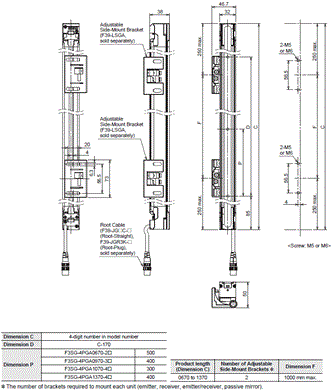

Mounted with Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Backside Mounting

F3SG-SR / PG Series Dimensions 15

Mounted with Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Side Mounting

F3SG-SR / PG Series Dimensions 16

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Backside Mounting

F3SG-SR / PG Series Dimensions 17

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)

Side Mounting

F3SG-SR / PG Series Dimensions 18

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Backside Mounting

F3SG-SR / PG Series Dimensions 19

Mounted with Adjustable Top/Bottom Brackets (F3SJ, F3SN Adapter) (F39-LSGTB-SJ) and Adjustable Side-Mount Brackets (Intermediate Brackets) (F39-LSGA)

Side Mounting

F3SG-SR / PG Series Dimensions 20

F3SG-SR/PG Accessories

Bracket

Side-Mount Bracket (Intermediate Bracket) (F39-LSGF, sold separately)

F3SG-SR / PG Series Dimensions 23

Adjustable Side-Mount Bracket (Intermediate Bracket) (F39-LSGA, sold separately)

F3SG-SR / PG Series Dimensions 24

Adjustable Top/Bottom Bracket (F3SJ, F3SN Adapter) (F39-LSGTB-SJ, sold separately)

F3SG-SR / PG Series Dimensions 25

Adjustable Top/Bottom Bracket (F3SG-RA/RE Adapter) (F39-LSGTB-RE, sold separately)

F3SG-SR / PG Series Dimensions 26

Adjustable Top/Bottom Bracket (MS4800, F3SR Adapter) (F39-LSGTB-MS, sold separately)

F3SG-SR / PG Series Dimensions 27

Intelligent Tap

Intelligent Tap (F39-SGIT-IL3, sold separately)

F3SG-SR / PG Series Dimensions 29

Intelligent Tap Bracket (F39- LITF1, sold separately)

F3SG-SR / PG Series Dimensions 30

Assembly Dimensions (Intelligent Tap/ Intelligent Tap Bracket)

F3SG-SR / PG Series Dimensions 31

Bluetooth® Communication Unit (F39-SGBT, sold separately)

F3SG-SR / PG Series Dimensions 32

Assembly Dimensions (Intelligent Tap/Bluetooth® Communication Unit/Intelligent Tap Bracket)

F3SG-SR / PG Series Dimensions 33

Spatter Protection Cover

Spatter Protection Cover (F39-HSG[][][][], sold separately)

F3SG-SR / PG Series Dimensions 35

Connecting Cables

Root-Straight Cable

Root-Straight Cable for Emitter (F39-JG[]C-L, sold separately)

F3SG-SR / PG Series Dimensions 38

Root-Straight Cable for receiver or emitter/receiver of F3SG-PG Perimeter Guarding Passive Mirror (F39-JG[]C-D, sold separately)

F3SG-SR / PG Series Dimensions 39

Root-Plug Cable for Extended

Root-Plug Cable for Extended for Emitter (F39-JGR[]K-L, sold separately)

F3SG-SR / PG Series Dimensions 41

Root-Plug Cable for Extended for receiver or emitter/receiver of F3SG-PG Perimeter Guarding Passive Mirror (F39-JGR[]K-D, sold separately)

F3SG-SR / PG Series Dimensions 42

Extended Socket-Straight Cable

Extended Socket-Straight Cable for Emitter (F39-JG[]A-L, sold separately)

F3SG-SR / PG Series Dimensions 44

Extended Socket-Straight Cable for receiver or emitter/receiver of F3SG-PG Perimeter Guarding Passive Mirror (F39-JG[]A-D, sold separately)

F3SG-SR / PG Series Dimensions 45

Extended Plug-Socket Cable

Extended Plug-Socket Cable for Emitter: Cable for extension (F39-JG[]B-L, sold separately)

F3SG-SR / PG Series Dimensions 47

Extended Plug-Socket Cable for receiver or emitter/receiver of F3SG-PG Perimeter Guarding Passive Mirror: Cable for extension (F39-JG[]B-D, sold separately)

F3SG-SR / PG Series Dimensions 48

Cascading Cable for Extended (F39-JGR3W, sold separately) (two cables per set, one for emitter and one for receiver)

Emitter Cascading Cable for Extended

F3SG-SR / PG Series Dimensions 50

Receiver Cascading Cable for Extended

F3SG-SR / PG Series Dimensions 51

Side-by-side Cascading Cable (F39-JGR12L, sold separately) (two cables per set, one for emitter and one for receiver)

Side-by-side Cascading Cable for Emitter

F3SG-SR / PG Series Dimensions 53

Side-by-side Cascading Cable for Receiver

F3SG-SR / PG Series Dimensions 54

Conversion Cable

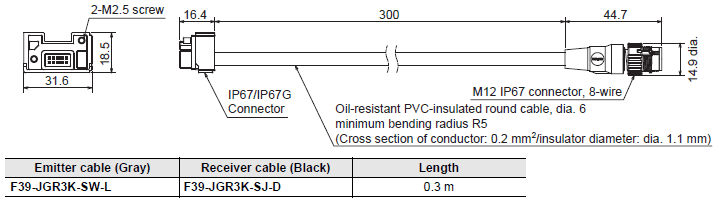

F3SJ-B/A Conversion Cable for Emitter (F39-JGR3K-SJ-L, sold separately)

F3SG-SR / PG Series Dimensions 56

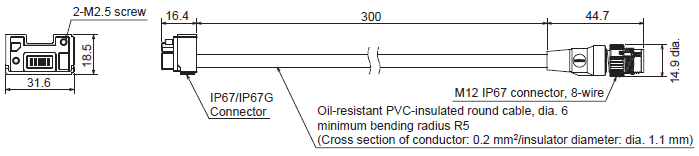

F3SJ-B/A Conversion Cable for Receiver (F39-JGR3K-SJ-D, sold separately)

F3SG-SR / PG Series Dimensions 57

F3SG-RE Conversion Cable for Emitter (F39-JGR3K-RE-L, sold separately)

F3SG-SR / PG Series Dimensions 58

F3SG-RE Conversion Cable for Receiver (F39-JGR3K-RE-D, sold separately)

F3SG-SR / PG Series Dimensions 59

MS48 Conversion Cable for Emitter (F39-JGR3K-MS-L, sold separately)

F3SG-SR / PG Series Dimensions 60

MS48 Conversion Cable for Receiver (F39-JGR3K-MS-D, sold separately)

F3SG-SR / PG Series Dimensions 61

Y-Joint Plug/Socket Connector (F39-GCNY2, sold separately)

F3SG-SR / PG Series Dimensions 62

Reset Switch Connector (F39-GCNY3, sold separately)

F3SG-SR / PG Series Dimensions 63

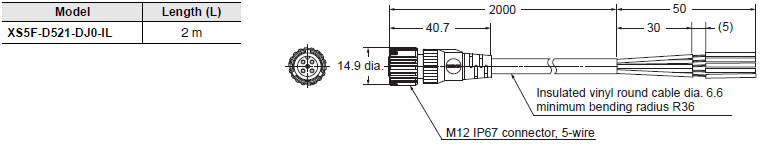

Connector Connected to Cable, Socket on One Cable End (XS5F-D421-[]80-F, sold separately)

F3SG-SR / PG Series Dimensions 64

Lamp

Lamp (F39-SGLP, sold separately)

F3SG-SR / PG Series Dimensions 66

Muting Sensor Arm Mounter

Muting Sensor Arm Mounter (F39-FMA[][][][], sold separately)

F3SG-SR / PG Series Dimensions 68

Muting Sensor Arm Mounter Bracket for SLC (F39-LMAF1, sold separately)

F3SG-SR / PG Series Dimensions 69

• Assembly Dimensions

Mounting F39-FMA[][][][]-T on the Muting Sensor Arm Mounter Bracket for SLC (F39-LMAF1)

F3SG-SR / PG Series Dimensions 71

Mounting F39-FMA[][][][]-R on the Floor Mount Column (F39-ST[][][][])

F3SG-SR / PG Series Dimensions 72

Mount-Column Adjustable Base

F39-STB

F3SG-SR / PG Series Dimensions 73

Floor Mount Column

F39-ST[][][][]

F3SG-SR / PG Series Dimensions 74

• Assembly Dimensions (Mount-Column Adjustable Base /Floor Mount Column)

F39-STB/F39-ST[][][][]

F3SG-SR / PG Series Dimensions 76

Mirror Column

F39-SML[][][][]

F3SG-SR / PG Series Dimensions 77

• Assembly Dimensions (Mount-Column Adjustable Base /Mirror Column)

F39-STB/F39-SML[][][][]

F3SG-SR / PG Series Dimensions 79

F39-PML[][][][]

F3SG-SR / PG Series Dimensions 80

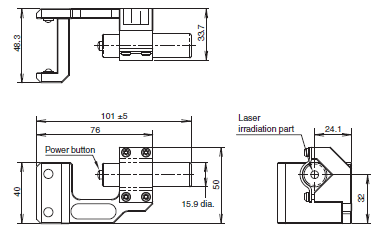

Laser Alignment Pointer

F39-PTS

F3SG-SR / PG Series Dimensions 81

• Assembly Dimensions (Mount-Column Adjustable Base /Mirror Column)

F39-STB/F39-PML[][][][]

F3SG-SR / PG Series Dimensions 83

Muting Sensor Connection Box

F39-GCN5

F3SG-SR / PG Series Dimensions 84

F3SG-SR-K

Main Unit

Mounted with IP69K Model Mounting Brackets (F39-LSGTB-K)

Side mounting and backside mounting

F3SG-SR / PG Series Dimensions 87

Accessories

Bracket

IP69K Model Mounting Bracket (F39-LSGTB-K, sold separately)

F3SG-SR / PG Series Dimensions 89
