FHV7 Series
Smart Camera
Ultimate flexibility to fit ever-changing production scene
Smart Camera model search
Select the module conditions to search the applicable models.
Related Contents
- Vision Sensors / Machine Vision Systems
- Special Contents
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 1, 2026
Model Number Structure

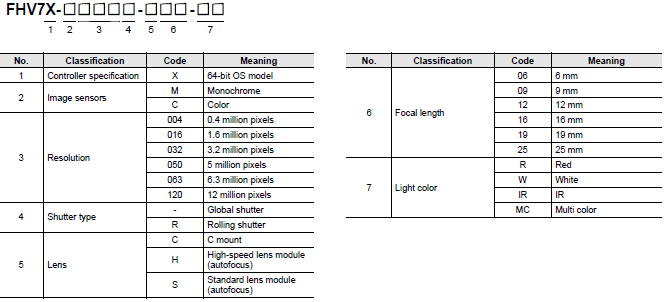

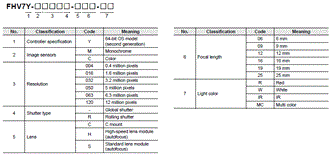

FHV7 Series Model Number Legend
Configuration
For the Smart Camera FHV7 series, there are five configurations below by module combinations.
| Smart camera | Lens | Internal
lighting |
Protective
structure |
Integrated
model |
Appearance | Configura-
tion |
|
|---|---|---|---|---|---|---|---|
| 0.4 million pixels
1.6 million pixels 3.2 million pixels 5 million pixels 6.3 million pixels 12 million pixels |
FHV7Y-[]004-[]
FHV7Y-[]016-[] FHV7Y-[]032-[] FHV7Y-[]050-[] FHV7Y-[]063R-[] FHV7Y-[]120R-[] |
C mount
lens 3Z4SLE SV-[][][][]V 3Z4SLE SV-[][][][]H |
N/A | IP40 | FHV7Y-
[][][][][]-C |
 |
C mount
lens/IP40 |
| IP67
Waterproof Hoods required FHV-XHD-S FHV-XHD-L |
N/A |  |
C mount
lens/IP67 |
||||
| 0.4 million pixels
1.6 million pixels 3.2 million pixels 6.3 million pixels |
FHV7Y-[]004-[]
FHV7Y-[]016-[] FHV7Y-[]032-[] FHV7Y-[]063R-[] |
FHV lens
module FHV-LEM- H[][] FHV-LEM- S[][] |
N/A | IP40 | FHV7Y-
[][][][][]- H[][] FHV7Y- [][][][][]- S[][] |
 |
Lens
module/IP40 |
| IP67
Waterproof Hoods required FHV-XHD-LEM |
N/A |  |
Lens
module/IP67 |
||||
| FHV-
LTM-[][] |
IP67 | FHV7Y-
[][][][][]- H[][]-[][] FHV7Y- [][][][][]- S[][]-[][] |
 |
Lens module
/Internal lighing - IP67 |
|||
Ordering Information
Smart Cameras
C Mount Models
| Item | Resolution | Model | |
|---|---|---|---|
| Color | Monochrome | ||
 |
0.4 million pixels | FHV7Y-C004-C | FHV7Y-M004-C |
| 1.6 million pixels | FHV7Y-C016-C | FHV7Y-M016-C | |
| 3.2 million pixels | FHV7Y-C032-C | FHV7Y-M032-C | |
| 5 million pixels | FHV7Y-C050-C | FHV7Y-M050-C | |
| 6.3 million pixels | FHV7Y-C063R-C | FHV7Y-M063R-C | |
| 12 million pixels | FHV7Y-C120R-C | FHV7Y-M120R-C | |
Lens Modules
| Item | Focal length * | Model | |
|---|---|---|---|
 |
High-speed lens
module (Autofocus) |
6 mm | FHV-LEM-H06 |
| 19 mm | FHV-LEM-H19 | ||
 |
Standard lens
module (Autofocus) |
6 mm | FHV-LEM-S06 |
| 9 mm | FHV-LEM-S09 | ||
| 12 mm | FHV-LEM-S12 | ||
| 16 mm | FHV-LEM-S16 | ||
| 25 mm | FHV-LEM-S25 | ||
* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).
Note: Refer to the Vision Accessory Catalog (Cat No. Q198) for details on C-mount lenses.
Note: Refer to the Vision Accessory Catalog (Cat No. Q198) for details on C-mount lenses.
Lighting Modules
| Item | Light color | Model |
|---|---|---|
 |
Multi color | FHV-LTM-MC |
 |
Red | FHV-LTM-R |
 |
White | FHV-LTM-W |
 |
IR | FHV-LTM-IR |
All-in-one Models with Lens Module
| Item | Resolution | Lens | Focal length | Model | |
|---|---|---|---|---|---|
| Color | Monochrome | ||||
 |
0.4 million pixels | High-speed
lens module (autofocus) |
6 mm | FHV7Y-C004-H06 | FHV7Y-M004-H06 |
| 19 mm | FHV7Y-C004-H19 | FHV7Y-M004-H19 | |||
| Standard
lens module (autofocus) |
6 mm | FHV7Y-C004-S06 | FHV7Y-M004-S06 | ||
| 9 mm | FHV7Y-C004-S09 | FHV7Y-M004-S09 | |||
| 12 mm | FHV7Y-C004-S12 | FHV7Y-M004-S12 | |||
| 16 mm | FHV7Y-C004-S16 | FHV7Y-M004-S16 | |||
| 25 mm | FHV7Y-C004-S25 | FHV7Y-M004-S25 | |||
| 1.6 million pixels | High-speed
lens module (autofocus) |
6 mm | FHV7Y-C016-H06 | FHV7Y-M016-H06 | |
| 19 mm | FHV7Y-C016-H19 | FHV7Y-M016-H19 | |||
| Standard
lens module (autofocus) |
6 mm | FHV7Y-C016-S06 | FHV7Y-M016-S06 | ||
| 9 mm | FHV7Y-C016-S09 | FHV7Y-M016-S09 | |||
| 12 mm | FHV7Y-C016-S12 | FHV7Y-M016-S12 | |||
| 16 mm | FHV7Y-C016-S16 | FHV7Y-M016-S16 | |||
| 25 mm | FHV7Y-C016-S25 | FHV7Y-M016-S25 | |||
| 3.2 million pixels | High-speed
lens module (autofocus) |
6 mm | FHV7Y-C032-H06 | FHV7Y-M032-H06 | |
| 19 mm | FHV7Y-C032-H19 | FHV7Y-M032-H19 | |||
| Standard
lens module (autofocus) |
6 mm | FHV7Y-C032-S06 | FHV7Y-M032-S06 | ||
| 9 mm | FHV7Y-C032-S09 | FHV7Y-M032-S09 | |||
| 12 mm | FHV7Y-C032-S12 | FHV7Y-M032-S12 | |||
| 16 mm | FHV7Y-C032-S16 | FHV7Y-M032-S16 | |||
| 25 mm | FHV7Y-C032-S25 | FHV7Y-M032-S25 | |||
| 6.3 million pixels | High-speed
lens module (autofocus) |
6 mm | FHV7Y-C063R-H06 | FHV7Y-M063R-H06 | |
| 19 mm | FHV7Y-C063R-H19 | FHV7Y-M063R-H19 | |||
| Standard
lens module (autofocus) |
6 mm | FHV7Y-C063R-S06 | FHV7Y-M063R-S06 | ||
| 9 mm | FHV7Y-C063R-S09 | FHV7Y-M063R-S09 | |||
| 12 mm | FHV7Y-C063R-S12 | FHV7Y-M063R-S12 | |||
| 16 mm | FHV7Y-C063R-S16 | FHV7Y-M063R-S16 | |||
| 25 mm | FHV7Y-C063R-S25 | FHV7Y-M063R-S25 | |||
* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).
All-in-one Models with Lens and Lighting Modules
| Item | Reso-
lution |
Lens | Focal
length |
Light
color |
Model | |
|---|---|---|---|---|---|---|
| Color | Monochrome | |||||
 |
0.4 million
pixels |
High-speed
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C004-H06-MC | FHV7Y-M004-H06-MC |
| Red | --- | FHV7Y-M004-H06-R | ||||
| White | FHV7Y-C004-H06-W | FHV7Y-M004-H06-W | ||||
| IR | --- | FHV7Y-M004-H06-IR | ||||
| 19 mm | Multi color | FHV7Y-C004-H19-MC | FHV7Y-M004-H19-MC | |||
| Red | --- | FHV7Y-M004-H19-R | ||||
| White | FHV7Y-C004-H19-W | FHV7Y-M004-H19-W | ||||
| IR | --- | FHV7Y-M004-H19-IR | ||||
| Standard
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C004-S06-MC | FHV7Y-M004-S06-MC | ||
| Red | --- | FHV7Y-M004-S06-R | ||||
| White | FHV7Y-C004-S06-W | FHV7Y-M004-S06-W | ||||
| IR | --- | FHV7Y-M004-S06-IR | ||||
| 9 mm | Multi color | FHV7Y-C004-S09-MC | FHV7Y-M004-S09-MC | |||
| Red | --- | FHV7Y-M004-S09-R | ||||
| White | FHV7Y-C004-S09-W | FHV7Y-M004-S09-W | ||||
| IR | --- | FHV7Y-M004-S09-IR | ||||
| 12 mm | Multi color | FHV7Y-C004-S12-MC | FHV7Y-M004-S12-MC | |||
| Red | --- | FHV7Y-M004-S12-R | ||||
| White | FHV7Y-C004-S12-W | FHV7Y-M004-S12-W | ||||
| IR | --- | FHV7Y-M004-S12-IR | ||||
| 16 mm | Multi color | FHV7Y-C004-S16-MC | FHV7Y-M004-S16-MC | |||
| Red | --- | FHV7Y-M004-S16-R | ||||
| White | FHV7Y-C004-S16-W | FHV7Y-M004-S16-W | ||||
| IR | --- | FHV7Y-M004-S16-IR | ||||
| 25 mm | Multi color | FHV7Y-C004-S25-MC | FHV7Y-M004-S25-MC | |||
| Red | --- | FHV7Y-M004-S25-R | ||||
| White | FHV7Y-C004-S25-W | FHV7Y-M004-S25-W | ||||
| IR | --- | FHV7Y-M004-S25-IR | ||||
| 1.6 million
pixels |
High-speed
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C016-H06-MC | FHV7Y-M016-H06-MC | |
| Red | --- | FHV7Y-M016-H06-R | ||||
| White | FHV7Y-C016-H06-W | FHV7Y-M016-H06-W | ||||
| IR | --- | FHV7Y-M016-H06-IR | ||||
| 19 mm | Multi color | FHV7Y-C016-H19-MC | FHV7Y-M016-H19-MC | |||
| Red | --- | FHV7Y-M016-H19-R | ||||
| White | FHV7Y-C016-H19-W | FHV7Y-M016-H19-W | ||||
| IR | --- | FHV7Y-M016-H19-IR | ||||
| Standard
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C016-S06-MC | FHV7Y-M016-S06-MC | ||
| Red | --- | FHV7Y-M016-S06-R | ||||
| White | FHV7Y-C016-S06-W | FHV7Y-M016-S06-W | ||||
| IR | --- | FHV7Y-M016-S06-IR | ||||
| 9 mm | Multi color | FHV7Y-C016-S09-MC | FHV7Y-M016-S09-MC | |||
| Red | --- | FHV7Y-M016-S09-R | ||||
| White | FHV7Y-C016-S09-W | FHV7Y-M016-S09-W | ||||
| IR | --- | FHV7Y-M016-S09-IR | ||||
| 12 mm | Multi color | FHV7Y-C016-S12-MC | FHV7Y-M016-S12-MC | |||
| Red | --- | FHV7Y-M016-S12-R | ||||
| White | FHV7Y-C016-S12-W | FHV7Y-M016-S12-W | ||||
| IR | --- | FHV7Y-M016-S12-IR | ||||
| 16 mm | Multi color | FHV7Y-C016-S16-MC | FHV7Y-M016-S16-MC | |||
| Red | --- | FHV7Y-M016-S16-R | ||||
| White | FHV7Y-C016-S16-W | FHV7Y-M016-S16-W | ||||
| IR | --- | FHV7Y-M016-S16-IR | ||||
| 25 mm | Multi color | FHV7Y-C016-S25-MC | FHV7Y-M016-S25-MC | |||
| Red | --- | FHV7Y-M016-S25-R | ||||
| White | FHV7Y-C016-S25-W | FHV7Y-M016-S25-W | ||||
| IR | --- | FHV7Y-M016-S25-IR | ||||
| 3.2 million
pixels |
High-speed
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C032-H06-MC | FHV7Y-M032-H06-MC | |
| Red | --- | FHV7Y-M032-H06-R | ||||
| White | FHV7Y-C032-H06-W | FHV7Y-M032-H06-W | ||||
| IR | --- | FHV7Y-M032-H06-IR | ||||
| 19 mm | Multi color | FHV7Y-C032-H19-MC | FHV7Y-M032-H19-MC | |||
| Red | --- | FHV7Y-M032-H19-R | ||||
| White | FHV7Y-C032-H19-W | FHV7Y-M032-H19-W | ||||
| IR | --- | FHV7Y-M032-H19-IR | ||||
| Standard
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C032-S06-MC | FHV7Y-M032-S06-MC | ||
| Red | --- | FHV7Y-M032-S06-R | ||||
| White | FHV7Y-C032-S06-W | FHV7Y-M032-S06-W | ||||
| IR | --- | FHV7Y-M032-S06-IR | ||||
| 9 mm | Multi color | FHV7Y-C032-S09-MC | FHV7Y-M032-S09-MC | |||
| Red | --- | FHV7Y-M032-S09-R | ||||
| White | FHV7Y-C032-S09-W | FHV7Y-M032-S09-W | ||||
| IR | --- | FHV7Y-M032-S09-IR | ||||
| 12 mm | Multi color | FHV7Y-C032-S12-MC | FHV7Y-M032-S12-MC | |||
| Red | --- | FHV7Y-M032-S12-R | ||||
| White | FHV7Y-C032-S12-W | FHV7Y-M032-S12-W | ||||
| IR | --- | FHV7Y-M032-S12-IR | ||||
| 16 mm | Multi color | FHV7Y-C032-S16-MC | FHV7Y-M032-S16-MC | |||
| Red | --- | FHV7Y-M032-S16-R | ||||
| White | FHV7Y-C032-S16-W | FHV7Y-M032-S16-W | ||||
| IR | --- | FHV7Y-M032-S16-IR | ||||
| 25 mm | Multi color | FHV7Y-C032-S25-MC | FHV7Y-M032-S25-MC | |||
| Red | --- | FHV7Y-M032-S25-R | ||||
| White | FHV7Y-C032-S25-W | FHV7Y-M032-S25-W | ||||
| IR | --- | FHV7Y-M032-S25-IR | ||||
| 6.3 million
pixels |
High-speed
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C063R-H06-MC | FHV7Y-M063R-H06-MC | |
| Red | --- | FHV7Y-M063R-H06-R | ||||
| White | FHV7Y-C063R-H06-W | FHV7Y-M063R-H06-W | ||||
| IR | --- | FHV7Y-M063R-H06-IR | ||||
| 19 mm | Multi color | FHV7Y-C063R-H19-MC | FHV7Y-M063R-H19-MC | |||
| Red | --- | FHV7Y-M063R-H19-R | ||||
| White | FHV7Y-C063R-H19-W | FHV7Y-M063R-H19-W | ||||
| IR | --- | FHV7Y-M063R-H19-IR | ||||
| Standard
lens module (autofocus) |
6 mm | Multi color | FHV7Y-C063R-S06-MC | FHV7Y-M063R-S06-MC | ||
| Red | --- | FHV7Y-M063R-S06-R | ||||
| White | FHV7Y-C063R-S06-W | FHV7Y-M063R-S06-W | ||||
| IR | --- | FHV7Y-M063R-S06-IR | ||||
| 9 mm | Multi color | FHV7Y-C063R-S09-MC | FHV7Y-M063R-S09-MC | |||
| Red | --- | FHV7Y-M063R-S09-R | ||||
| White | FHV7Y-C063R-S09-W | FHV7Y-M063R-S09-W | ||||
| IR | --- | FHV7Y-M063R-S09-IR | ||||
| 12 mm | Multi color | FHV7Y-C063R-S12-MC | FHV7Y-M063R-S12-MC | |||
| Red | --- | FHV7Y-M063R-S12-R | ||||
| White | FHV7Y-C063R-S12-W | FHV7Y-M063R-S12-W | ||||
| IR | --- | FHV7Y-M063R-S12-IR | ||||
| 16 mm | Multi color | FHV7Y-C063R-S16-MC | FHV7Y-M063R-S16-MC | |||
| Red | --- | FHV7Y-M063R-S16-R | ||||
| White | FHV7Y-C063R-S16-W | FHV7Y-M063R-S16-W | ||||
| IR | --- | FHV7Y-M063R-S16-IR | ||||
| 25 mm | Multi color | FHV7Y-C063R-S25-MC | FHV7Y-M063R-S25-MC | |||
| Red | --- | FHV7Y-M063R-S25-R | ||||
| White | FHV7Y-C063R-S25-W | FHV7Y-M063R-S25-W | ||||
| IR | --- | FHV7Y-M063R-S25-IR | ||||
* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).
Optical Filters
| Item | Model | ||
|---|---|---|---|
 |
Polarization Filter | For visible light | FHV-XPL |
 |
Polarization Filter | For both infrared light and visible light | FHV-XPL-IR |
 |
Diffusion Filter | FHV-XDF | |
Waterproof Hoods
Required to ensure IP67 protection without using a lighting module.
| Item | Model | |
|---|---|---|
 |
Waterproof Hood for Lens Modules | FHV-XHD-LEM |
 |
Waterproof Hood for C-mount Lens (Short) *1 | FHV-XHD-S |
 |
Waterproof Hood for C-mount Lens (Long) *2 | FHV-XHD-L |
*1. Can be used with the following lenses.
3Z4S-LE SV-0614V, 3Z4S-LE SV-0813V, 3Z4S-LE SV-1214V, 3Z4S-LE SV-1614V, 3Z4S-LE SV-2514V
*2. Can be used with the following lenses.
3Z4S-LE SV-0614H, 3Z4S-LE SV-0814H, 3Z4S-LE SV-1214H, 3Z4S-LE SV-1614H,
3Z4S-LE SV-2514H, 3Z4S-LE SV-3514H, 3Z4S-LE SV-5014H
3Z4S-LE SV-0614V, 3Z4S-LE SV-0813V, 3Z4S-LE SV-1214V, 3Z4S-LE SV-1614V, 3Z4S-LE SV-2514V
*2. Can be used with the following lenses.
3Z4S-LE SV-0614H, 3Z4S-LE SV-0814H, 3Z4S-LE SV-1214H, 3Z4S-LE SV-1614H,
3Z4S-LE SV-2514H, 3Z4S-LE SV-3514H, 3Z4S-LE SV-5014H
Cables
| Item | Cable length | Model | |
|---|---|---|---|
 |
I/O Cable (Bend Resistant) *1 | 2m | FHV-VDB2 2M |
| 3m | FHV-VDB2 3M | ||
| 5m | FHV-VDB2 5M | ||
| 10m | FHV-VDB2 10M | ||
| 20m | FHV-VDB2 20M | ||
 |
I/O Cable (Bend Resistant, Right-angle) *1 | 2m | FHV-VDLB2 2M |
| 3m | FHV-VDLB2 3M | ||
| 5m | FHV-VDLB2 5M | ||
| 10m | FHV-VDLB2 10M | ||
| 20m | FHV-VDLB2 20M | ||
 |
I/O Cable (Super Bend Resistant) *1 | 5m | FHV-VDBX2 5M |
| 10m | FHV-VDBX2 10M | ||
 |
I/O Cable (Super Bend Resistant, Right-angle) *1 | 5m | FHV-VDLBX2 5M |
| 10m | FHV-VDLBX2 10M | ||
 |
Ethernet Cable (Bend Resistant) | 2m | FHV-VNB2 2M |
| 3m | FHV-VNB2 3M | ||
| 5m | FHV-VNB2 5M | ||
| 10m | FHV-VNB2 10M | ||
| 20m | FHV-VNB2 20M | ||
 |
Ethernet Cable (Bend Resistant, Right-angle) | 2m | FHV-VNLB2 2M |
| 3m | FHV-VNLB2 3M | ||
| 5m | FHV-VNLB2 5M | ||
| 10m | FHV-VNLB2 10M | ||
| 20m | FHV-VNLB2 20M | ||
 |
Ethernet Cable (Super Bend resistant) | 5m | FHV-VNBX2 5M |
| 10m | FHV-VNBX2 10M | ||
 |
Ethernet Cable (Super Bend resistant, Right-angle) | 5m | FHV-VNLBX2 5M |
| 10m | FHV-VNLBX2 10M | ||
 |
External Light Conversion Cable for MDMC Light/
Photometric Stereo Light |
0.1m | FHV-VFLX-GD |
*1. The FHV-VDB2/VDLB2/VDBX2/VDLBX2 I/O Cable cannot be connected when the smart camera data unit is used.
Use the FHV-VUB2/VULB2/VUBX2/VULBX2 Smart Camera Data Unit Cable.
Smart Camera Data Unit
| Item | Model | |
|---|---|---|
 |
Paralle linterface | FHV-SDU10 |
 |
EtherCAT interface | FHV-SDU30 |
Smart Camera Data Unit Cable
| Item | Cable length | Model | ||
|---|---|---|---|---|
 |
Smart Camera data unit cable(Bend resistant) *1 | 2m | FHV-VUB2 2M | |
| 3m | FHV-VUB2 3M | |||
| 5m | FHV-VUB2 5M | |||
| 10m | FHV-VUB2 10M | |||
| 20m | FHV-VUB2 20M | |||
 |
Smart Camera data unit cable(Bend resistant, Right-angle) *1 | 2m | FHV-VULB2 2M | |
| 3m | FHV-VULB2 3M | |||
| 5m | FHV-VULB2 5M | |||
| 10m | FHV-VULB2 10M | |||
| 20m | FHV-VULB2 20M | |||
 |
Smart Camera data unit cable(Super Bend resistant) *1 | 5m | FHV-VUBX2 5M | |
| 10m | FHV-VUBX2 10M | |||
 |
Smart Camera data unit cable(Super Bend resistant, Right-angle)
*1 |
5m | FHV-VULBX2 5M | |
| 10m | FHV-VULBX2 10M | |||
 |
Parallel I/O Cable | 2m | XW2Z-S013-2 | |
| 5m | XW2Z-S013-5 | |||
 |
Parallel I/O Cable for Connector-terminal Conversion Unit
Connector-Terminal Block Conversion Units can be connected (Terminal Blocks Recommended Products: OMRON XW2R-[]34G-T) |
0.5m | XW2Z-050EE | |
| 1m | XW2Z-100EE | |||
| 1.5m | XW2Z-150EE | |||
| 2m | XW2Z-200EE | |||
| 3m | XW2Z-300EE | |||
| 5m | XW2Z-500EE | |||
 |
Connector-Terminal Block
Conversion Units, Generalpurpose devices *2 |
Phillips screw | --- | XW2R-J34GD-T |
| Slotted screw (rise up) | --- | XW2R-E34GD-T | ||
| Push-in spring | --- | XW2R-P34GD-T | ||
*1. The FHV-VDB2/VDLB2/VDBX2/VDLBX2 I/O Cable cannot be connected when this cable is used.
*2. Refer to the XW2R datasheet for details.
Accessories
| Item | Model | ||
|---|---|---|---|
 |
Base Mount for Smart Cameras and Lighting Controllers | FHV-XMT-7 | |
 |
Base Mount for Lighting Controllers | FHV-XMT-7-TCC | |
 |
Light Cover (for replacement) *1 | FHV-XCV | |
 |
Waterproof Cap (for replacement) | for Ethernet Connecter | FHV-XWC-ECN |
 |
for Light Connecter | FHV-XWC-LCN | |
 |
Waterproof Packing *2
(for replacement, 5 pcs) |
for Camera | FHV-XWP-CAM |
 |
for Lighting Module | FHV-XWP-LTM | |
 |
for Waterproof Hood | FHV-XWP-HD-SL | |
 |
Light-shielding for Lighting Module (for replacement, 3 pcs) *3 | FHV-XLS-LTM | |
 |
Cover for High-speed Lens Module
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece)) |
FHV-XFC-LEM-H | |
 |
Cover for Standard Lens Module
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece)) |
FHV-XFC-LEM-S | |
 |
Cover for C-mount Lens
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece)) |
FHV-XFC-C | |
| --- | Screw for microSD card cover (for replacement, 10 pcs) | FHV-XSCR-MSD | |
*1. Adapted lighting module
FHV-LTM-W, FHV-LTM-R, FHV-LTM-IR, FHV-LTM-MC
*2. Always replace when a module is removed.
*3. It is considered a consumable item that will deteriorate. Please replace as needed.
FHV-LTM-W, FHV-LTM-R, FHV-LTM-IR, FHV-LTM-MC
*2. Always replace when a module is removed.
*3. It is considered a consumable item that will deteriorate. Please replace as needed.
Accessories
| Item | Descriptions | Model | ||
|---|---|---|---|---|
| --- | External Lights | LED | FLV Series | |
| High-brightness LED | FL-BR/DR Series | |||
| Photometric Stereo Light | FL-PS Series | |||
| MDMC Light
(Built-in lighting controller) |
FL-MD Series | |||
| --- | Lighting controller | LED | FLV-TCC/ATC | |
| High-brightness LED | FL-TCC/STC | |||
| For photometric Stereo Light | FL-TCC1PS | |||
 |
Industrial Switching Hubs for
EtherNet/IP and Ethernet |
5 port | Current consumption:
0.07 A |
W4S1-05D |
Lenses
Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.
| Resolution | Camera Model | Size of image
element |
Recommended lens | ||
|---|---|---|---|---|---|
| Standard
Lens |
Telecentric
Lens |
Vibrations and Shocks
Resistant Lens |
|||
| 0.4 million-pixel | FHV7Y-[]004 | 1/2.9” equivalent | SV-V Series | VS-TCH Series | VS-MCA Series
Non-telecentric Macro VS-MC Series |
| 1.6 million-pixel | FHV7Y-[]016 | 1/2.9” equivalent | |||
| 3.2 million-pixel | FHV7Y-[]032 | 1/1.8” equivalent | SV-H Series | ||
| 5 million-pixel | FHV7Y-[]060 | 2/3” equivalent | |||
| 6.3 million-pixel | FHV7Y-[]063R | 1/1.8” equivalent | |||
| 12 million-pixel | FHV7Y-[]120R | 1/1.7” equivalent | |||
Recommended EtherCAT Communications Cables
Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.
Cable with Connectors
| Item | Appearance | Recommended
manufacturer |
Cable
length (m) |
Model |
|---|---|---|---|---|
| Cable with Connectors on Both Ends
(RJ45/RJ45) Standard RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: PUR Cable color: Yellow *2 |
 |
OMRON | 0.3 | XS6W-6PUR8SS30CM-YF |
| 0.5 | XS6W-6PUR8SS50CM-YF | |||
| 1 | XS6W-6PUR8SS100CM-YF | |||
| 2 | XS6W-6PUR8SS200CM-YF | |||
| 3 | XS6W-6PUR8SS300CM-YF | |||
| 5 | XS6W-6PUR8SS500CM-YF | |||
| Cable with Connectors on Both Ends
(RJ45/RJ45) Rugged RJ45 plugs type *1 Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Light blue |
 |
OMRON | 0.3 | XS5W-T421-AMD-K |
| 0.5 | XS5W-T421-BMD-K | |||
| 1 | XS5W-T421-CMD-K | |||
| 2 | XS5W-T421-DMD-K | |||
| 5 | XS5W-T421-GMD-K | |||
| 10 | XS5W-T421-JMD-K | |||
| Cable with Connectors on Both Ends
(M12 Straight/M12 Straight) Shield Strengthening Connector cable *3 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black |
 |
OMRON | 0.5 | XS5W-T421-BM2-SS |
| 1 | XS5W-T421-CM2-SS | |||
| 2 | XS5W-T421-DM2-SS | |||
| 3 | XS5W-T421-EM2-SS | |||
| 5 | XS5W-T421-GM2-SS | |||
| 10 | XS5W-T421-JM2-SS | |||
| Cable with Connectors on Both Ends
(M12 Straight/RJ45) Shield Strengthening Connector cable *3 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black |
 |
OMRON | 0.5 | XS5W-T421-BMC-SS |
| 1 | XS5W-T421-CMC-SS | |||
| 2 | XS5W-T421-DMC-SS | |||
| 3 | XS5W-T421-EMC-SS | |||
| 5 | XS5W-T421-GMC-SS | |||
| 10 | XS5W-T421-JMC-SS |
*1 Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m,
3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m.
Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m,
10 m, 15 m.
For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. Cables colors are available in yellow, green, and blue.
*3. For details, contact your OMRON representative.
Cables / Connectors
| Item | Recommended
manufacturer |
Model | |
|---|---|---|---|
| Products for EtherCAT
(1000BASE-T/100BASE-TX) Wire gauge and number of pairs: AWG24, 4-pair cable |
Cable | Hitachi Metals, Ltd. | NETSTAR-C5E SAB 0.5 x 4P CP *1 |
| Kuramo Electric Co. | KETH-SB *1 | ||
| RJ45 Connector | Panduit Corporation | MPS588-C *1 | |
| Products for EtherCAT
(100BASE-TX/10BASE-T) Wire gauge and number of pairs: AWG22, 2-pair cable |
Cable | Kuramo Electric Co. | KETH-PSB-OMR *2 |
| JMACS Japan Co., Ltd. | PNET/B *2 | ||
| RJ45 Assembly
Connector  |
OMRON | XS6G-T421-1 *2 | |
*1 We recommend you to use the above Cable and RJ45 Connector together.
*2 We recommend you to use the above Cable and RJ45 Assembly Connector together.
Touch Panel Monitor
Omron Model
| Item | Screen size | Frame color | Model | |
|---|---|---|---|---|
 |
Touch Panel Monitor
for FHV7 Smart Camera series |
15.4 inch | Black | NYE2A-20F11-15WR1200 |
| 15.4 inch | Silver * | NYE2A-20F11-15WR1300 | ||
| 12.1 inch | Black | NYE2A-20F11-12WR1200 | ||
| 12.1 inch | Silver * | NYE2A-20F11-12WR1300 | ||
 |
High-Pressure
Waterproof Attachment (PWA) |
15.4 inch | --- | NA-15WATW01 |
| 12.1 inch | --- | NA-12WATW01 | ||
 |
Anti-reflection Sheets | 15.4 inch | --- | NA-15WKBA04 |
| 12.1 inch | --- | NA-12WKBA04 | ||
* The silver color is a European area limited model.
Advantech Model
Ask Advantech about the warranty period and coverage of this product.
| Item | Model | Recommended manufacturer | |
|---|---|---|---|
 |
Touch Panel Monitor | PPC-310-OMR | Find your local office on the Advantech website
https://www.advantech.com/contact/offices/ |
| ARM VESA Standard
(A-CLEVER) for PPC Series |
PPC-ARM-A03 | ||
| Wall mount kit for PPC Series | PPC-174T-WL-MTE | ||
| Stand for PPC Series | PPC-Stand-A1E | ||
| ADP A/D 100-240V 90W 19V W/PFC | 96PSA-A90W19OT-3 | ||
| Power cord 3P UL 10 A 125 V 1.8 m | 1700001524 | ||
| Power cord 3P Europe
(WS-010+083) 1.83 m |
170203183C | ||
| Power cord 3P/3P PSE 1.8 m | 1700008921-11 | ||
| Power cord 3P CCC (China) 1.8 m | 96CB-POWER-B-1.8M | ||
Automation Software Sysmac Studio
The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI.
For details, refer to your local OMRON website and Sysmac Studio Catalog (Cat. No. P138).
Note. For information of “FHV7X” models, refer to theFHV7X Series Smart Camera Datasheet (Catalog No. Q376) listed in the Catalog column.
last update: October 1, 2026
Top of Page
© Copyright OMRON Corporation 2007 - 2026. All Rights Reserved.
