(Unit: mm)
CP2E
CP series CP2E CPU Unit
Micro PLC designed to support data collection and Machine to Machine communication
CP Function Blocks
Introducing function blocks that support design such as Modbus communication and PID control
Related Contents
- Programmable Controllers
- Special Contents
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 1, 2019

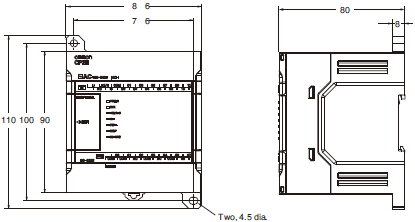

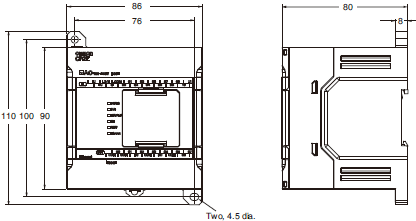

CPU Units with 14 or 20 I/O Points
CP2E-N14/20D[]-[]
CP2E-E14/20D[]-[]

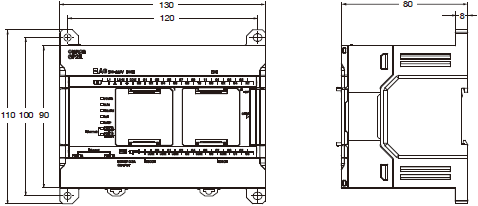

CPU Units with 30 I/O Points
CP2E-N30D[]-[]
CP2E-E30D[]-[], CP2E-S30D[]-[]

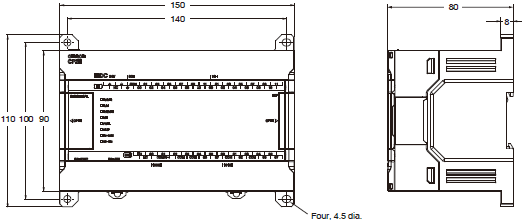

CPU Units with 40 I/O Points
CP2E-N40D[]-[]
CP2E-E40D[]-[], CP2E-S40D[]-[]

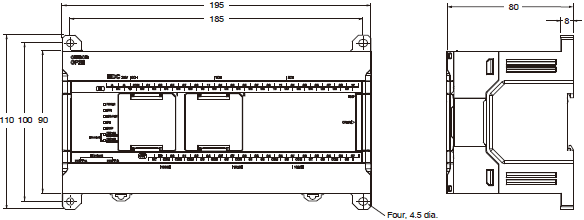

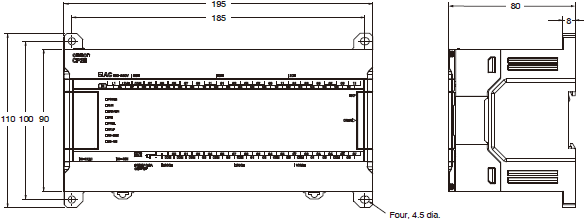

CPU Units with 60 I/O Points
CP2E-N60D[]-[]
CP2E-E60D[]-[], CP2E-S60D[]-[]
Expansion I/O Units and Expansion Units
CP1W-8E[][]

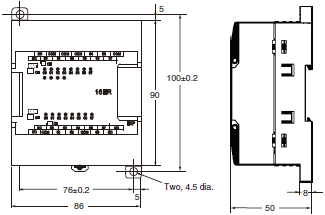

CP1W-20ED[]/CP1W-16E[][]/CP1W-AD04[]/CP1W-DA021/CP1W-DA04[]/CP1W-MAD[][]/CP1W-TS[][]1/[][]2/[][]3

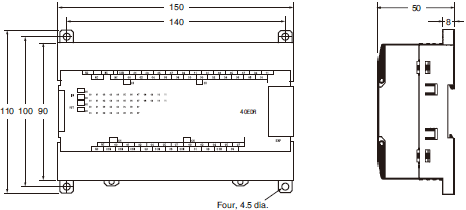

CP1W-40ED[]/CP1W-32E[][]/CP1W-TS004
last update: October 1, 2019
