E3X-ZV / MZV

Smart Fiber Amplifier Units

E3X-ZV / MZV

Solidly Stable Presence/Absence Detection at an Amazing Price

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

Pre-wired Amplifier Units

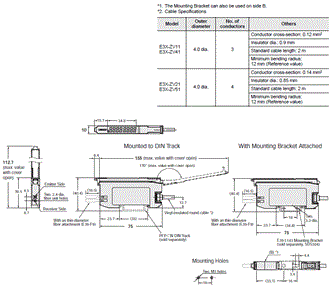

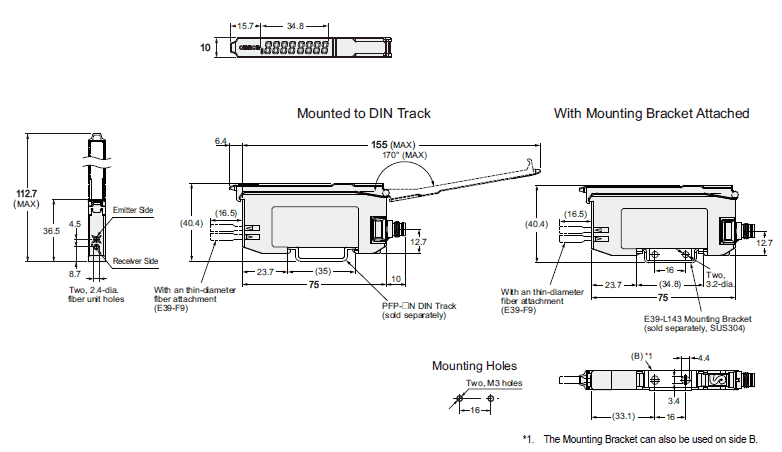

E3X-ZV11
E3X-ZV41

E3X-ZV / MZV Dimensions 3

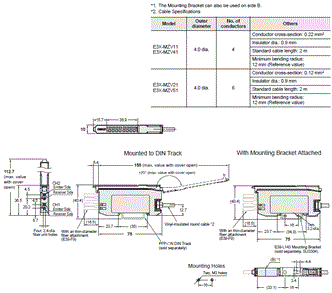

E3X-MZV11
E3X-MZV41

E3X-ZV / MZV Dimensions 4

Wire-saving Connectors Units

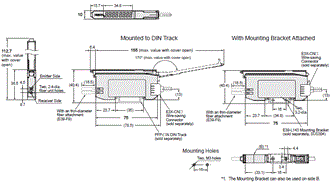

E3X-ZV6
E3X-ZV8

E3X-ZV / MZV Dimensions 5

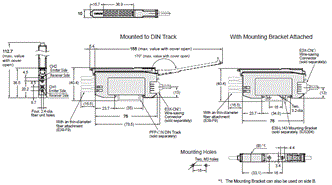

E3X-MZV6
E3X-MZV8

E3X-ZV / MZV Dimensions 6

Accessories (Sold Separately)

Wire-saving Connectors

Master Connector

E3X-CN11
E3X-CN21

E3X-ZV / MZV Dimensions 9

Slave Connector

E3X-CN12
E3X-CN22

E3X-ZV / MZV Dimensions 10

DIN Track

PFP-100N
PFP-50N

E3X-ZV / MZV Dimensions 11

Material: Aluminum

Mounting Bracket

E39-L143

E3X-ZV / MZV Dimensions 13

Material: Stainless steel (SUS304)

End Plate

PFP-M

E3X-ZV / MZV Dimensions 15

Materials: Iron, zinc plating
