Global
(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
E5ED-H
Digital Temperature Controller (48 x 96 mm)
High resolution and high precision input are available. 0.01°C display. Equipped with functions specialized for the digital industry. Push-In Plus terminal blocks reduce wiring work.
Related Contents
- Temperature Controllers
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: April 1, 2025

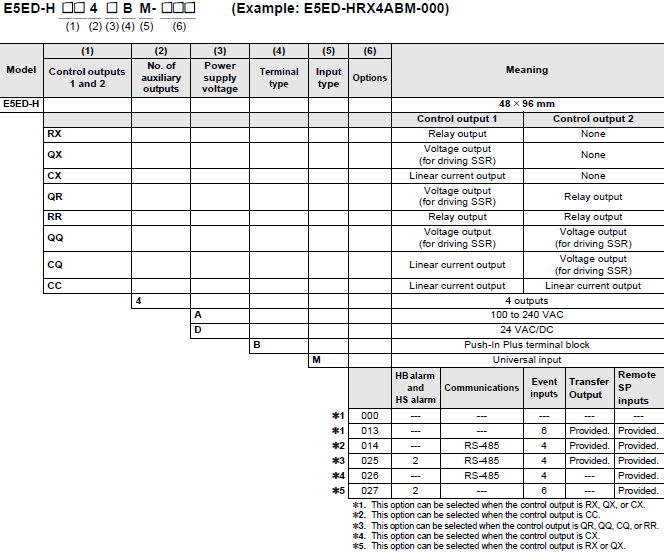

Model Number Legend
Models with Push-In Plus Terminal Blocks
Heating and Cooling Control
Using Heating and Cooling Control
List of Models
| Model |
|---|
| E5ED-HRX4ABM-000 |
| E5ED-HRX4DBM-000 |
| E5ED-HRX4ABM-013 |
| E5ED-HRX4DBM-013 |
| E5ED-HRX4ABM-027 |
| E5ED-HRX4DBM-027 |
| E5ED-HQX4ABM-000 |
| E5ED-HQX4DBM-000 |
| E5ED-HQX4ABM-013 |
| E5ED-HQX4DBM-013 |
| Model |
|---|
| E5ED-HQX4ABM-027 |
| E5ED-HQX4DBM-027 |
| E5ED-HCX4ABM-000 |
| E5ED-HCX4DBM-000 |
| E5ED-HCX4ABM-013 |
| E5ED-HCX4DBM-013 |
| E5ED-HCX4ABM-026 |
| E5ED-HCX4DBM-026 |
| E5ED-HQR4ABM-025 |
| E5ED-HQR4DBM-025 |
| Model |
|---|
| E5ED-HRR4ABM-025 |
| E5ED-HRR4DBM-025 |
| E5ED-HQQ4ABM-025 |
| E5ED-HQQ4DBM-025 |
| E5ED-HCQ4ABM-025 |
| E5ED-HCQ4DBM-025 |
| E5ED-HCC4ABM-014 |
| E5ED-HCC4DBM-014 |
Optional Products (Order Separately)
USB-Serial Conversion Cable
| Model |
|---|
| E58-CIFQ2 |
Communication Conversion Cable
| Model |
|---|
| E58-CIFQ2-E |
Note: Always use this product together with the E58-CIFQ2.
Waterproof Packing
| Model |
|---|
| Y92S-P9 |
Note: This Waterproof Packing is provided with the Digital Temperature Controller.
Waterproof Cover
| Model |
|---|
| Y92A-49N |
Front Port Cover
| Model |
|---|
| Y92S-P7 |
Note: This Front Port Cover is provided with the Digital Controller.
Mounting Adapter
| Model |
|---|
| Y92F-51 (2pcs) |
Note: This Mounting Adapter is provided with the Digital Temperature Controller.
Current Transformers (CTs)
| Hole diameter | Model |
|---|---|
| 5.8 mm | E54-CT1 |
| 5.8 mm | E54-CT1L* |
| 12.0 mm | E54-CT3 |
| 12.0 mm | E54-CT3L* |
*Lead wires are included with these CTs. If UL certification is required, use these CTs.
CX-Thermo Support Software
| Model |
|---|
| EST2-2C-MV4 |
Note: CX-Thermo version 4.70 or higher is required for the E5ED-H.
For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4.
