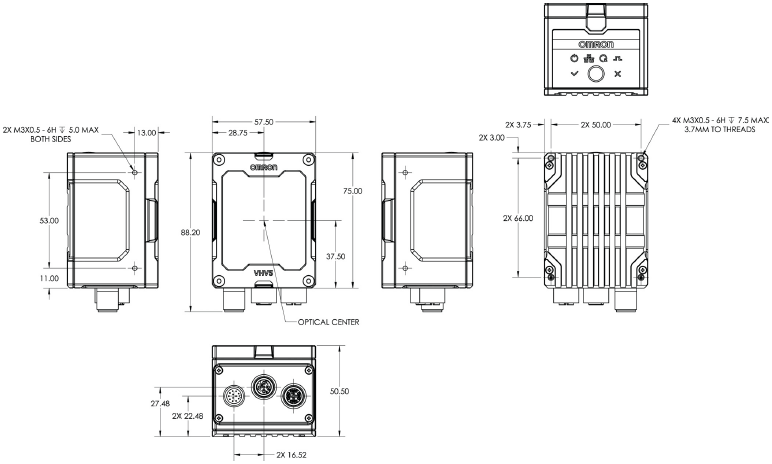

VHV5-F

(Unit: mm)

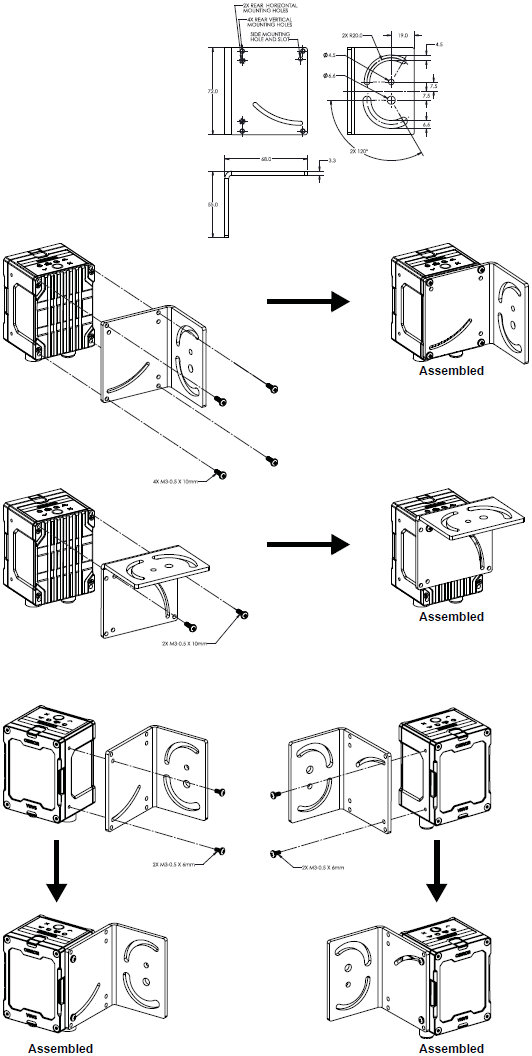

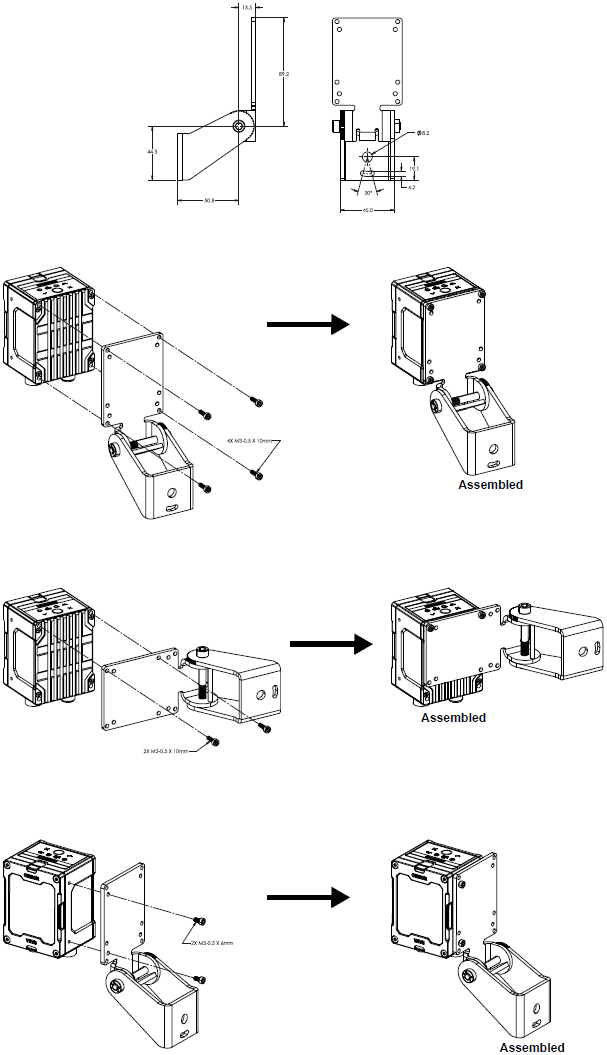

VHV5-F L-Bracket Adjustable Angle Mounting Kit
VHV5-AM0

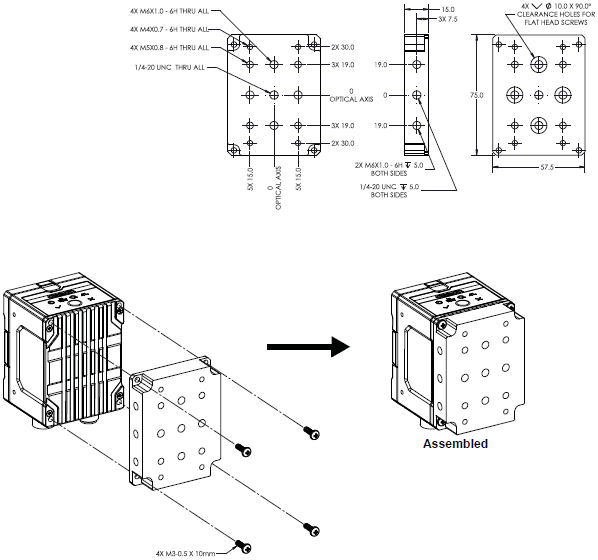

VHV5-F Universal Mounting Block and Heatsink
VHV5-AM1

VHV5-F APG Pan and Tilt Camera Mount
VHV5-AM2

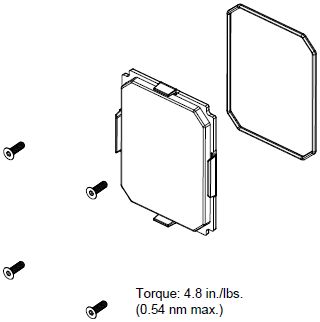

VHV5-F Standard Window (for Medium Lens Models)
VHV5-AF0

VHV5-F Lensed Window (for Narrow and Long Lens Models)
VHV5-AF1

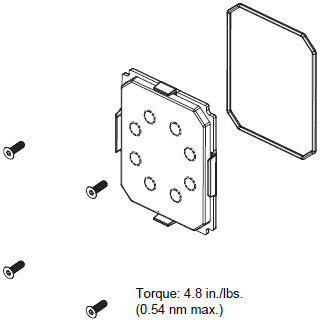

VHV5-F Diffuser Accessory
VHV5-AF2

VHV5-F Polarizer Accessory
VHV5-AF3

VHV5-F Half Polarizer Accessory
VHV5-AF4

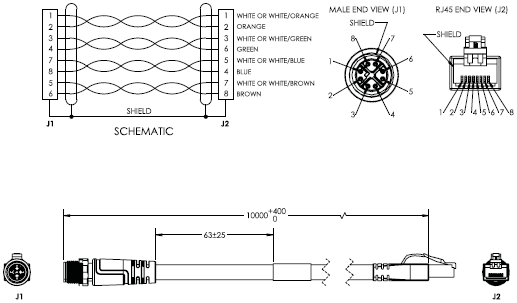

X-Code to RJ45 Ethernet Cable (High Flex, Straight, Black Jacket) – 1 M, 2 M, 5 M, 10 M
61-9000134-01
61-9000134-02
61-9000134-03
61-9000134-04

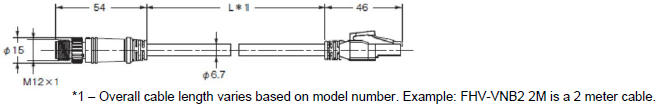

X-Code to RJ45 Ethernet Cable (High Flex, Straight, Black Jacket) – 2 M, 3 M, 5 M, 10 M, 20 M
FHV-VNB2 2M
FHV-VNB2 3M
FHV-VNB2 5M
FHV-VNB2 10M
FHV-VNB2 20M

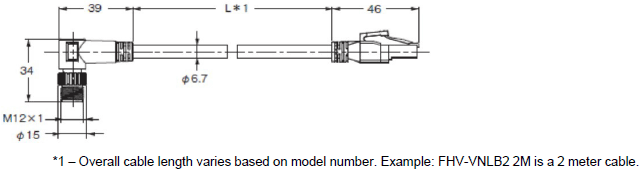

X-Code to RJ45 Ethernet Cable (High Flex, Right- Angle, Black Jacket) – 2 M, 3 M, 5 M, 10 M, 20 M
FHV-VNLB2 2M
FHV-VNLB2 3M
FHV-VNLB2 5M
FHV-VNLB2 10M
FHV-VNLB2 20M

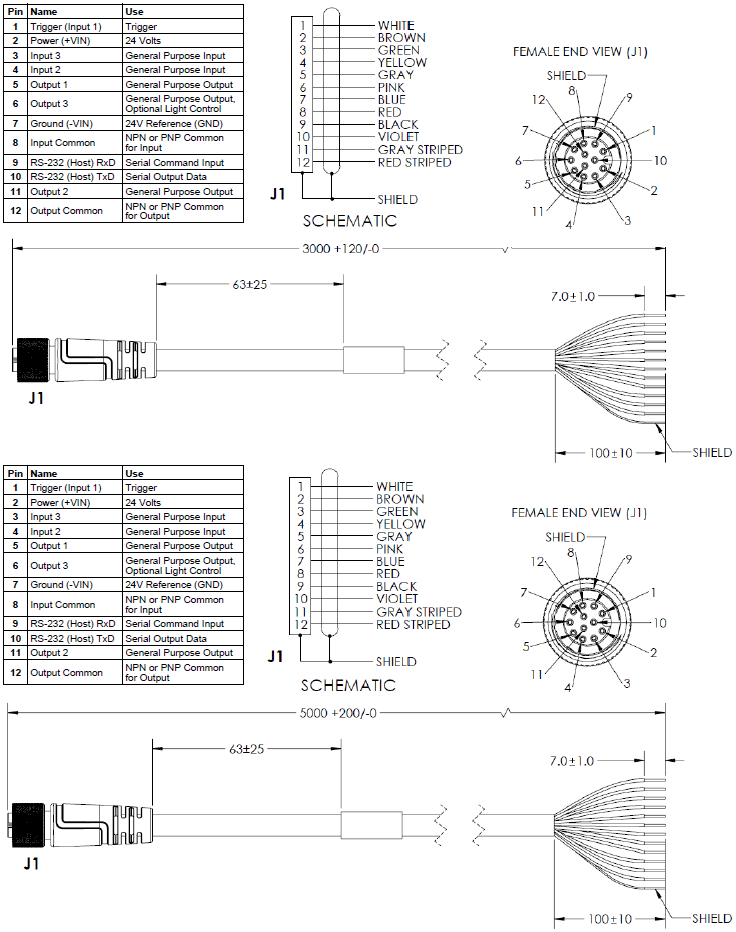

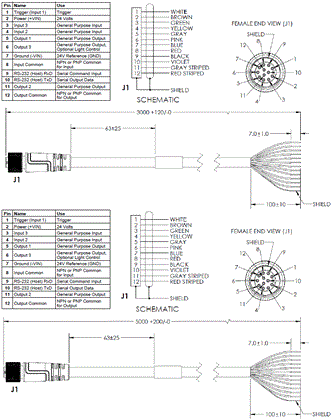

M12 to Flying Leads Cable – Parallel IO (Power, DIO, RS-232) – 3 Meters, 5 Meters, 10 Meters
V430-W8-3M
V430-W8-5M
V430-W8-10M

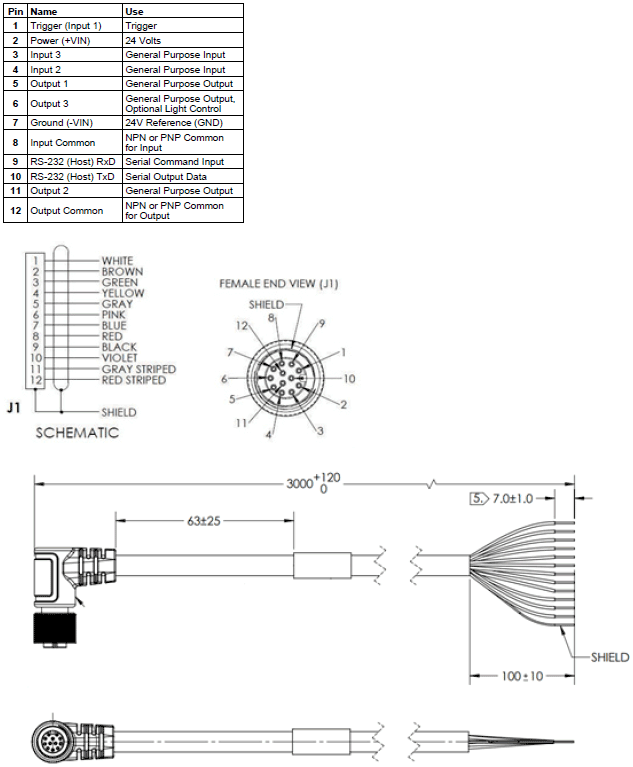

M12 to Flying Leads Cable – Parallel IO (Power, DIO, RS-232), Right Angle Back – 3 Meters
V430-W8LD-3M

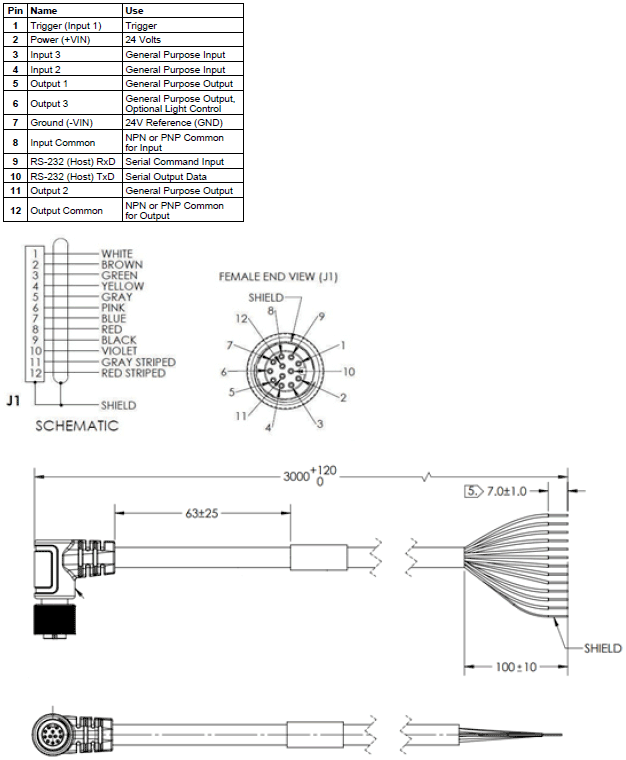

M12 to Flying Leads Cable – Parallel IO (Power, DIO, RS-232), Right Angle Front – 3 Meters
V430-W8LU-3M

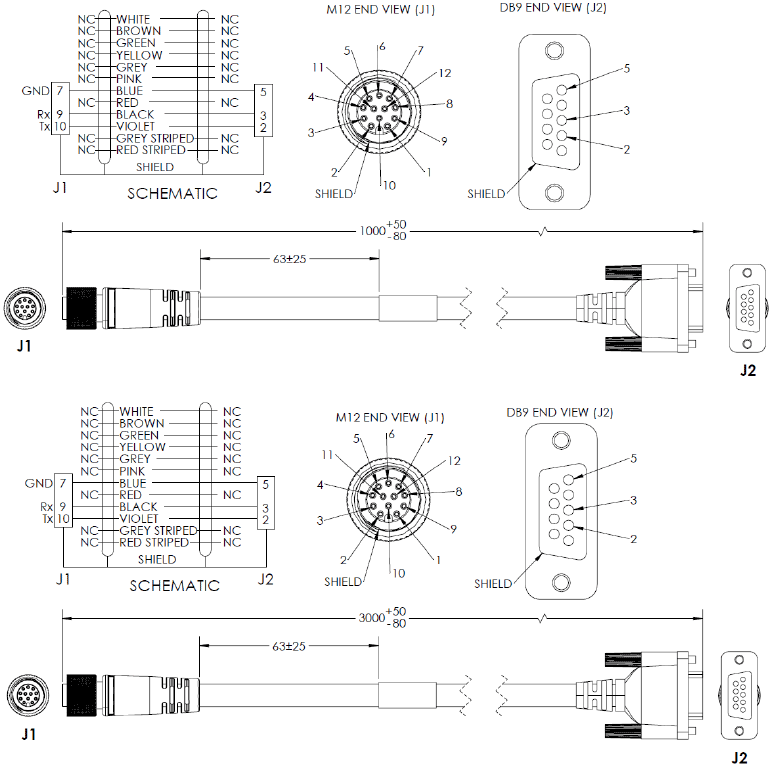

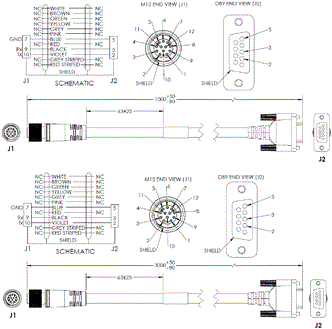

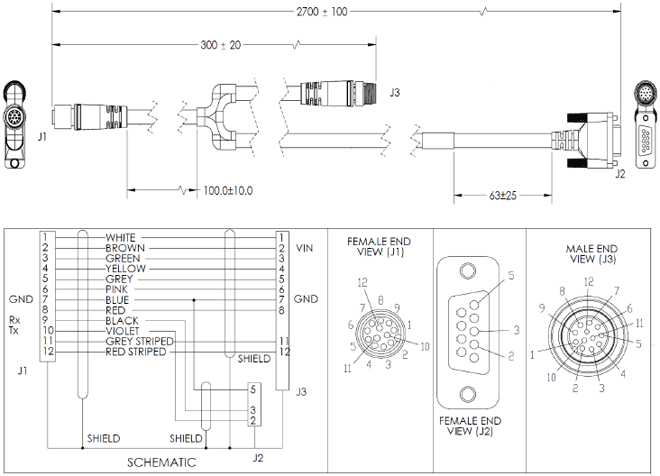

Reader M12 to RS-232 Breakout Cable – 1 Meter, 3 Meters
V430-WR-1M
V430-WR-3M

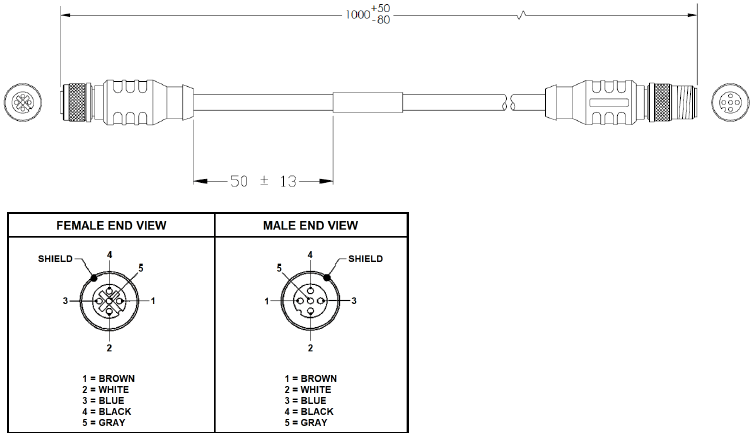

VHV5-F to External Light – 5 Pin M12 Plug to 5 Pin M12 Socket – 1 Meter
61-000184-01

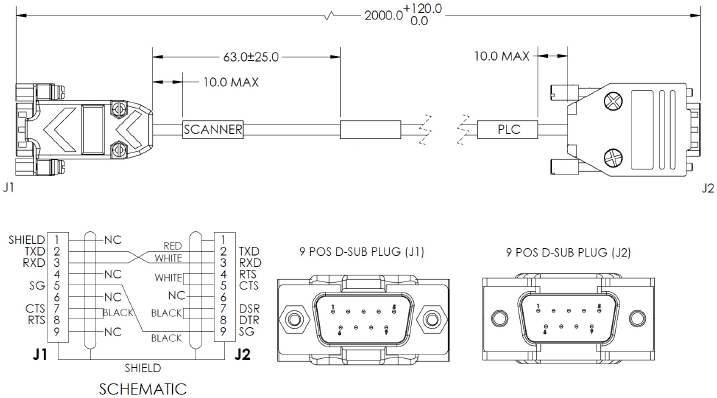

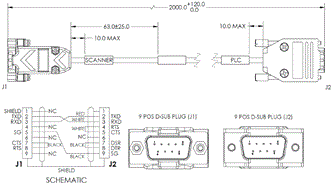

Cable, Adapter, Omron PLC – 2 Meters
V430-WPLC-2M

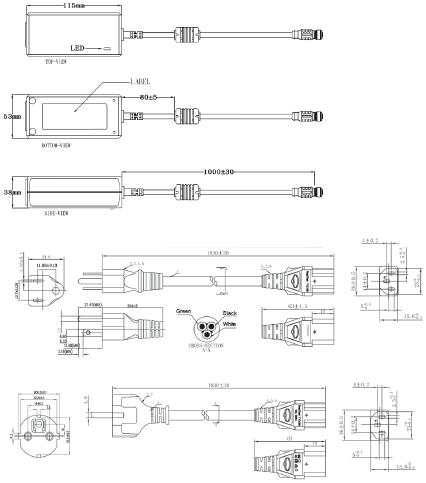

Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket – 1 Meter – U.S. / Euro Plug
97-000012-01

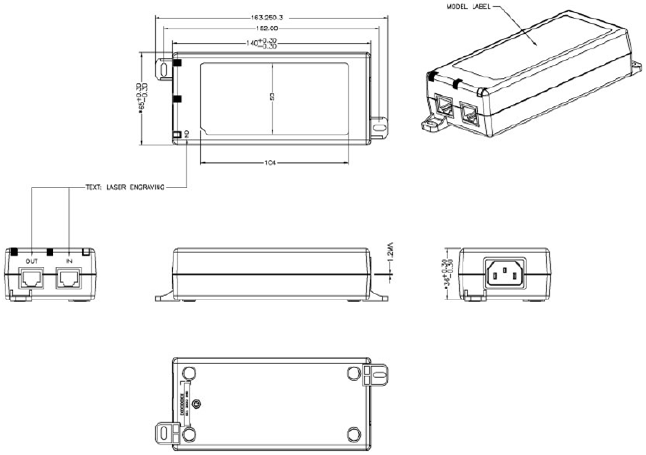

Single Port PoE Injector, 30W, IEEE802.3at Compliant, 2 x RJ45 Connector, 90 to 264VAC
98-9000311-01

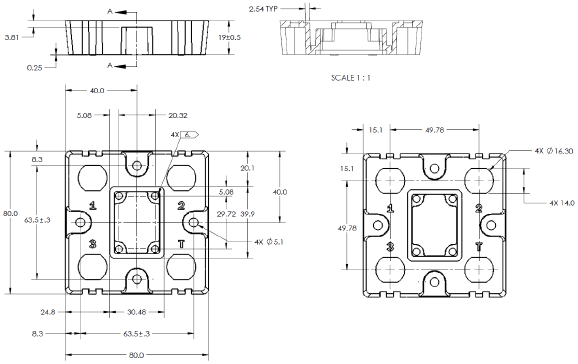

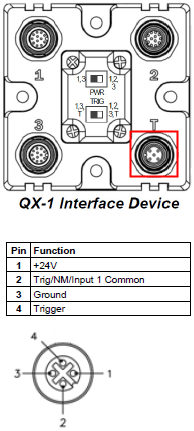

QX-1 Interconnect Module – Power, Trigger, Daisy Chain, Smart Light Control Breakout
98-000103-02

The QX-1’s receptacles do not have explicit pin assignments. The QX-1 allows users to bus power and communications as required by the application.
Connectors 1 and 3 are 12-pin plugs, and connector 2 is a 12-pin socket. All three connectors can be assigned to bus power and data as required by the application.
The two switches at the center of the device allow the user to route signals as needed.

The diagram at left (also shown on the base of the QX-1) illustrates how power, communications, I/O, and trigger signal can be routed through the QX-1 device depending on the needs of the application. The switches greatly increase signal routing flexibility.

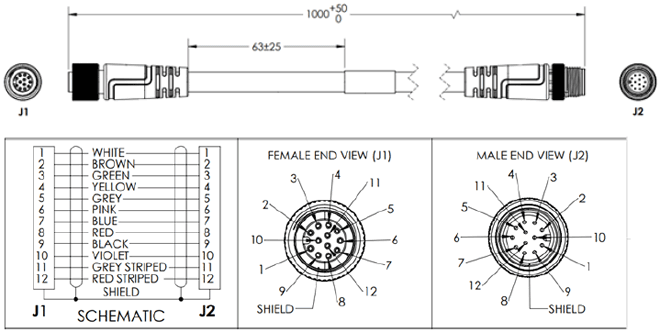

Reader to QX-1 Interconnect Cable – M12 Socket to M12 Plug. 1 Meter, 3 Meters, 5 Meters
V430-WQ-1M
V430-WQ-3M
V430-WQ-5M

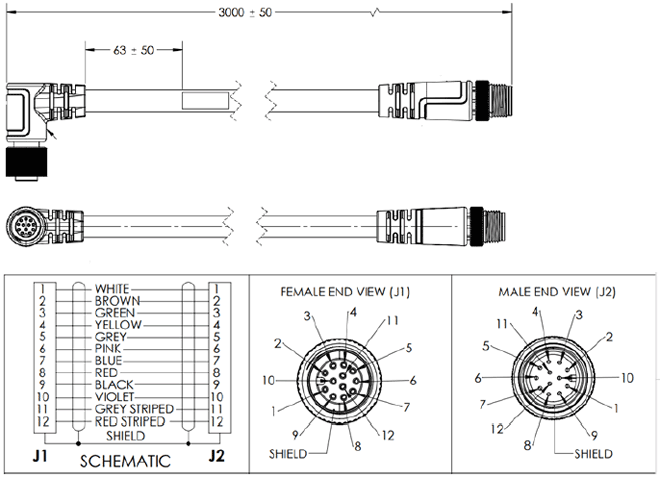

Reader to QX-1 Interconnect Cable – M12 Socket to M12 Plug – 1 Meter, 3 Meters (Right Angle to Back of Camera)
61-000162-03
61-000148-03

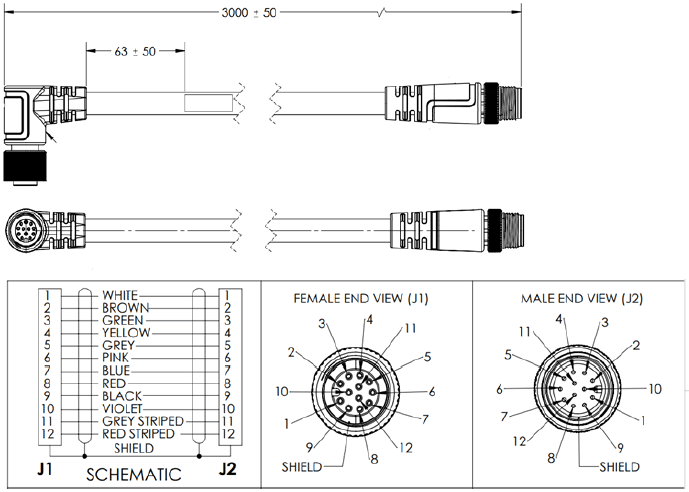

Right Angle Reader to QX-1 Interconnect Cable – M12 Socket to M12 Plug – 1 Meter, 3 Meters (Right Angle to Front of Camera)
61-000162-04
61-000148-04

VHV5-F to QX-1 Interconnect Cables with RS-232 Breakout – 3 Meters, 5 Meters
V430-WQR-3M
V430-WQR-5M

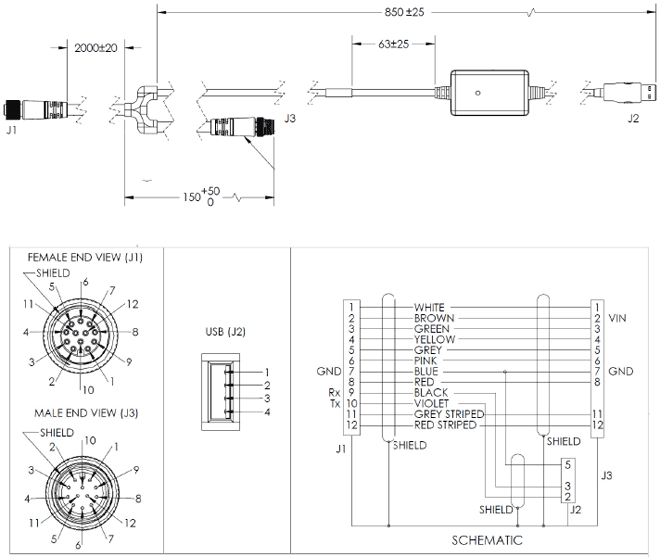

VHV5-F to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout – 3 Meters
V430-WQK-3M

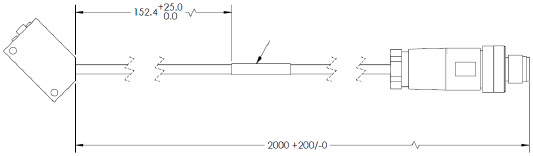

QX-1 Photo Sensor, M12 4-Pin Plug, NPN, Light ON / Dark ON – 2 Meters
99-9000016-01

QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or Photo Sensor – Screw Terminal Connector
98-9000239-01
