AI Detection Camera
Related Contents
last update: October 1, 2025
| Item | Resolution | Color/
Monochrome |
Light color | Camera installation
distance (mm) |
X field of view ×
Y field of view (mm) |
Model |
|---|---|---|---|---|---|---|
 |
1.6 million pixels | Color | White | 60 to 1,000 | 39 × 29 to 845 × 624 | FHV7X-C016-S06-W-01 |
| 60 to 1,000 | 23.5 × 17.5 to 543 × 407 | FHV7X-C016-S09-W-01 | ||||
| 60 to 1,000 | 16.5 × 12.5 to 407 × 305 | FHV7X-C016-S12-W-01 | ||||
| 110 to 2,000 | 27 × 20 to 614 × 460 | FHV7X-C016-S16-W-01 | ||||
| 188 to 2,000 | 30 × 23 to 390 × 290 | FHV7X-C016-S25-W-01 |

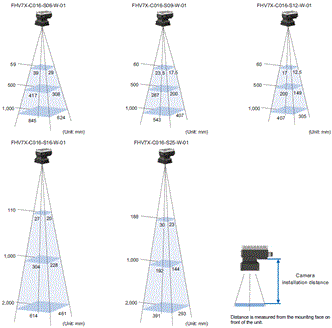

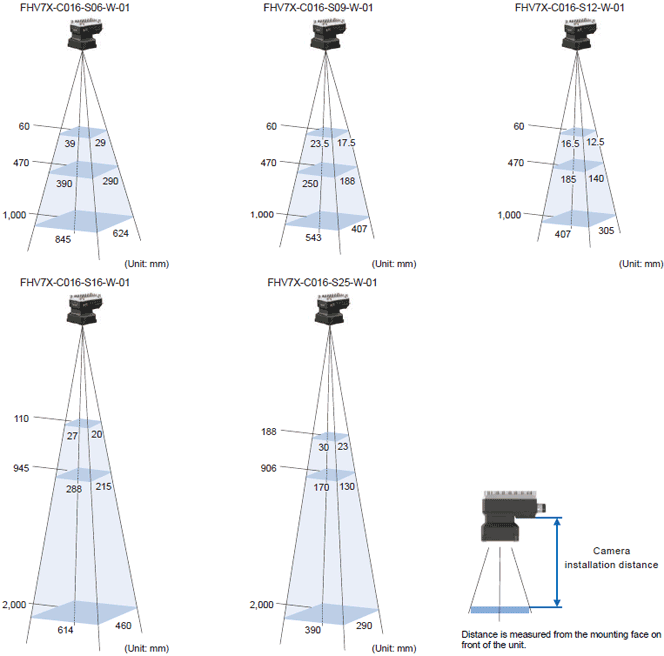

Minimum inspectable size is 180 pixels (X) × 180 pixels (Y). Size in millimeters varies depending on FOV, as is shown in the table below.
| Y field of view (mm) | 15 | 35 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimum inspectable size (mm) * | 2.5 | 6 | 8 | 17 | 25 | 33 | 42 | 50 | 67 | 83 | 100 |
* Size corresponding to 180 pixels for specified FOV.
| Item | Cable
length |
Model | |
|---|---|---|---|
 |
I/O Cable (Bend Resistant) | 2m | FHV-VDB2 2M |
| 3m | FHV-VDB2 3M | ||
| 5m | FHV-VDB2 5M | ||
| 10m | FHV-VDB2 10M | ||
| 20m | FHV-VDB2 20M | ||
 |
I/O Cable (Bend Resistant, Right-angle) | 2m | FHV-VDLB2 2M |
| 3m | FHV-VDLB2 3M | ||
| 5m | FHV-VDLB2 5M | ||
| 10m | FHV-VDLB2 10M | ||
| 20m | FHV-VDLB2 20M | ||
 |
Ethernet Cable (Bend Resistant) | 2m | FHV-VNB2 2M |
| 3m | FHV-VNB2 3M | ||
| 5m | FHV-VNB2 5M | ||
| 10m | FHV-VNB2 10M | ||
| 20m | FHV-VNB2 20M | ||
 |
Ethernet Cable (Bend Resistant, Right-angle) | 2m | FHV-VNLB2 2M |
| 3m | FHV-VNLB2 3M | ||
| 5m | FHV-VNLB2 5M | ||
| 10m | FHV-VNLB2 10M | ||
| 20m | FHV-VNLB2 20M | ||
| Item | Model | |
|---|---|---|
 |
Paralle linterface | FHV-SDU10 |
| Item | Cable
length |
Model | ||
|---|---|---|---|---|
 |
Smart Camera data unit cable (Bend resistant) *1 | 2m | FHV-VUB2 2M | |
| 3m | FHV-VUB2 3M | |||
| 5m | FHV-VUB2 5M | |||
| 10m | FHV-VUB2 10M | |||
| 20m | FHV-VUB2 20M | |||
 |
Smart Camera data unit cable (Bend resistant, Right-angle) *1 | 2m | FHV-VULB2 2M | |
| 3m | FHV-VULB2 3M | |||
| 5m | FHV-VULB2 5M | |||
| 10m | FHV-VULB2 10M | |||
| 20m | FHV-VULB2 20M | |||
 |
Parallel I/O Cable | 2m | XW2Z-S013-2 | |
| 5m | XW2Z-S013-5 | |||
 |
Parallel I/O Cable for Connector-terminal Conversion Unit
Connector-Terminal Block Conversion Units can be connected (Terminal Blocks Recommended Products: OMRON XW2R-[]34G-T) |
0.5m | XW2Z-050EE | |
| 1m | XW2Z-100EE | |||
| 1.5m | XW2Z-150EE | |||
| 2m | XW2Z-200EE | |||
| 3m | XW2Z-300EE | |||
| 5m | XW2Z-500EE | |||
 |
Connector-Terminal Block
Conversion Units, General- purpose devices *2 |
Phillips screw | --- | XW2R-J34GD-T |
| Slotted screw (rise up) | --- | XW2R-E34GD-T | ||
| Push-in spring | --- | XW2R-P34GD-T | ||
*1. The FHV-VDB2/VDLB2/VDBX2/VDLBX2 I/O Cable cannot be connected when this cable is used.
*2. Refer to the XW2R datasheet for details.
| Item | Model | ||
|---|---|---|---|
 |
Base Mount for Smart Cameras and Lighting Controllers | FHV-XMT-7 | |
 |
Waterproof Cap (for replacement) | for Ethernet Connecter | FHV-XWC-ECN |
 |
for Light Connecter | FHV-XWC-LCN | |
| --- | Screw for microSD card cover (for replacement, 10 pcs) | FHV-XSCR-MSD | |
| Item | Descriptions | Model | ||
|---|---|---|---|---|
 |
Industrial Switching Hubs for
EtherNet/IP and Ethernet |
5 port | Current consumption:
0.07 A |
W4S1-05D |
| Item | Screen size | Frame color | Model | |
|---|---|---|---|---|
 |
Touch Panel Monitor for
FHV7 Smart Camera series |
15.4 inch | Black | NYE2A-20F11-15WR1200 |
| 15.4 inch | Silver * | NYE2A-20F11-15WR1300 | ||
| 12.1 inch | Black | NYE2A-20F11-12WR1200 | ||
| 12.1 inch | Silver * | NYE2A-20F11-12WR1300 | ||
 |
High-Pressure Waterproof Attachment (PWA) | 15.4 inch | --- | NA-15WATW01 |
| 12.1 inch | --- | NA-12WATW01 | ||
 |
Anti-reflection Sheets | 15.4 inch | --- | NA-15WKBA04 |
| 12.1 inch | --- | NA-12WKBA04 | ||
* The silver color is a European area limited model.
