Square Sockets

Model P2RF (front-mounting)
Number of pins
5 pins P2RFZ-05
Approx. 30 g
811_lu_1_3		 P2RFZ-05-E*1
Approx. 30 g
811_lu_1_14
8 pins P2RFZ-08
Approx. 38 g
811_lu_1_6		 P2RFZ-08-E*1
Approx. 38 g
811_lu_1_15

Model P2R (back-mounting) P7TF
(front-mounting)
Number of pins Solder terminals PCB terminals
5 pins P2R-05A*2
Approx. 5 g
811_lu_1_7		 P2R-05P
Approx. 5 g
811_lu_1_8		 P2R-057P
Approx. 5.5 g
811_lu_1_9		 P7TF-05
Approx. 28 g
811_lu_1_13
8 pins P2R-08A*2
Approx. 5 g
811_lu_1_10		 P2R-08P
Approx. 5 g
811_lu_1_11		 P2R-087P
Approx. 5.5 g
811_lu_1_12		 ―――

Note: 1. The structure of []-E models provides finger protection. Round terminals cannot be used. Use forked crimp
             terminals.
         2. To remove the Relay, pull the lever on the Socket with your fingers supporting the lever and the opposite side of
             the Relay case, and jiggle the Relay.
*1. Use a #1 Phillips screwdriver to tighten the screws on this Socket.
*2. This is not a flux-tight structure. We recommend manual soldering for this product.

Model PYF (front-mounting) PY (back-mounting)
Number
of pins		 Solder terminals Wrapping terminals PCB terminals
8 pins PYFZ-08
Approx. 32 g
811_lu_3_4		 PYFZ-08-E *3
Approx. 32 g
811_lu_3_25		 PY08
Approx. 8 g
811_lu_3_10		 PY08-Y1
PY08-Y3
811_lu_3_11		 PY08QN
Approx. 12 g
PY08QN2
811_lu_3_16		 PY08QN-Y1
PY08QN2-Y1
811_lu_3_17		 PY08-02 *2
Approx. 7.2 g
811_lu_3_22
PYF08M
Approx. 26 g
811_lu_3_3
11 pins PYF11A
Approx. 43 g
811_lu_3_5		 PY11
Approx. 9 g
811_lu_3_12		 PY11-Y1
811_lu_3_13		 PY11QN
PY11QN2
811_lu_3_18		 PY11QN-Y1
PY11QN2-Y1
811_lu_3_19		 PY11-02 *2
811_lu_3_23
14 pins PYFZ-14
Approx. 50 g
811_lu_3_8		 PYFZ-14-E *1
Approx. 50 g
811_lu_3_9		 PY14
Approx. 10 g
811_lu_3_14		 PY14-Y1
PY14-Y3
811_lu_3_15		 PY14QN
Approx. 14 g
PY14QN2
811_lu_3_20		 PY14QN-Y1
PY14QN2-Y1
PY14QN-Y3
PY14QN2-Y3
811_lu_3_21		 PY14-02 *2
811_lu_3_24

Note: The structure of []-E models provides finger protection. Round terminals cannot be used. Use forked crimp
         terminals.
*1. Use a #1 Phillips screwdriver to tighten the screws on this Socket.
*2. The structure does not resist flux. Manual soldering is recommended for this product.

Model PTF (front-mounting) PT (back-mounting)
Number
of pins		 Solder terminals Wrapping terminals PCB terminals
8 pins PTF08A
Approx. 47 g
811_lu_4_1		 PTFZ-08-E *1
Approx. 46 g
811_lu_4_15		 PT08
Approx. 11 g
811_lu_4_6		 PT08QN
Approx. 10.4 g
811_lu_4_9		 PT08-0 *2
Approx. 8 g
811_lu_4_12
11 pins PTF11A
Approx. 61 g
811_lu_4_3		 PT11
Approx. 13 g
811_lu_4_7		 PT11QN
811_lu_4_10		 PT11-0 *2
Approx. 12.2 g
811_lu_4_13
14 pins PTF14A
Approx. 77 g
811_lu_4_4		 PTFZ-14-E *1
Approx. 74 g
811_lu_4_16		 PT14
Approx. 17 g
811_lu_4_8		 PT14QN
Approx. 20 g
811_lu_4_11		 PT14-0 *2
Approx. 16.2 g
811_lu_4_14

Note: The structure of []-E models provides finger protection. Round terminals cannot be used. Use forked crimp
         terminals.
*1. Use a #1 Phillips screwdriver to tighten the screws on this Socket.
*2. The structure does not resist flux. Manual soldering is recommended for this product.

Model P7LF (front-mounting)
Number of pins
6 pins P7LF-06
Approx. 60 g
811_lu_6_1

Round Sockets

Model PF
(front-
mounting)		 P2CF
(front-
mounting)		 PFA
(front-
mounting)		 P3G
(back-
mounting)		 PL (back-mounting)
Number
of pins		 Solder
terminals		 Wrapping
terminals		 PCB
terminals
8 pins PF083A
Approx. 34 g
811_lu_8_1		 P2CF-08
Approx. 55 g
811_lu_8_6		 8PFA
Approx. 57 g
811_lu_8_10		 P3G-08
Approx. 40 g
811_lu_8_14
Note: The
Y92A-48G
Terminal
Cover can
be used to
provide
finger
protection.		 PL08
Approx. 14 g
811_lu_8_16		 PL08-Q
Approx. 15 g
811_lu_8_20		 PLE08-0
Approx. 10.6 g
811_lu_8_22
PF083A-E *
811_lu_8_2		 P2CF-08-E
811_lu_8_7		 8PFA1
Approx. 66 g
811_lu_8_11
PF085A
Approx. 40 g
811_lu_8_3
11 pins PF113A
Approx. 47 g
811_lu_8_4		 P2CF-11
Approx. 70 g
811_lu_8_8		 11PFA
Approx. 74 g
811_lu_8_12		 P3GA-11
Approx. 47 g
811_lu_8_15
Note: The
Y92A-48G
Terminal
Cover can
be used to
provide
finger
protection.		 PL11
Approx. 15 g
811_lu_8_17		 PL11-Q
Approx. 18.5 A
811_lu_8_21		 PLE11-0
Approx. 10.8 g
811_lu_8_23
PF113A-E *
811_lu_8_5		 P2CF-11-E
811_lu_8_9
14 pins ―― ―― 14PFA
Approx. 104 g
811_lu_8_13		 ―― PL15
Approx. 28 g
811_lu_8_18		 ―― ――
20 pins ―― ―― ―― ―― PL20
Approx. 17 g
811_lu_8_19		 ―― ――

Note: The structure of []-E models provides finger protection. Round terminals cannot be used. Use forked crimp
            terminals.
* Use a #1 Phillips screwdriver to tighten the screws on this Socket.

Terminal Cover

Model Y92A-48G
Appearance 811_lu_10_1

Hold-down Clips

(Unit: mm)

For Square Sockets

PKC
One Set (2 CliPs)
811_lu_11_2		 PTC-1
811_lu_11_3		 PYC-A1
Approx. 0.54 g
One Set (2 Clips)
811_lu_11_4		 PYC-E1
One Set (2 Clips)
811_lu_11_6		 PYC-P
Approx. 1.4 g
811_lu_11_7		 PYC-P2
Approx. 1.2 g
811_lu_11_8
PYC-S
Approx. 1.8 g
811_lu_11_9		 PYC-1
Approx. 6 g
811_lu_11_10		 PYC
Approx. 0.2 g
811_lu_11_14		 Y92H-1
One Set (2 Clips)
811_lu_11_15		 Y92H-3
One Set (2 Clips)
811_lu_11_16		 Y92H-4
811_lu_11_17

For Round Sockets

PFC-A1
Approx. 2.2 g
One Set (2 Clips)
811_lu_12_1		 PFC-A6
Approx. 2.4 g
One Set (2 Clips)
811_lu_12_2		 PFC-A7
Approx. 3.0 g
One Set (2 Clips)
811_lu_12_3		 PLC
Approx. 2.4 g
One Set (2 Clips)
811_lu_12_4		 PLC-1
Approx. 2.6 g
One Set (2 Clips)
811_lu_12_5
PLC-7
Approx. 3.0 g
One Set (2 Clips)
811_lu_12_6		 PLC-8
Approx. 6.4 g
One Set (2 Clips)
811_lu_12_7		 PLC-10
Approx. 2.0 g
One Set (2 Clips)
811_lu_12_8		 PLC-12
Approx. 5.4 g
One Set (2 Clips)
811_lu_12_9		 ―――

Applicable Hold-down Clips

For Square Sockets

Sockets PYF(Z) Series PTF(Z) Series PYF08M PY[](QN) PT[](QN) PY[]-02 PT[]-0
Applicable models
MY[], MY[]N,
MY[]-D,
MY2[]-CR,
MY4[]-CR,
MY4Z[]-CR,
MY[]-TU,
MY2K,
MY[]N-D2,
MYQ[],
G3F(D) Series,
G3FM		 PYC-A1 --- PYC
PYC-P		 PYC-P --- PYC-P ---
LY[], LY[]N,
LY[]-TU,
G3H(D) Series,
G9H		 --- PYC-A1 --- --- PYC-P --- PYC-P
MY[]I * PYC-A1 --- --- PYC-P2 --- PYC-P2 ---
LY[]I --- PYC-A1 --- --- PYC-P2 --- PYC-P2
MY4H PYC-A1 --- --- PYC-P --- PYC-P ---
MY2Z[]-CR,
MY3[]-CR		 Y92H-3 --- --- PYC-1 --- PYC-1 ---
LY[]-CR --- Y92H-3 --- --- PYC-1 --- ---
G7K --- PKC --- --- --- --- ---
H3Y Y92H-3 --- Y92H-4 --- Y92H-4 ---

Note: The [] in the model number is replaced with 08, 11, or 14.
* If you use a Hold-down Clip with the MY2I, you cannot use the PYFZ-08.
   Use the PYFZ-14.

For Round Sockets

Sockets PF083A
PF113A		 PL08 (-Q)
PL11 (-Q)		 PLE08-0
PLE11-0		 P2CF-11
Applicable models
61F-03B, -04B PFC-A1 PLC PLC-10 ---
61F-LS, 61F-AO,
61F-WL		 PFC-N8 PHC-5
MK2P Series,
MK2KP,
MK3P[](-US)		 PFC-A1 PLC
MK3ZP
MK3LP		 PLC-1
MYA-NA1, -NB1
MYA-LA1, -LB1
MYA-NA2, -NB2
MYA-LA2, -LB2		 PFC-A6 PLC-7 --- ---
MYA-LA12, -LB12 PFC-A7 PLC-8 --- ---
APR-S PFC-A6 PLC-7 --- ---
APR-S380/-S440 --- --- --- Y92H-1
LG2 PFC-A7 PLC-8 --- ---

Note: 1. The 8PFA(1), 11PFA, and 14PFA are held with hooks.
         2. The PL15, PL20, and PF202, as well as models not given in the above table, require panel processing for
             installation.
         3. The PF085A Hold-down Clip is included with the H3M and H2A. It is an option (sold separately) for the H2C.

For Screw Terminal Sockets

Short Bars

Applicable
sockets		 Pitch Dimensions (mm) Number
of poles		 Insulation
color		 Short Bars Model Maximum
carry
current		 Minimum
order
(set)
P2RFZ-08-E
for shorting
contact
COM
terminals		 6.8
mm		 811_lu_19_1 20 Blue(S) P2DN-6.8-100S 20 A 1
P2RFZ-05-E
P2RFZ-08-E		 15.7
mm		 811_lu_19_2 10 P2DN-15.7-100S
P2RFZ-08
for shorting
contact
COM
terminals		 8.5
mm		 811_lu_19_3 20 Blue(S) P2DN-8.5-100S 20 A 1
P2RFZ-05
P2RFZ-08		 19.4
mm		 811_lu_19_4 10 P2DN-19.4-100S

Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
         2. Use the Short Bars for crossover wiring within one Socket or between Sockets.
         3. Use the short bars on the lower section of the socket.

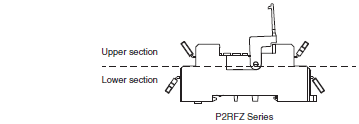

             When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
             (see the figure below).
             Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.

P2RFZ / P2RF, P2R, P7TF, PYFZ / PYF, PTFZ / PTF, PYD, PT, P7LF, PF, P2CF, PFA, P3G / P3GA, PL Lineup 22

* One set (order unit) contains 10 short bars and 20 caps.

Accessories for Short Bars (P2DN)

Cap

Short Bars Models Appearance Dimensions (mm) Model
P2DN-8.5-100S
P2DN-19.4-100S
P2DN-6.8-100S
P2DN-15.7-100S		 811_lu_20_1 811_lu_20_2 P2DN-CP100

Note: Use for insulation when using a cut short bar.

For Screw Terminal Sockets (P2RFZ-05/P2RFZ-08)

Terminal Covers for

Applicable models Appearance Model
P2RFZ-05

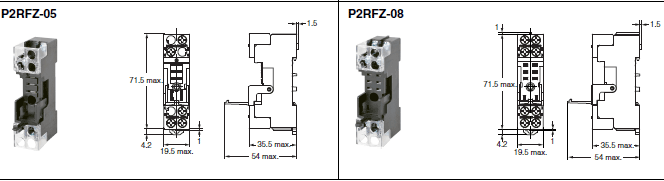

P2RFZ-08		 811_lu_21_1 P2CZ-C

Note: 1. Use these covers in a combination with P2RFZ-05 and P2RFZ-08.
         2. Do not install short bars (optional) on the upper section (see the figure below).
             Short bars may interfere with the terminal cover, making the terminal cover unusable.

P2RFZ / P2RF, P2R, P7TF, PYFZ / PYF, PTFZ / PTF, PYD, PT, P7LF, PF, P2CF, PFA, P3G / P3GA, PL Lineup 29

Dimensions with terminal cover

P2RFZ / P2RF, P2R, P7TF, PYFZ / PYF, PTFZ / PTF, PYD, PT, P7LF, PF, P2CF, PFA, P3G / P3GA, PL Lineup 30

Relay Sockets and Short Bars for PYFZ/PYF

Bridges within the Same Socket

Pitch Applicable
models		 Dimensions
(mm)		 Model Minimum order
(bag)		 Specifications
7 mm PYFZ-14 811_lu_14_1 PYD-020B[](2P) 1 Max. carry current: 20 A (18 A at 70°C)
Ambient operating temperature: -40 to 70°C (with no icing or condensation)
Ambient operating humidity: 45% to 85% (with no icing or condensation)
Conductor material: Brass
Conductor surface treatment: Nickel plating
Package qty: 50/bag
811_lu_14_2 PYD-030B[](3P) 1

Note: The [] in the model number is replaced with the insulation color specification code. B: Black, Y: Yellow

Bridges between Adjacent Sockets

Pitch Applicable
models		 Dimensions (mm) Model *1 Minimum order
(bag)		 Specifications
22 mm PYFZ-08 811_lu_15_1 PYD-025B[](2P) 1 Max. carry current: 20 A (18 A at 70°C)
Ambient operating temperature: -40 to 70°C (with no icing or condensation)
Ambient operating humidity: 45% to 85% (with no icing or condensation)
Conductor material: Brass
Conductor surface treatment: Nickel plating
Package qty: 10/bag
811_lu_15_2 PYD-085B[](8P) 1
29 mm PYFZ-14 811_lu_15_3 PYD-026B[](2P) 1 Max. carry current: 20 A (18 A at 70°C)
Ambient operating temperature: -40 to 70°C (with no icing or condensation)
Ambient operating humidity: 45% to 85% (with no icing or condensation)
Conductor material: Brass
Conductor surface treatment: Nickel plating
Package qty: 10/bag
811_lu_15_4 PYD-086B[](8P) 1

*1. The [] in the model number is replaced with the insulation color specification code. B: Black, S: Blue, R: Red

For Screw Terminal Sockets (PYFZ-08/PYFZ-14)

Terminal Covers for

Applicable models Appearance Model

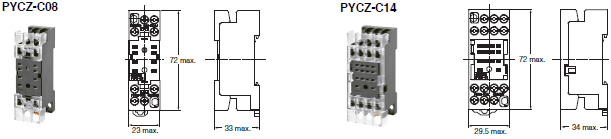

PYFZ-08 811_lu_18_1 PYCZ-C08
(2 pcs/set)
PYFZ-14 811_lu_18_2 PYCZ-C14
(1 pcs/set)

Note: Use these covers in a combination with PYFZ-08 and PYFZ-14.

Dimensions with terminal cover

P2RFZ / P2RF, P2R, P7TF, PYFZ / PYF, PTFZ / PTF, PYD, PT, P7LF, PF, P2CF, PFA, P3G / P3GA, PL Lineup 39

last update: June 23, 2025

Product Category

Site Information

© Copyright OMRON Corporation 2007 - 2025. All Rights Reserved.
