Voltage Sensor

SDV

Overvoltage/Undervoltage Monitoring Relay for AC and DC Input

Item list of SDV

Related Contents

last update: October 15, 2012

(Unit: mm)

Main Body

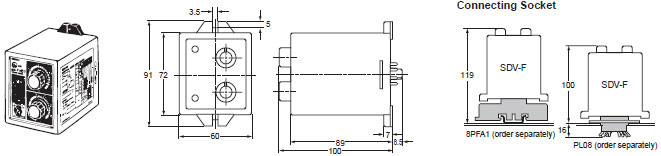

SDV-F[][]/SDV-FH[]T

SDV Dimensions 2

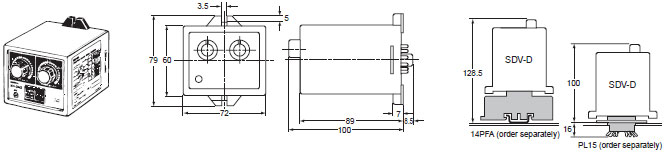

SDV-D[][]

SDV Dimensions 3

Shunts

SDV-SH5 to SDV-SH50 (60-mV Rating)

SDV Dimensions 5

SDV-SH75 to SDV-SH200 (60-mV Rating)

SDV Dimensions 6
SDV Dimensions 7

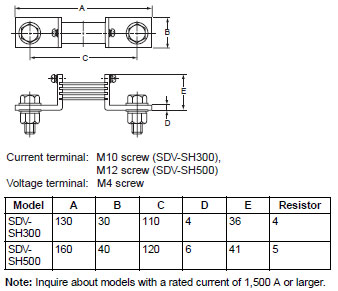

SDV-SH300/-SH500 (60-mV Rating)

SDV Dimensions 8

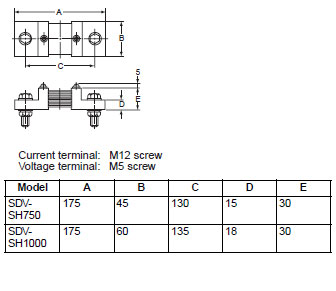

SDV-SH750/-SH1000 (60-mV Rating)

SDV Dimensions 9

Accessories (Order Separately)

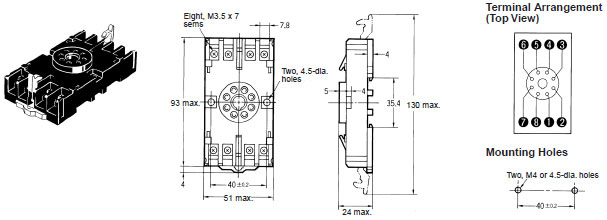

Front Connecting Socket

8PFA1

SDV Dimensions 12

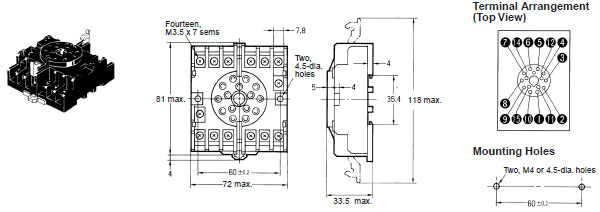

14PFA

SDV Dimensions 13

Back Connecting Socket (Solder Terminal)

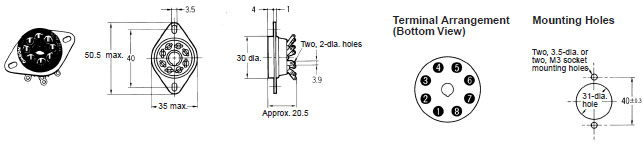

PL08

SDV Dimensions 15

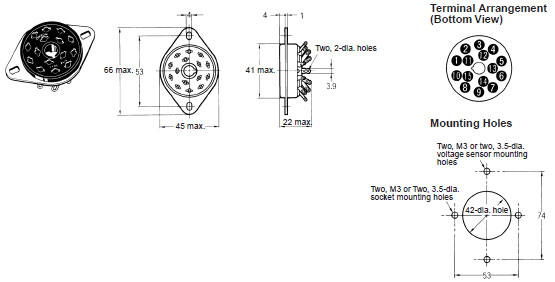

PL15

SDV Dimensions 16

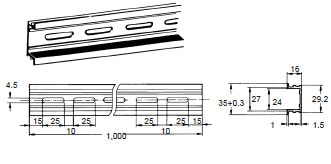

Mounting Track

PFP-100N
PFP-50N

SDV Dimensions 18

PFP-100N2

SDV Dimensions 19

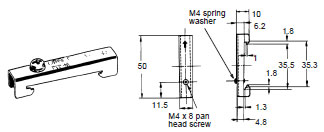

End Plates

PFP-M

SDV Dimensions 21

Spacers

PFP-S

SDV Dimensions 23
