Voltage Sensor


Compact, Economical Plug-in Type Voltage Sensing Relay

Caution: All units are in millimeters unless otherwise indicated.

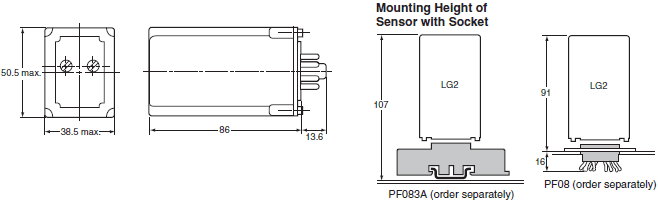

LG2 Dimensions 1

Accessories (Order Separately)

Connecting Socket

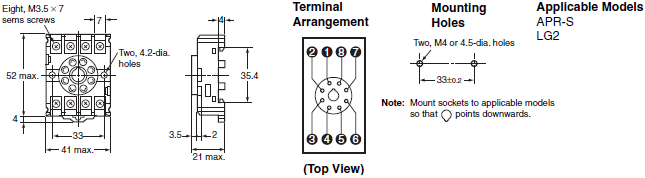

PF083A Front Connecting Socket

LG2 Dimensions 4

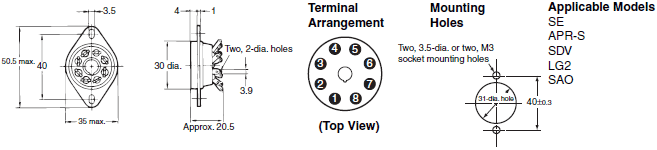

PL08 Back Connecting Socket (Solder Terminals)

LG2 Dimensions 5

Socket Mounting Track (for PF083A)

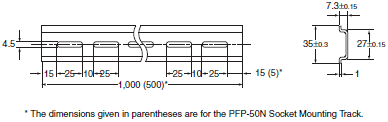

PFP-100N/PFP-50N Socket Mounting Track

LG2 Dimensions 7

Hold-down Clip

Use the Hold-down Clip to secure the Voltage Sensor on the Connecting Socket, as well as to prevent faulty contact.

LG2 Dimensions 8
