Global(Unit: mm)
G3S4
Terminal SSR
Compact Terminal SSR with 4 Outputs
Related Contents
- Terminal Relays
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 18, 2024
Relays
With Heat Sinks
G3S4-A
G3S4-D
Without Heat Sinks
G3S4-A1
G3S4-D1
Mounting Holes (Top View)
Terminal Arrangement/Internal Connections (Top View)
Note: Make sure that the polarity of the input terminal is correct.
The polarity given inside parentheses ( ) is for G3S4-D and G3S4-D1 Relays. There is no indication of polarity when
Connection Sockets are used alone.
The polarity given inside parentheses ( ) is for G3S4-D and G3S4-D1 Relays. There is no indication of polarity when
Connection Sockets are used alone.
Accessories (Order Separately)
Connection Socket (Can be Purchased Individually)

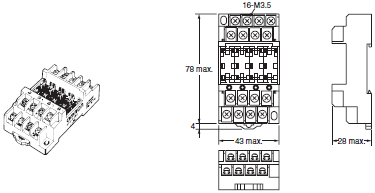

P6BF-4BND (with operation indicator)

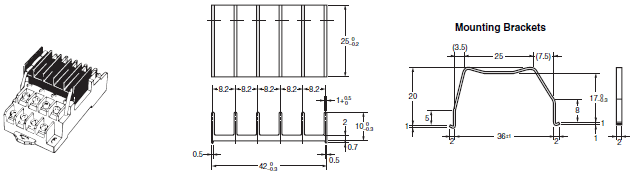

Heat Sinks (Can be Purchased Individually)
Y92B-S10

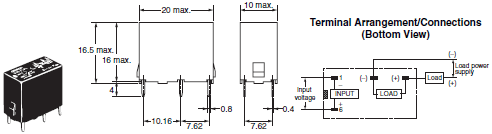

Replacement Relays
G3S-201PL-PD
G3SD-Z01P-PD
Note: 1. The polarity given inside parentheses ( ) is for DC loads.
2. The load can be connected to ether the positive or negative SSR output terminal.
2. The load can be connected to ether the positive or negative SSR output terminal.
Relay Removal Tool and Short Bar (Order Separately)
Refer to Options for the G6B-4CB, G6B-4[][]ND, and G3S4 on Data Sheet.
Relay Mounting Products (Order Separately)
Refer to Common Sockets/Products Related DIN Tracks.
