G3NE

Solid State Relays

G3NE

Compact, Low-cost, SSR Switching 5 to 20 A

Item list of G3NE

last update: April 12, 2017

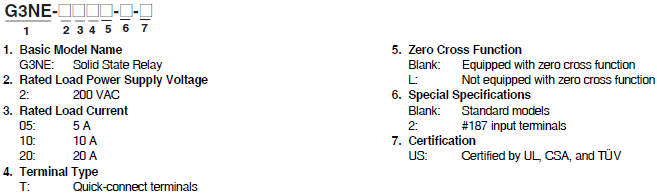

Model Number Legend

List of Models

Isolation	Zero cross function	Indicator	Rated output load	Rated input voltage (See note 1, 2.)	Model
Phototriac	Yes	No	5 A at 100 to 240 VAC	5VDC	G3NE-205T-US DC5 G3NE-205T-2-US DC5
				12VDC	G3NE-205T-US DC12 G3NE-205T-2-US DC12
				24VDC	G3NE-205T-US DC24 G3NE-205T-2-US DC24
			10 A at 100 to 240 VAC	5VDC	G3NE-210T-US DC5 G3NE-210T-2-US DC5
				12VDC	G3NE-210T-US DC12 G3NE-210T-2-US DC12
				24VDC	G3NE-210T-US DC24 G3NE-210T-2-US DC24
			20 A at 100 to 240 VAC	5VDC	G3NE-220T-US DC5 G3NE-220T-2-US DC5
				12VDC	G3NE-220T-US DC12 G3NE-220T-2-US DC12
				24VDC	G3NE-220T-US DC24 G3NE-220T-2-US DC24
	No		5 A at 100 to 240 VAC	5VDC	G3NE-205TL-US DC5 G3NE-205TL-2-US DC5
				12VDC	G3NE-205TL-US DC12 G3NE-205TL-2-US DC12
				24VDC	G3NE-205TL-US DC24 G3NE-205TL-2-US DC24
			10 A at 100 to 240 VAC	5VDC	G3NE-210TL-US DC5 G3NE-210TL-2-US DC5
				12VDC	G3NE-210TL-US DC12 G3NE-210TL-2-US DC12
				24VDC	G3NE-210TL-US DC24 G3NE-210TL-2-US DC24
			20 A at 100 to 240 VAC	5VDC	G3NE-220TL-US DC5 G3NE-220TL-2-US DC5
				12VDC	G3NE-220TL-US DC12 G3NE-220TL-2-US DC12
				24VDC	G3NE-220TL-US DC24 G3NE-220TL-2-US DC24

Note: 1. The rated input voltage depends on the ambient temperature. For details, refer to Load Current vs. Ambient
Temperature in Engineering Data on Data Sheet.
2. When ordering, specify the input voltage.
3. Refer to List of Certified Models for a list of products that comply with safety standards. When ordering a UL,
CSA, and EN (TÜV) certified model, add "-US" to the model number.

Accessories (Order Separately)

One-touch Mounting Plates

Model	Applicable SSR
R99-12 FOR G3NA	G3NE

Heat Sinks

The following heat sinks are thin and can be DIN-track mounted.
See Dimensions for details.

Model	Applicable SSR
Y92B-N50	G3NE-205T(L)(-2)-US/-210T(L)(-2)-US
Y92B-N100	G3NE-220T(L)(-2)-US
