A165S / W

Ordering as a Set

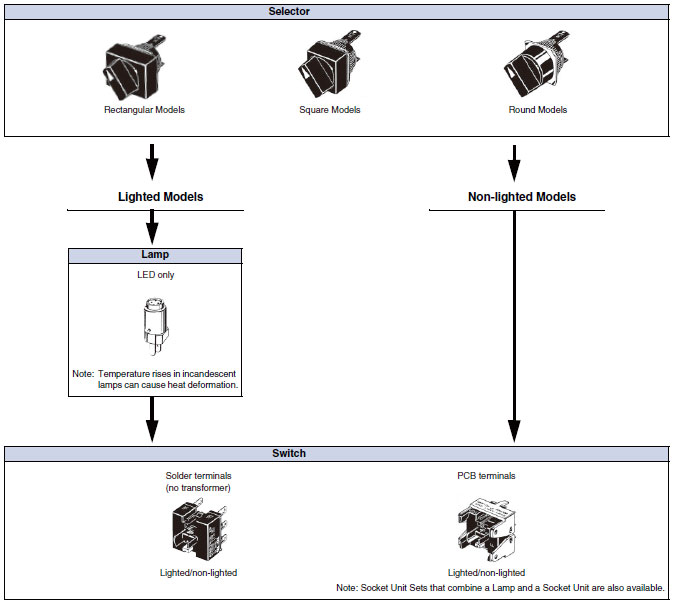

The model numbers used to order sets of Units are given in the following tables. One set comprises the Selector, Lamp (lighted models only), and Switch.

Solder Terminals

Rectangular

No. of notches	Output	Reset method		Lighting method	Model
2 notches	SPDT	Manual		LED	A165W-J2M[]-24D-1
				Non-lighted	A165S-J2M-1
		Automaticl		LED	A165W-J2A[]-24D-1
				Non-lighted	A165S-J2A-1
	DPDT	Manual		LED	A165W-J2M[]-24D-2
				Non-lighted	A165S-J2M-2
		Automaticl		LED	A165W-J2A[]-24D-2
				Non-lighted	A165S-J2A-2
3 notches	DPDT	Manual		LED	A165W-J3M[]-24D-2
				Non-lighted	A165S-J3M-2

Note: Enter the desired color symbol for the Selector in []: R (red); Y (yellow); G (green). The Selector for non-lighted models is black.

Square

No. of notches	Output	Reset method		Lighting method	Model
2 notches	SPDT	Manual		LED	A165W-A2M[]-24D-1
				Non-lighted	A165S-A2M-1
		Automaticl		LED	A165W-A2A[]-24D-1
				Non-lighted	A165S-A2A-1
	DPDT	Manual		LED	A165W-A2M[]-24D-2
				Non-lighted	A165S-A2M-2
		Automaticl		LED	A165W-A2A[]-24D-2
				Non-lighted	A165S-A2A-2
3 notches	DPDT	Manual		LED	A165W-A3M[]-24D-2
				Non-lighted	A165S-A3M-2

Note: Enter the desired color symbol for the Selector in []: R (red); Y (yellow); G (green). The Selector for non-lighted models is black.

Round

No. of notches	Output	Reset method		Lighting method	Model
2 notches	SPDT	Manual		LED	A165W-T2M[]-24D-1
				Non-lighted	A165S-T2M-1
		Automaticl		LED	A165W-T2A[]-24D-1
				Non-lighted	A165S-T2A-1
	DPDT	Manual		LED	A165W-T2M[]-24D-2
				Non-lighted	A165S-T2M-2
		Automaticl		LED	A165W-T2A[]-24D-2
				Non-lighted	A165S-T2A-2
3 notches	DPDT	Manual		LED	A165W-T3M[]-24D-2
				Non-lighted	A165S-T3M-2

Note: Enter the desired color symbol for the Selector in []: R (red); Y (yellow); G (green). The Selector for non-lighted models is black.

Ordering Individually

Selectors, Lamps, and Switches (Sockets) can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.

Selectors (Oil-resistant IP65 Models Only)

Appearance	Number of notches	Reset method		Lighting method	Model	Selector color symbol
Rectangular (A165[]-J)	2 notches	Manual		LED	A165W-J2M[]	Enter the desired color symbol for the Selector in[] . R (red), Y (yellow), G (green)
				Non-lighted	A165S-J2M
		Automatic		LED	A165W-J2A[]
				Non-lighted	A165S-J2A
	3 notches	Manual		LED	A165W-J3M[]
				Non-lighted	A165S-J3M
		Fully automatic		LED	A165W-J3A[]
				Non-lighted	A165S-J3A
Square (A165[] -A)	2 notches	Manual		LED	A165W-A2M[]	Enter the desired color symbol for the Selector in[] . R (red), Y (yellow), G (green)
				Non-lighted	A165S-A2M
		Automatic		LED	A165W-A2A[]
				Non-lighted	A165S-A2A
	3 notches	Manual		LED	A165W-A3M[]
				Non-lighted	A165S-A3M
		Fully automatic		LED	A165W-A3A[]
				Non-lighted	A165S-A3A
Round (A165[] -T)	2 notches	Manual		LED	A165W-T2M[]	Enter the desired color symbol for the Selector in[] . R (red), Y (yellow), G (green)
				Non-lighted	A165S-T2M
		Automatic		LED	A165W-T2A[]
				Non-lighted	A165S-T2A
	3 notches	Manual		LED	A165W-T3M[]
				Non-lighted	A165S-T3M
		Fully automatic		LED	A165W-T3A[]
				Non-lighted	A165S-T3A

Note: The selector for non-lighted models is black.

Sets

Select an Operation Unit and a Socket Unit Set (Lamp and Socket Unit).

Socket Unit Set (Sets include a Socket Unit and a Lamp.)

Appearance	Number of notches	Classification			Model
	2 notches	SPDT	24 V	Solder terminals	A16W-2N[]-24D-1
		DPDT			A16W-2N[]-24D-2
	3 notches	DPDT			A16W-3N[]-24D-2

Socket Unit Set with Voltage Reduction Unit (Solder Terminal)

Appearance	Classification			Operating voltage	Model
	Standard loads and microloads	2 notches	SPDT	100/110 VAC/VDC	A16L-[]-T1-1
		2 notches	DPDT		A16L-[]-T1-2
		3 notches			A16W-3N[]-T1-2

Note: The LED has a 24-VAC/VDC circuit built in.

Insert one of the following letters into the box ([]).

Screw-less Clamp Connector Socket Unit Set

Appearance	Classification					Model	Remarks
	Standard loads and microloads	2 notches DPDT	Non-lighted			A16-2S	Used for Pushbutton Switches and Knob-type Selector Switches.
			Lighted	No voltage-reduction lighting		A16L-△-[]-2S
				Voltage-reduction lighting	100/110 VAC/VDC	A16L-△-T1-2S
					200/220 VAC/VDC	A16L-△-T2-2S
		3 notches DPDT	Non-lighted			A16S-3N-2LS
			Lighted	No voltage-reduction lighting		A16W-3N△-[]-2S
				Voltage-reduction lighting	100/110 VAC/VDC	A16W-3N-△-T1-2S
					200/220 VAC/VDC	A16W-3N-△-T2-2S

Note: The 100-V models and 200-V models have a 24-VAC/VDC circuit built in.

Insert symbols in Δ and [].

Δ

Ordering Individually

Switches

Appearance	Classification					Model
	Lighted	Socket (without voltage-reduction lighting)	2 notches	SPDT	Solder terminal	A16S-2N-1L
				DPDT		A16S-2N-2L
			3 notches	DPDT		A16S-3N-2L
	Non-lighted		2 notches	SPDT		A16S-2N-1
				DPDT		A16S-2N-2
			3 notches	DPDT		A16S-3N-2
	Lighted		2 notches	SPDT	PCB terminal	A16S-2N-1LP
				DPDT		A16S-2N-2LP
	Non-lighted			SPDT		A16S-2N-1P
				DPDT		A16S-2N-2P

Lamps

Operating voltage	Super-bright
Light color	5 VDC	12 VDC	24 VDC
Red	A16-5DSR	A16-12DSR	A16-24DSR
Yellow	A16-5DSY	A16-12DSY	A16-24DSY
Green	A16-5DSG	A16-12DSG	A16-24DSG

Accessories and Tools (Optional)

Accessories

Name	Appearance	Classification	Model	Remarks
Panel Plugs		Rectangular	A16ZJ-3003	Used for covering the panel cutouts for future panel expansion. Degree of protection: IP40
		Square	A16ZA-3003
		Round	A16ZT-3003

Tools

Name	Appearance	Model	Applicable types					Remarks
			Pushbutton Switch	Knob-type Selector Switch	Key-type Selector Switch	Emergency Stop Switch	Indicator
Screw Fitting		A16Z-3004	Yes	Yes	Yes	Yes	Yes	Convenient for ganged installation. Tighten to a torque of 0.39 N・m min.
Extractor		A16Z-5080	Yes	Yes	Yes	Yes	Yes	Convenient for extracting the Switches and Lamps.
