XS5

XS5W Connectors Connected to Cable, Socket and Plug on Cable Ends

Straight/straight

Straight/angled

Wiring Diagram for 4 Cores

Note:The overmolding on the Standard Cable (XS5W-D42[]-[]81-A) and the Oil-resistant Polyurethane Cable (XS5W-D42[]-[]81-P) is black, and the overmolding on the Vibration-proof Robot Cable (XS5W-D42[]-[]81-F) is warm gray.

XS5F Connector Connected to Cable, Socket on One Cable End

Straight

Angled

Note:The overmolding on the Standard Cable (XS5F-D42[]-[]80-A) and the Oil-resistant Polyurethane Cable (XS5F-D42[]-[]80-P) is black, and the overmolding on the Vibration-proof Robot Cable (XS5F-D42[]-[]80-F) is warm gray.

XS5H Connector Connected to Cable, Plug on One Cable End

Straight

Angled

Note:The overmolding on the Standard Cable (XS5H-D42[]-[]80-A) and the Oil-resistant Polyurethane Cable (XS5H-D42[]-[]80-P) is black, and the overmolding on the Vibration-proof Robot Cable (XS5H-D42[]-[]80-F) is warm gray.

XS5G Assembly Connector Plugs

XS5G-D4C[] (Crimping Model)
XS5G-D42[] (Soldering Model)
Straight Connectors

XS5G-D[]S[] (Screw-on Connectors, Applicable Cable Outer Diameter: 7 or 8 mm)
Straight Connectors

XS5G-D[]S[] (Screw-on Connectors, Applicable Cable Outer Diameter: 3, 4, or 6 mm)
Straight Connectors

XS2G-D[]S[] (Screw-on Connectors)
Angled Connectors

XS5U (Crimping Pin for XS5G)

XS5U-312[]
Plug Pin

*A special tool must be used for crimping. For details, refer to Data Sheet.

XS5C Assembly Connector Sockets

XS5C-D4C[] (Crimping Model)
XS5C-D42[] (Soldering Model)
Straight Connectors

XS5C-D[]S[] (Screw-on Connectors, Applicable Cable Outer Diameter: 7 or 8 mm)
Straight Connectors

XS5C-D[]S[] (Screw-on Connectors, Applicable Cable Outer Diameter: 3, 4, or 6 mm)
Straight Connectors

XS5C-D[]S[] (Screw-on Connectors)
Angled Connectors

XS5U (Crimping Pin for XS5C)

XS5U-222[]
Socket Pin

*A special tool must be used for crimping. For details, refer to Data Sheet.

XS5R Y-Joint Plug/Socket Connectors

XS5R-D426-[]11-F
Connectors on Both Ends (Y-Joint Plug/Socket)

XS5R-D426-[]10-F
Connectors on One Cable End (Y-Joint Socket)

XS5R-D426-[]
Y-Joint Plug/Socket without Cable

XS5P Panel-mounting Sockets

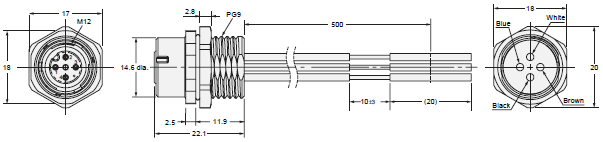

XS5P-D426-5
Panel-mounting Sockets with Rear Locks

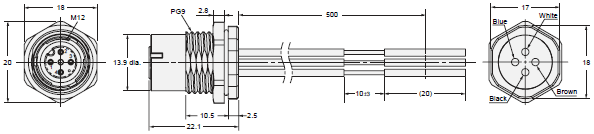

XS5P-D427-5
Panel-mounting Sockets with Front Locks

Panel Cutout

Note:

1.The panel cutout dimension is the same for Front-locking and Rearlocking Sockets.

2.Rotational positioning is not possible for connector rotation.

XS5M Panel-mounting Plugs

XS5M-D426-5
Panel-mounting Plugs with Rear Locks

XS5M-D427-5
Panel-mounting Plugs with Front Locks

Panel Cutout

Note:

1.The panel cutout dimension is the same for Front-locking and Rearlocking Sockets.

2.Rotational positioning is not possible for connector rotation.
