Advanced Digital Temperature Controller
E5AN-H/E5EN-H(96 x 96 mm and 48 x 96 mm)
A New High-performance Controller: High Resolution, High Speed, and High Input Accuracy. Logic Operations and Preventive Maintenance Function. Plus Infrared Port on Front Panel.
Data Sheet (1558KB)
Quick links OMRON IA Temperature Controllers in your country.
-
- Middle East
-
Please contact OMRON Europe B.V. in Netherlands.
High-resolution display with 5 digits/0.01xC display.
High-speed sampling cycle of 60 ms.
High Accuracy
Thermocouple/Pt input: ±0.1% of PV
Analog input: ±0.1% FS
Universal inputs on all models (thermocouple, PT, or analog input) to handle various sensors with one Controller. Models also available with Remote SP.
A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV.
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter.
Model available with position-proportional control

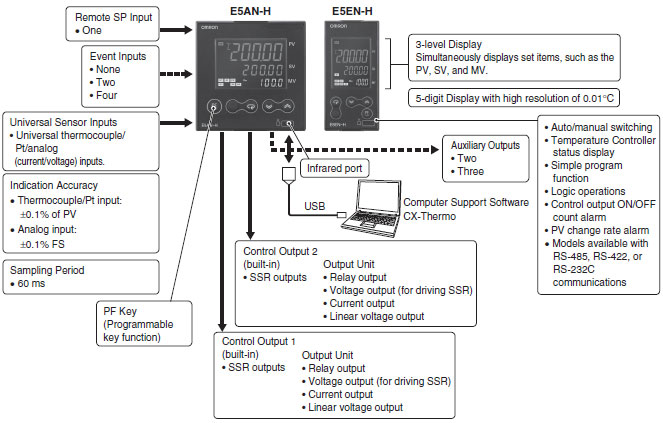

Main I/O Functions
