CP1H

CP series CP1H CPU Unit

CP1H

4 Axis Position Control and Comprehensive Programmable Controller

Caution: All units are in millimeters unless otherwise indicated.

CPU Units

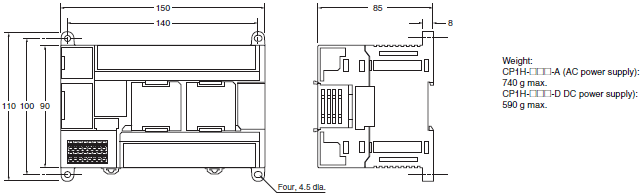

CP1H CPU Units (X/XA/Y Types)

CP1H Dimensions 2

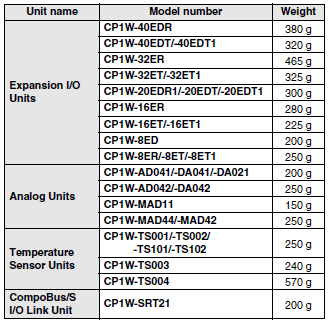

Expansion Units and Expansion I/O Units

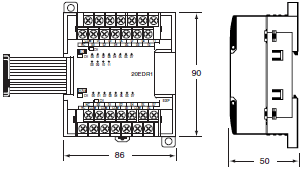

CP1W-20ED[][], CP1W-16E[][],
CP1W-AD04[], CP1W-DA021/04[],
CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1H Dimensions 4

CP1W-8E[][]
CP1W-SRT21

CP1H Dimensions 5

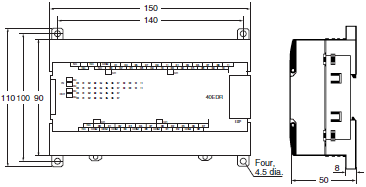

CP1W-40ED[]
CP1W-32E[][]
CP1W-TS004

CP1H Dimensions 6
CP1H Dimensions 7

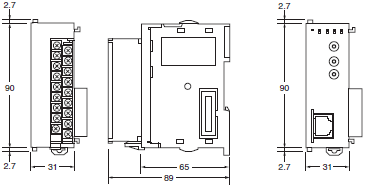

CJ-series Special I/O Units and CPU Bus Units

CP1H Dimensions 8

Note: It takes an example about the size.

CJ Unit Adaptor

CP1W-EXT01

CP1H Dimensions 10

CP1H

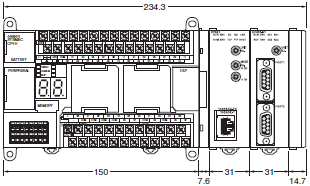

Example: Two CJ-series Units (31-mm widths) Connected Using a CJ Unit Adapter

CP1H Dimensions 11
