CJ1W-OC / OA / OD

CJ-series Output Units

CJ1W-OC / OA / OD

A Wide Range of Basic Output Units for High Speed Output and Different Applications. This unit is available for CJ/NJ controller.

Caution: All units are in millimeters unless otherwise indicated.

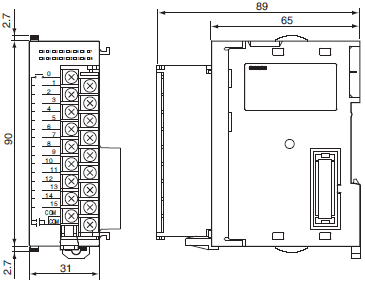

8-point/16-point Units (18-point Terminal Blocks)

CJ1W-OC201/OC211/OA201/OD201/OD202/OD203/OD204/OD211/OD213 /OD212

CJ1W-OC / OA / OD Dimensions 2

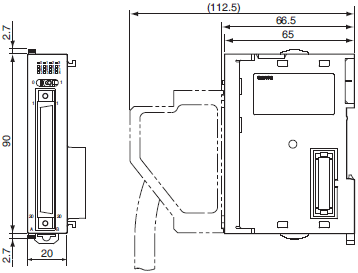

32-point Unit (Output Units)

With Fujitsu-Compatible Connector (40-pin × 1)
CJ1W-OD231

CJ1W-OC / OA / OD Dimensions 4

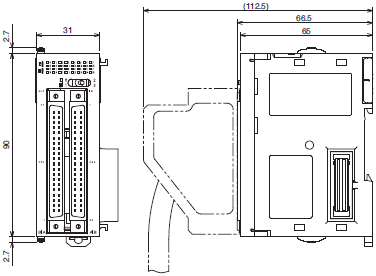

With MIL Connector (40-pin × 1)
CJ1W-OD232/OD233/OD234

CJ1W-OC / OA / OD Dimensions 5

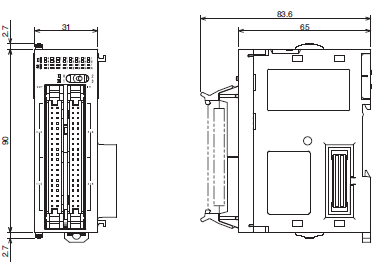

64-point Units (Output Units)

With Fujitsu-Compatible Connector (40-pin × 2)
CJ1W-OD261

CJ1W-OC / OA / OD Dimensions 7

With MIL Connector (40-pin × 2)
CJ1W-OD262/OD263

CJ1W-OC / OA / OD Dimensions 8
