H5S

Digital Time Switch

H5S

Easier, More Convenient Time Switches, with New 4-circuit Output and Yearly Models in Addition to 2-circuit Weekly Models

Caution: All units are in millimeters unless otherwise indicated.

Digital Time Switch

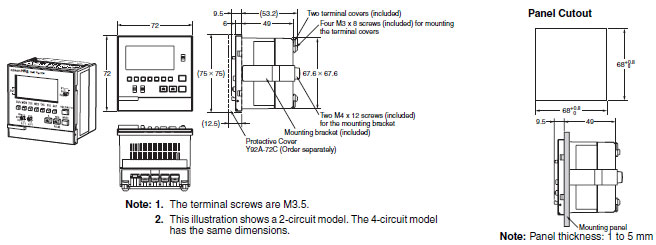

Flush Mounting ModelH5S-[]A[]/-[]B[]

H5S Dimensions 2

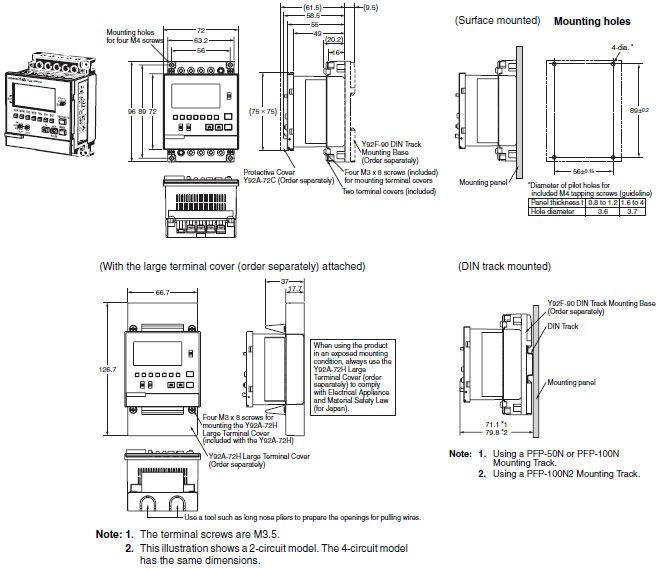

Surface Mounting ModelH5S-[]FA[]/-[]FB[]

H5S Dimensions 3

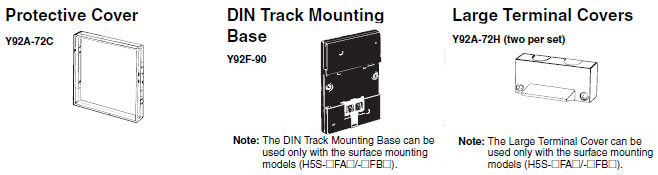

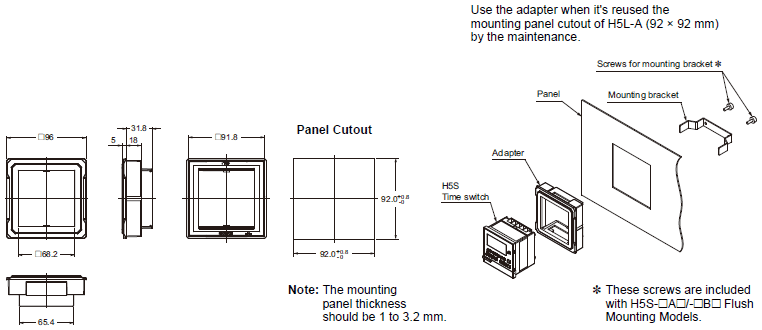

Accessories (Order Separately)

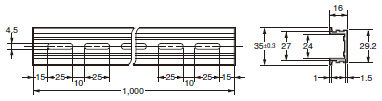

H5S Dimensions 5 H5S_Dim1
