GX-[]D16[]8 / []D32[]8

Digital I/O Terminal e-CON Connector Type

GX-[]D16[]8 / []D32[]8

Easy wiring using industry standard e-CON connectors. Special wiring tool is not necessary.

Caution: All units are in millimeters unless otherwise indicated.

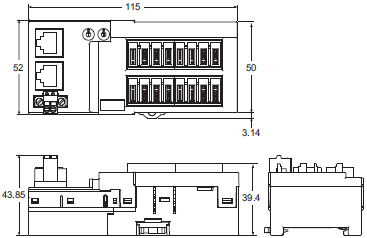

GX-ID1618/ID1628

GX-[]D16[]8 / []D32[]8 Dimensions 1

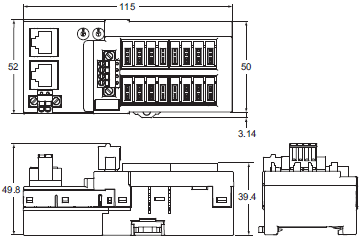

GX-OD1618/OD1628
GX-MD1618/MD1628

GX-[]D16[]8 / []D32[]8 Dimensions 2

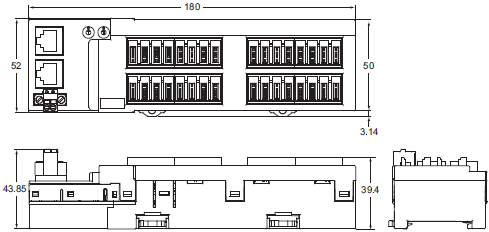

GX-ID3218/ID3228

GX-[]D16[]8 / []D32[]8 Dimensions 3

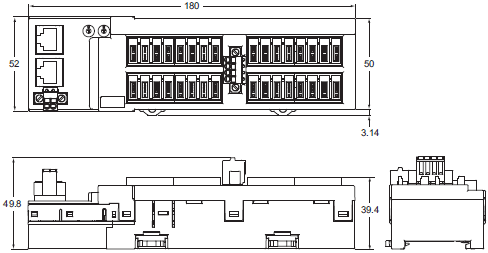

GX-OD3218/OD3228

GX-[]D16[]8 / []D32[]8 Dimensions 4

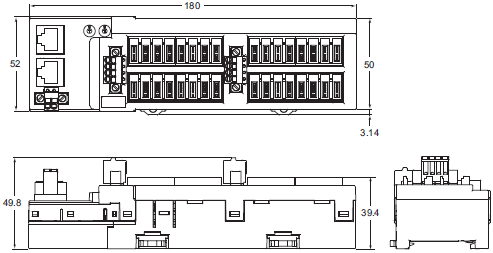

GX-MD3218/MD3228

GX-[]D16[]8 / []D32[]8 Dimensions 5
