ZS Series

Smart Sensors 2D CMOS Laser Type

ZS Series

High-precision Displacement Measurement Sensors Bringing Smart Sensors into New Fields.

Caution: All units are in millimeters unless otherwise indicated.

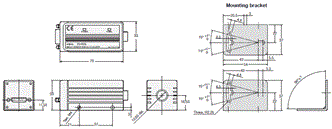

Sensor Controllers

ZS-HLDC[]1/LDC[]1

ZS Series Dimensions 2

Multi-Controllers

ZS-MDC[]1

ZS Series Dimensions 4

Data Storage Units

ZS-DSU[]1

ZS Series Dimensions 6

Sensor Heads

ZS-HLDS2T

ZS Series Dimensions 8

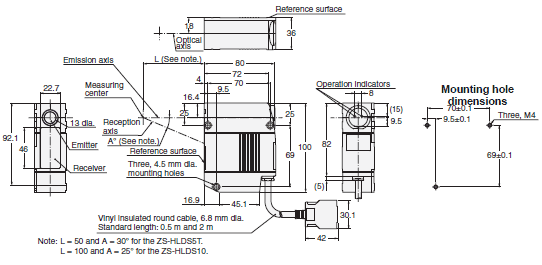

ZS-HLDS5T/HLDS10

ZS Series Dimensions 9

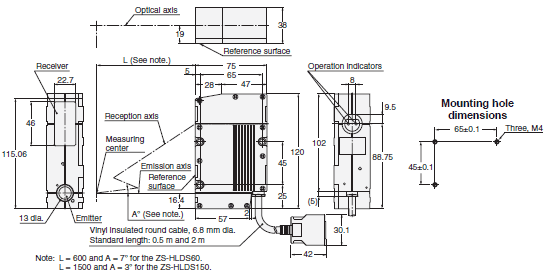

ZS-HLDS60/HLDS150

ZS Series Dimensions 10

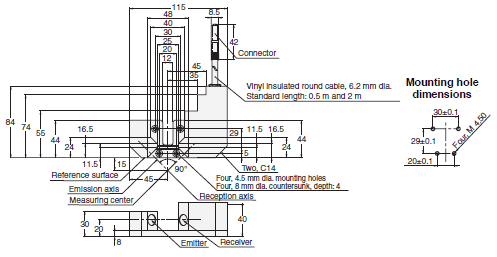

ZS-LD10GT

ZS Series Dimensions 11

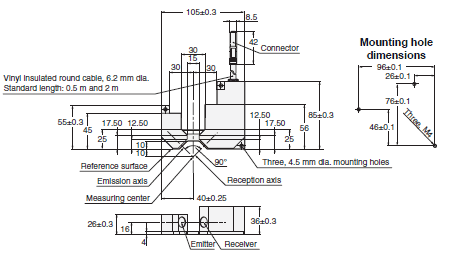

ZS-LD15GT

ZS Series Dimensions 12

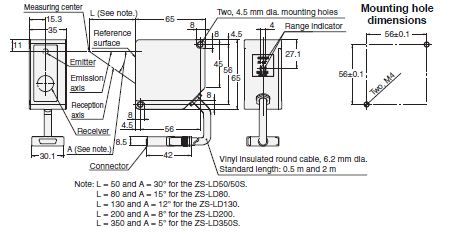

ZS-LD50/LD50S/LD80/LD130/LD200/LD350S

ZS Series Dimensions 13

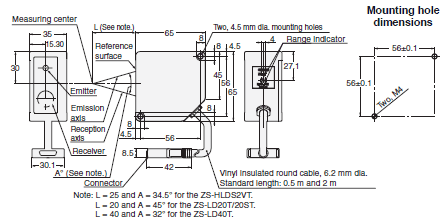

ZS-HLDS2VT/LD20T/LD20ST/LD40T

ZS Series Dimensions 14

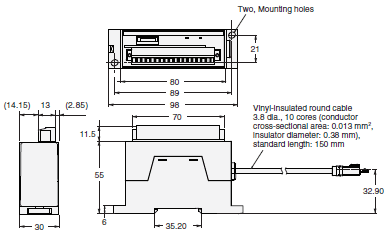

Realtime Parallel Output Unit

ZG-RPD[]1

ZS Series Dimensions 16

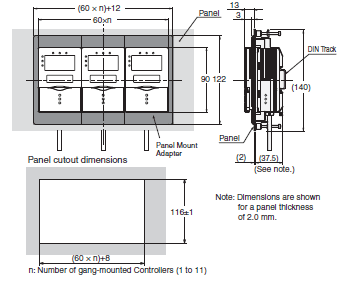

Panel Mount Adapter

ZS-XPM1/XPM2 (Dimensions for Panel Mounting)

ZS Series Dimensions 18

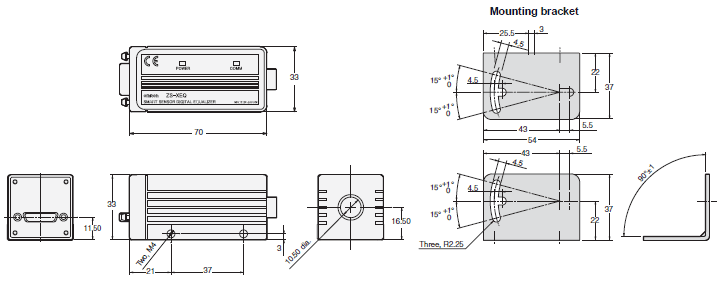

Digital Equalizer

ZS-XEQ

ZS Series Dimensions 20
